For FS909G5CSD & FS909G5SSD For FS607G4DS, FS607G4AS, FS605G4DS & FS605G4AS

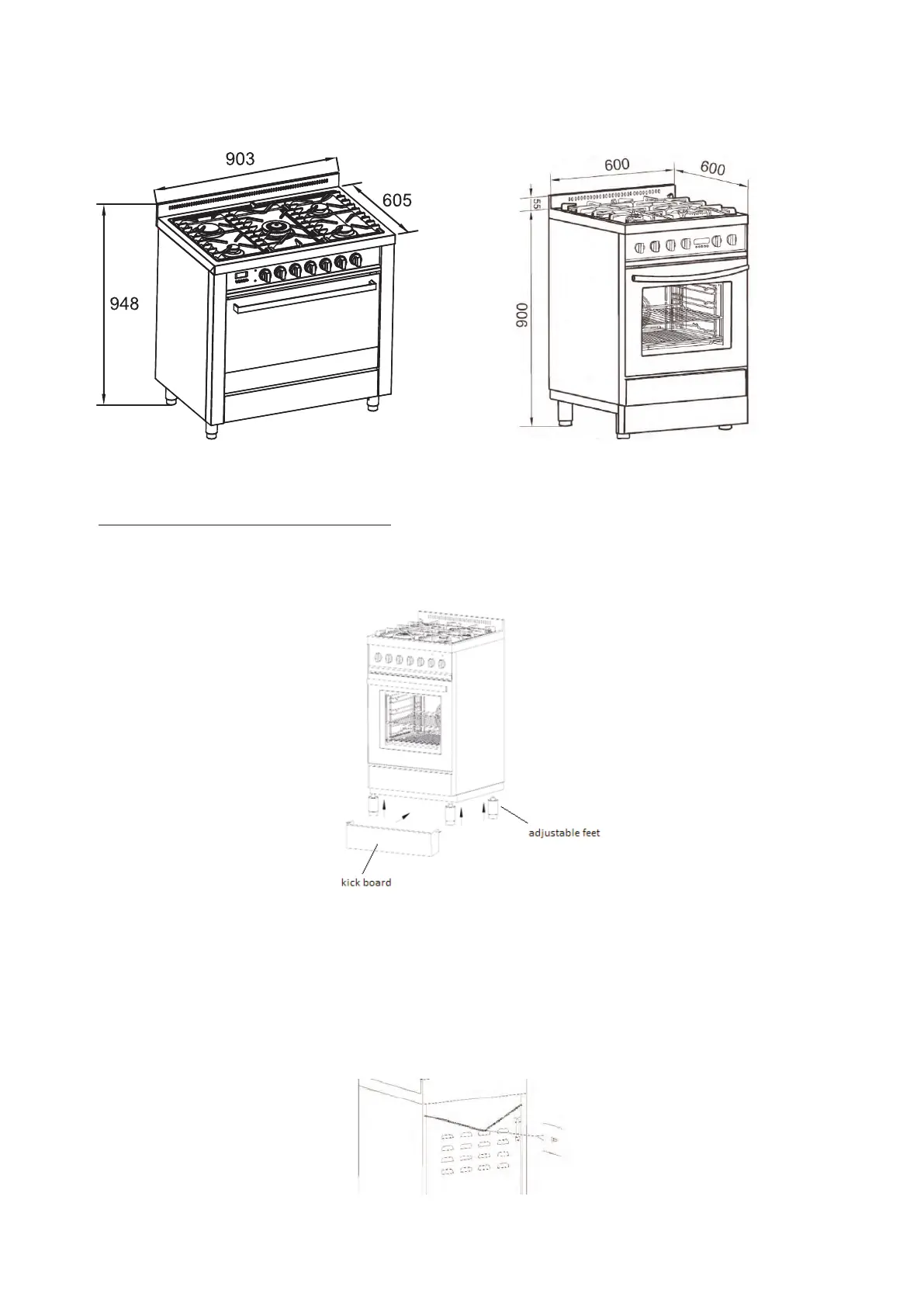

Installation of the Freestanding Unit
Remove all protective plastic film (if there is any). Install the levelling feet provided and
adjust the cooker to a suitable height then you may cover the feet with the kick board if
supplied.
*900mm units are without kick board
Anti-tilt chain is provided and meant to be installed to prevent the appliance from tilting
forward and damage to gas pipe. Fix the hook panel firmly on the wall at a suitable height
and place the chain over the hook.
After that, make sure the chain is taut and the cooker will not tilt forward.
WARNING: In order to prevent tipping of the appliance, this stabilizing means must be
installed. Refer to the instructions for installation.
