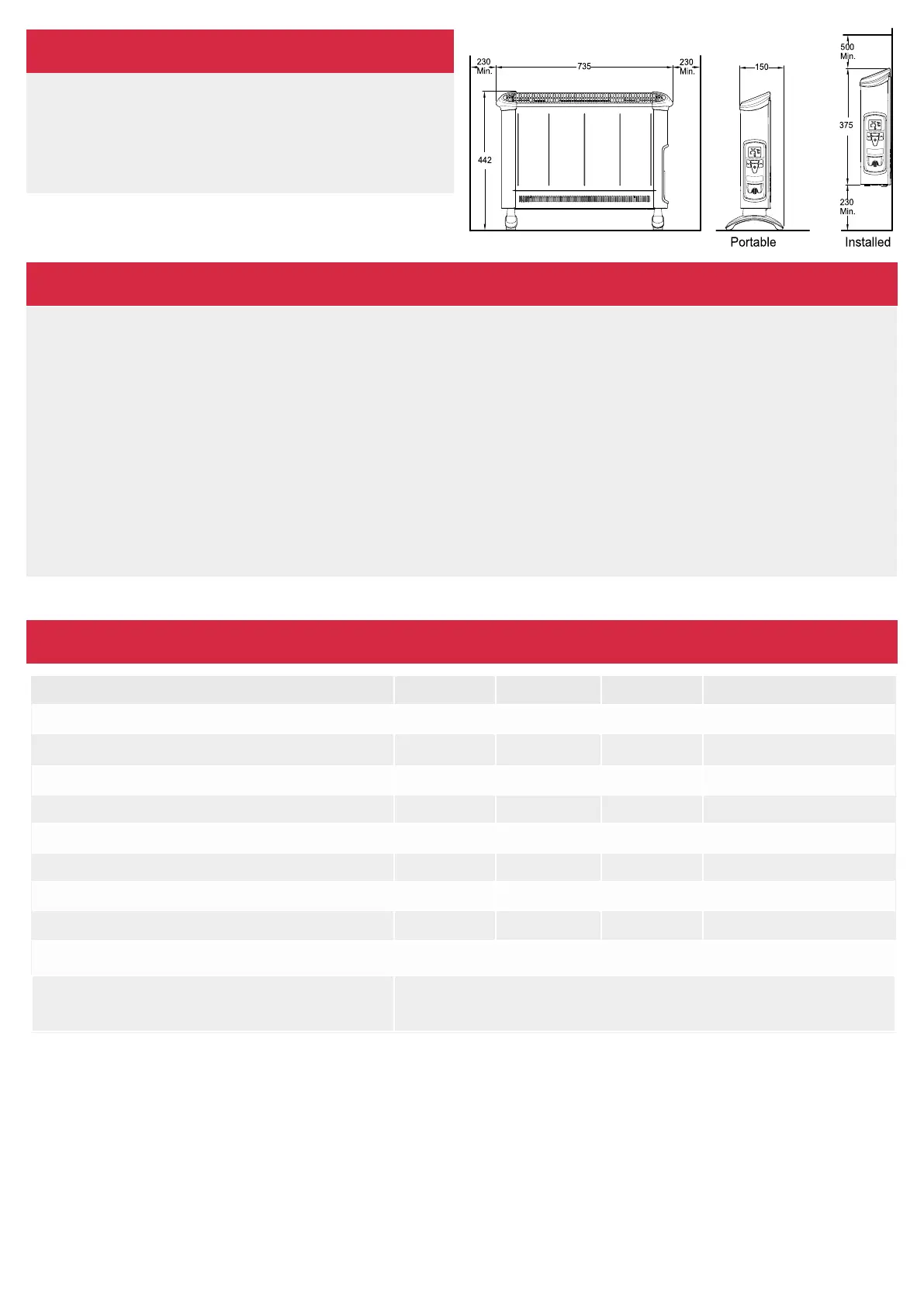

Dimensions (millimetres)
Model Specication
403TSFTiE7: 3.0kW convector heater with electronic controls and
turbo boost
Electrical Connection
WARNING: THIS APPLIANCE MUST BE EARTHED
The use of an extension lead or multi-plug adaptor is not adviced when connecting this product to the mains. Connection through these
deviceS could lead to risk of overloading, overheating and even re at the extention lead or adaptor due to inadequate connection quality
This heater must be used on an AC (~) supply only and the voltage marked on the heater must correspond to the supply voltage. This heater
is tted with a rewirable plug incorporating a 13 amp fuse. In the event of replacing the fuse in the plug supplied, a 13 amp fuse approved by
ASTA to BS 1362 must be used. If any other type of plug is used, a 15 amp fuse must be tted in the plug, the adaptor, or at the distribution
board.
IMPORTANT: If the plug is not suitable for your socket, the 13 amp plug should be removed. Before wiring the appropriate plug, please note
that the wires in this mains lead are coloured in accordance with the following code:
GREEN AND YELLOW: EARTH
BLUE: NEUTRAL
BROWN: LIVE
Connect the GREEN AND YELLOW wire to the terminal marked ‘E’ or by the earth symbol, or coloured GREEN or GREEN AND YELLOW.
Connect the BROWN wire to the terminal marked ‘L’ or coloured RED. Connect the BLUE wire to the terminal marked ‘N’ or coloured BLACK
Technical Data
Model Identier(s) 403TSFTIE7
Heat output (kW)
Nominal heat output Pnom 3 kW
Minimum heat output (indicative) Pmin 1.95 kW
Maximum continuous heat output Pmax,C 3 kW
Auxillary electricity Consumption
At nominal heat ourput elmax 0.00 kW
At minimum heat output elmmin 0.00 kW
In standby mode elSB 0.00 kW
Tubo Fan Y
Contact details Glen Dimplex Heating and Ventilation, Millbrook House, Grange Drive,
Hedge End, Southampton, SO30 2DF

Dimplex 403TSFTIE7 Specifications

General

Brand	Dimplex
Model	403TSFTIE7
Category	Heater
Language	English
