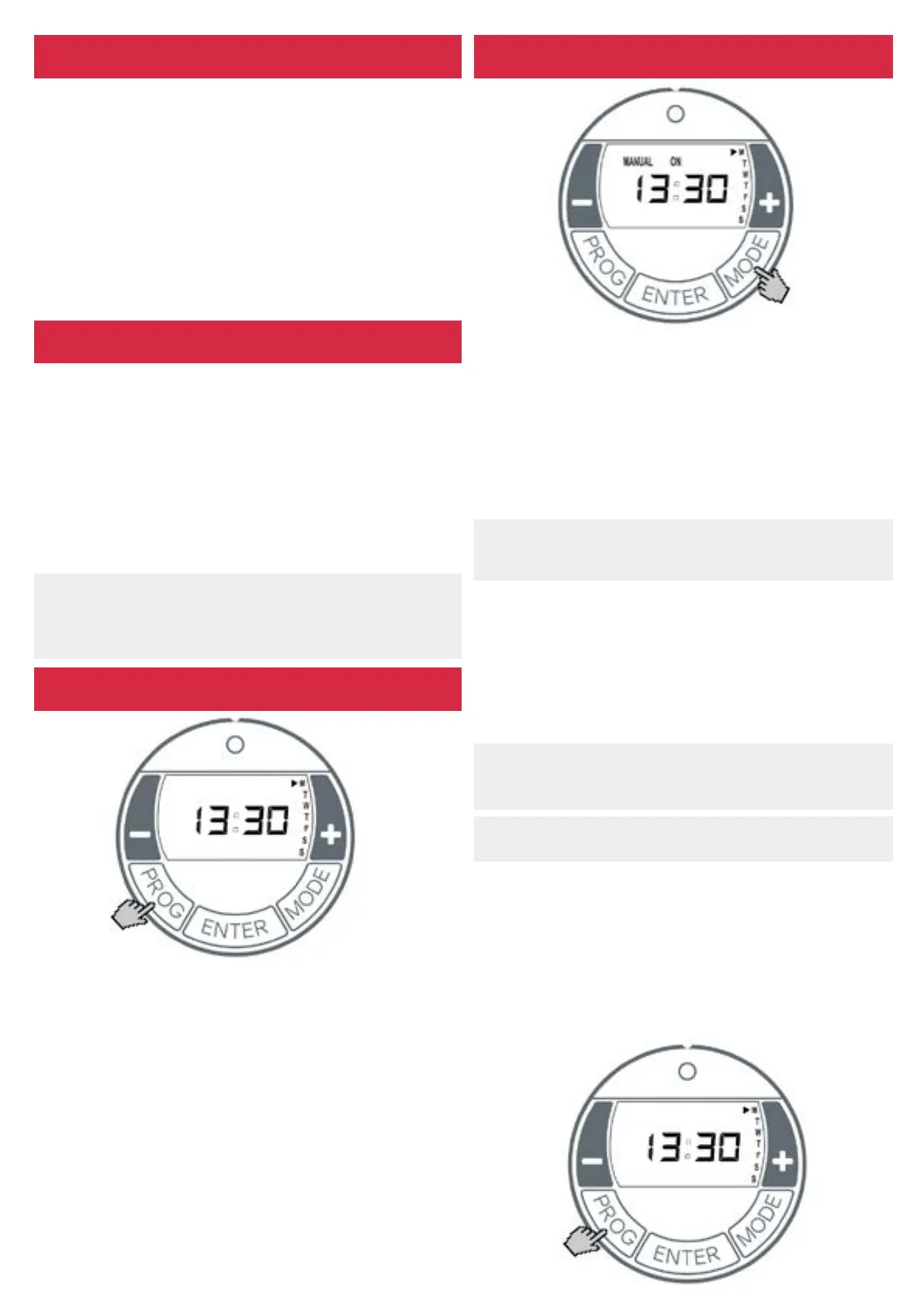

Setting the Time and Week Day
The time and day are set with the following steps:
• Press and hold the PROG key for three seconds. The clock symbol
appears. The hours and display ashes.
• Use the +/- keys to set the hours. Press the ENTER key. The minutes
diplay ashes
• Use the +/- keys to set the minutes. Press the ENTER key. The
weekday ashes.
• Use the +/- keys to set the day of the week. Press the ENTER key.
The CLOCK symbol disappears. Setting is complete
Selecting the Operating Mode
Pressing the MODE key switches the operating mode between MANUAL
ON, MANUAL OFF and AUTO.
MANUAL ON
• Manual heating operation switched on
• Display alternates between room temperature setting and current
time
• Room temperature is set with +/-
MANUAL OFF
• Heating operation switched o
• The current time is displayed
• Room temperature cannot be set
NOTE: In MANUAL OFF operating mode, frost protection takes
place. If the room temperature is 5°C or less, the heating
device is switched on automatically
AUTO
• Automatic mode (week program) activated
•
Display alternates between room temperature setting and current
time
• Heating operation takes place in the specied time blocks for
ON and OFF
• Room temperature is set with +/-.
No time blocks are specied at the factory. These must be dened by
the user as required
NOTE: In time block OFF, frost protection is set at the factory. If
the room temperature is 5C or less the heating device is
switched on automatically
MODE
• Automatic mode (week program)
• Manual operation ON
• Manual operation OFF
ENTER
• Save entry
PROG
• Week program, set clock
KEYS +/-
•
Used to navigate through the menu and to change the setting values
Key Functions
Operating Modes
Automatic Operation
Up to four heating program (ON/OFF) can be set for each weekday. A
room temperature can be specied for each heating program. AUTO
appears on the display.
Manual Operation
Manual specication of the room temperature. MANUAL ON or MANUAL
OFF appears on the display
Advance
Switch to the next program item in automatic mode. ADVANCE appears
on the display
NOTE: In manual operation (MANUAL ON), the room temperature
can be specied with the +/- keys. In automatic mode, the
room temperature setting is only carried out for the current
time program
NOTE: For extended operation, it is advisable to use the AUTO
operating mode to reduce the operating costs
Four time blocks are available per day. These can be adapted for each
weekday.
• Select AUTO operating mode by pressing the MODE button
• Press the PROG key. WEEKDAY display ashes.
Order from top to bottom:
M= Monday,
T= Tuesday,
W = Wednesday
T = Thursday
F= Friday
S = Saturday
S = Sunday
