3. Installation instructions
3.1 Positioning and xing the heat pump
• The heat pump must be xed onto a level, stable concrete plinth of minimum dimensions approx.
1000mm x 500mm.
• The concrete plinth must be able to withstand the unit’s weight of 110-140kg (depending on
model).
• A minimum distance of 50mm between the heat pump and the edge of the plinth is required on
all sides.
CAUTION: The minimum clearance distances around the heat pump are shown in gure 3; 300mm
at the rear for air ow, 500mm each side for service and at least 1000mm in front of the fan to avoid air
recirculation.

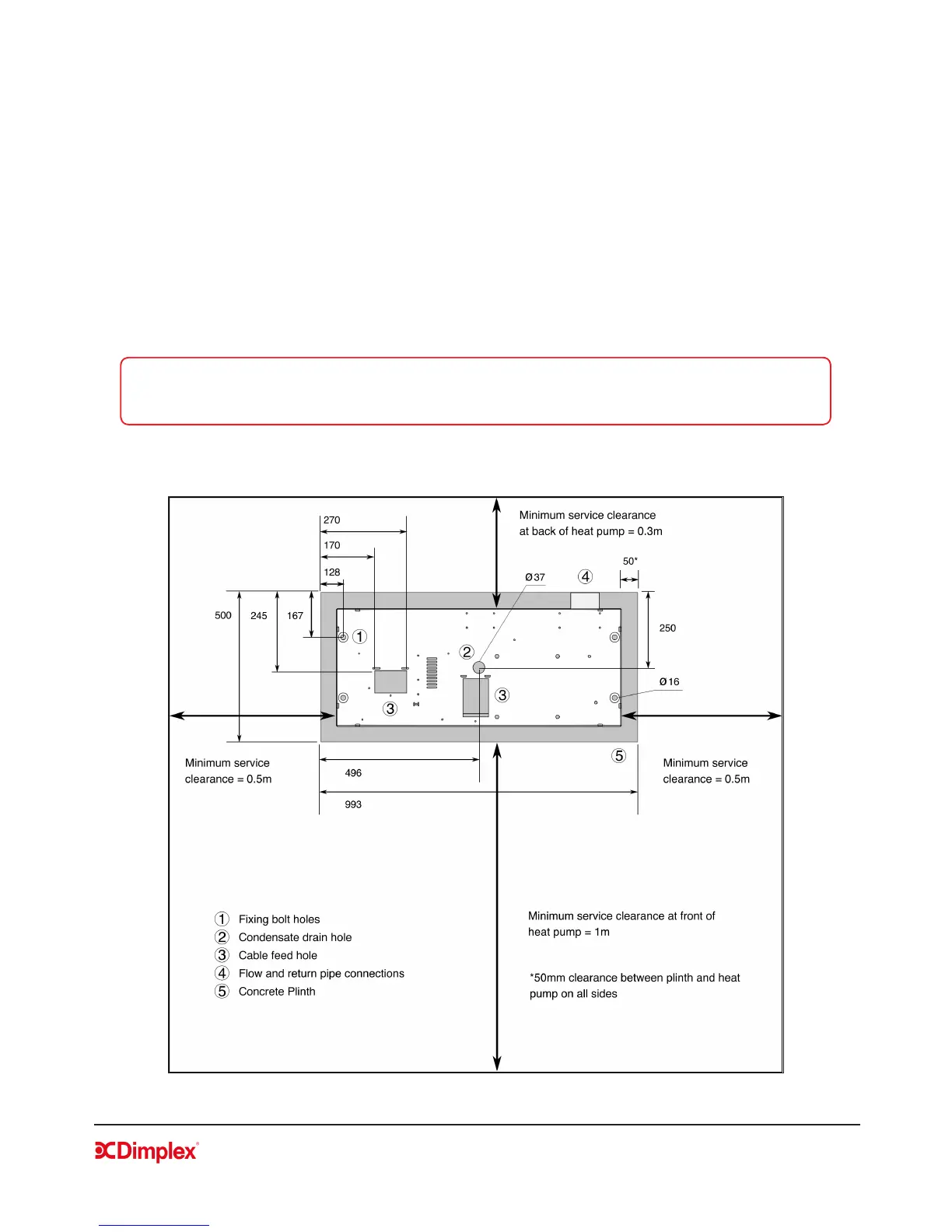

Figure 6: Required service and air ow clearance dimensions
