11

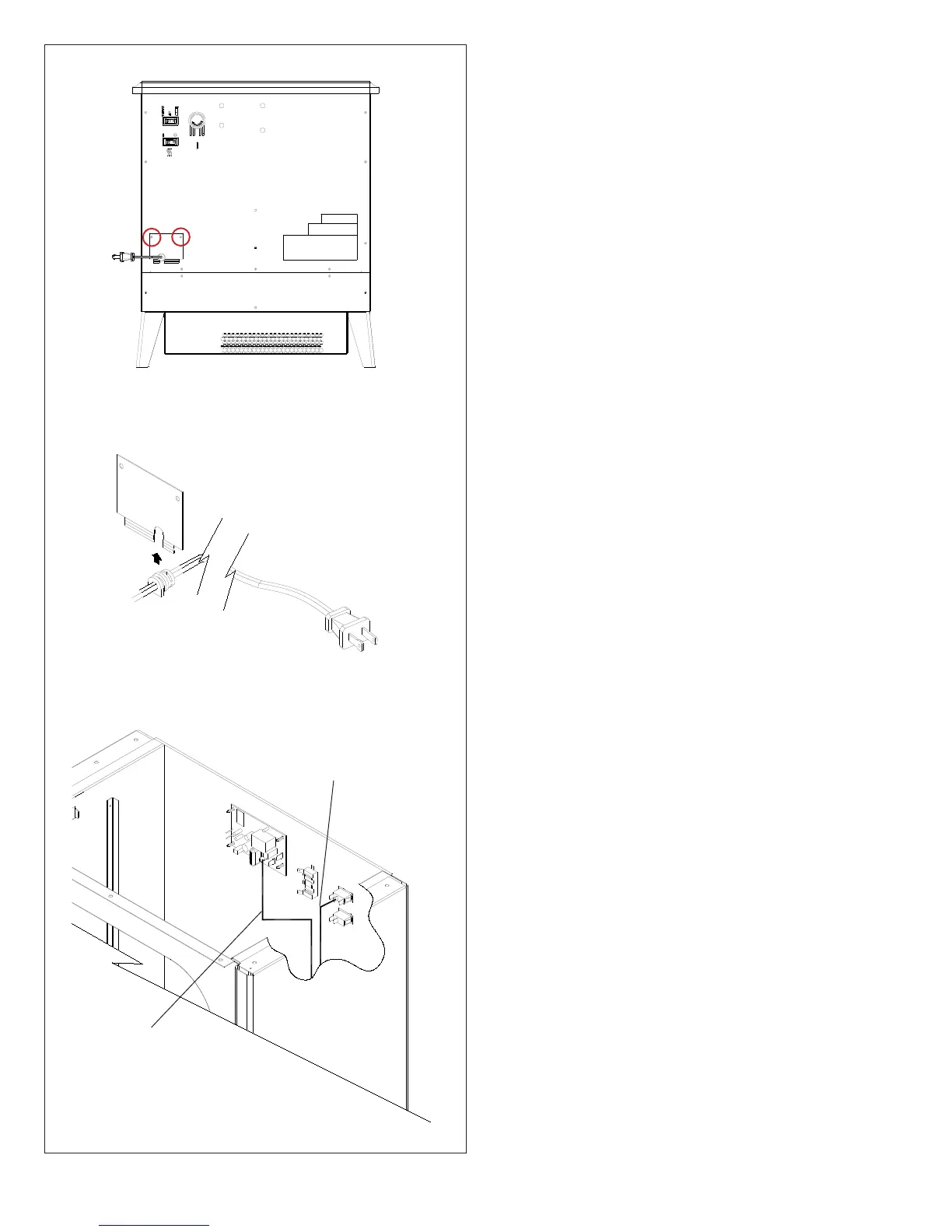

Figure 16
Screws to remove (2)
Figure 17
Figure 18
Ribbed edge to left
terminal of Remote
Control receiver
Smooth edge to center
terminal of 3 Position
ON/OFF Switch
left terminal of the Remote Control Receiver, the smooth
edged cord connects to the center terminal of the 3
Position Switch (Figure 18).
8. Disconnect both wire clips described above and pull old
Power Cord through stove and out back of stove.
9. Feed replacement Power Cord through access at back
of stove and connect wire clips to both Remote Control
Receiver and 3 Position Switch as shown in Figure 18.
10. Attach Access Panel to back of stove using screws
removed in step 5.
11. Follow steps 1 through 4 in revers order to reassemble
stove.
