Dimplex EWF-SS User Manual

5

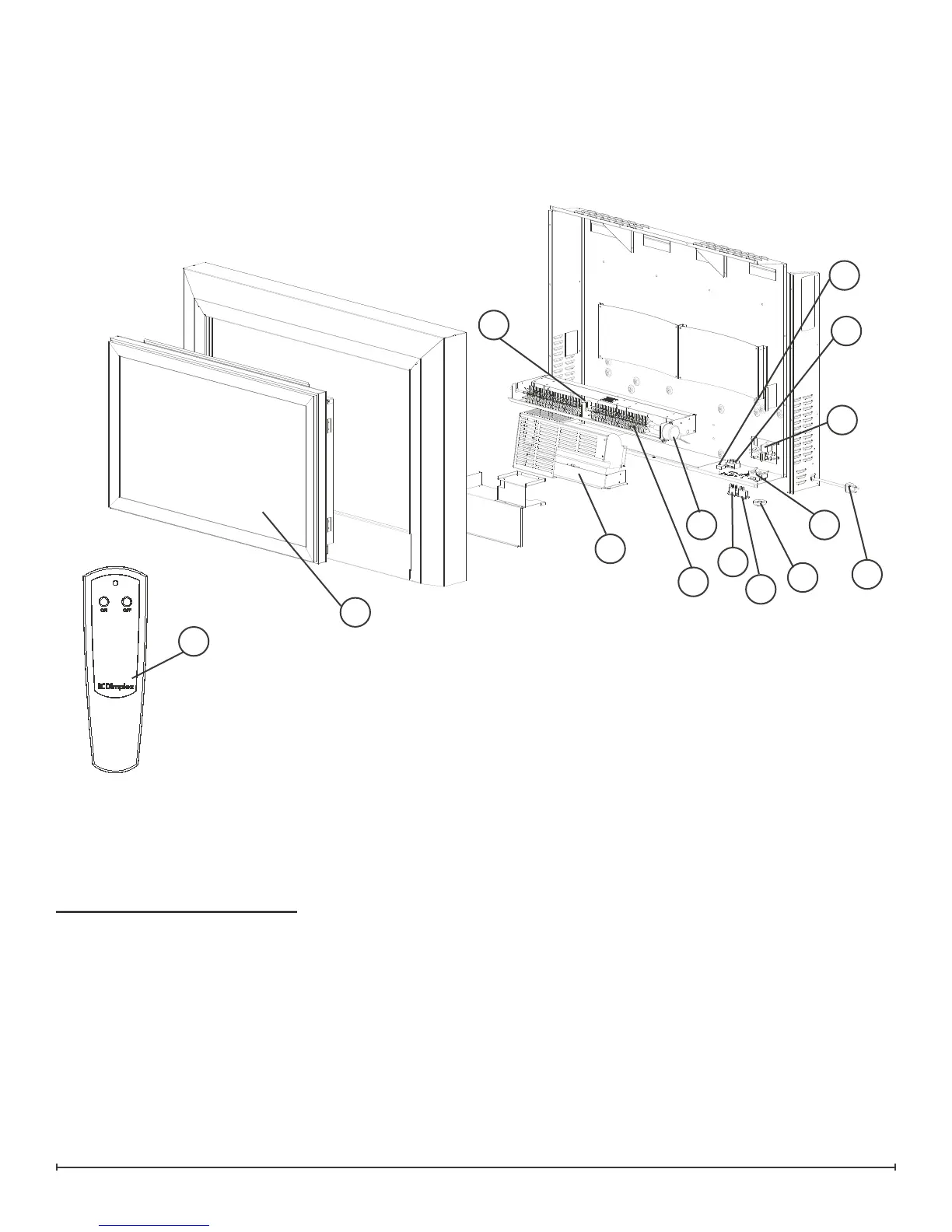

EXPLODED PARTS DIAGRAM
Replacement Parts List
12
6
1
2
3
4
13
10
11
13
8
14
9
Heater Assembly1. ..................2200490600RP
Glass Assembly2. . . . . . . . . . . . . . . . . . . 6904190200RP
Flicker Motor3. .....................2000210300RP
Flicker Assembly 4. . . . . . . . . . . . . . . . . . 5901070200RP
Cutout5. ..........................2300270400RP
Cord Set6. . . . . . . . . . . . . . . . . . . . . . . . . 4100190100RP
Lampholder Wire Assembly7. . . . . . . . . . 2500450100RP
Remote Receiver8. . . . . . . . . . . . . . . . . . 3000380200RP
3-Position Switch 9. .................2800071100RP
2-Position Switch10. . . . . . . . . . . . . . . . . . 2800070200RP
Thermostat11. . . . . . . . . . . . . . . . . . . . . . . 2300150100RP
Terminal Block12. ....................4000070100RP
Capacitor13. ........................2300030100RP
Remote Control14. ...................3000370500RP
Control Knob15. .....................8800620100RP
7

Dimplex EWF-SS Specifications

General

Brand	Dimplex
Model	EWF-SS
Category	Indoor Fireplace
Language	English
