– 7 –

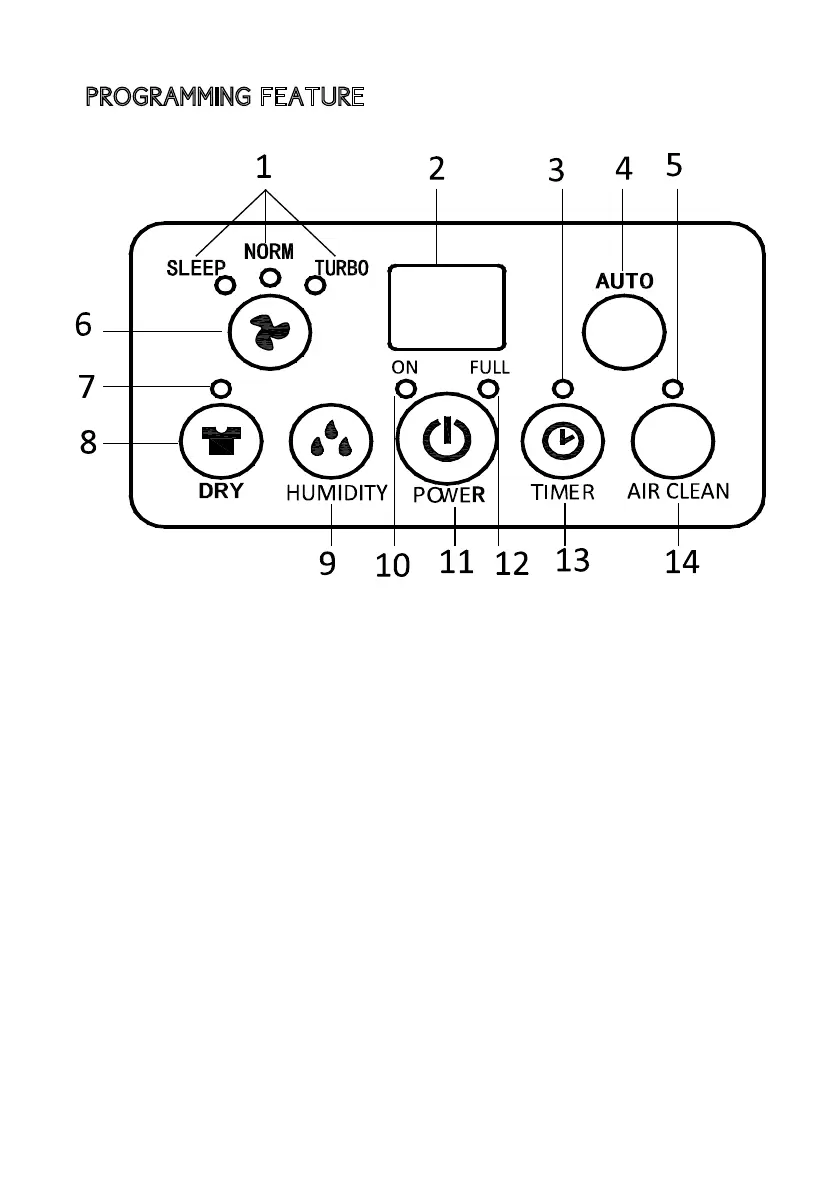

1. FAN SPEED Indicator
(Sleep, NORM, TURBO)
2. Humidity/Timer Display Window
3. TIMER Indicator
4. AUTO button
5. AIR CLEAN Indicator
6. FAN SPEED Button
7. DRY CLOTHES Indicator
8. DRY CLOTHES (TURBO) Button
9. Humidity Button
10. ON indicator (heat element
operation indicator)
11. Power (ON/OFF) Button
12. “Full Tank” indicator
13. TIMER button
14. AIR CLEAN Button
• POWER BUTTON: Press this button to start or turn off the machine.
• FAN SPEED BUTTON: There are 3 selections under this button:
• SLEEP (MUTE): the unit will run in low ventilation/low heat, thus, the unit is quieter.
And, if the ambient humidity is less than set humidity, it will run with fan (ventilation)
only, no heat. Note! In sleep mode, the humidity indicator in the front plate will
not light up.
PROGRAMMING FEATURE

8
Programming Feature
1. FANSPEEDIndicator(Sleep,
NORM,TURBO) 
2. Humidity/TimerDisplayWindow 
3. TIMERIndicator
4. AUTObutton 
5. AIRCLEANIndicator 
6. FANSPEEDButton 
7. DRYERIndicator  
8. DRY(TURBO)Button  
9. HumidityButton
10. ONindicator(heatelement
operationindicator) 
11. Power(ON/OFF)Button
12. “FullWater”indicator
13. TIMERbutton
14. AIRCLEANButton
FANSPEEDBUTTONThereare3selectionsunderthisbutton:
u SLEEP(MUTE):theunitwillruninlowventilation/lowheat,thus,theunitis
quieter.  And,iftheambienthumidityis<sethumidity,itwillrunwithfan
(ventilation)only,noheat.Note! In sleep mode, the humidity indicator in
the front plate will not light up.
