LAW 6IMR - LAW 14ITR

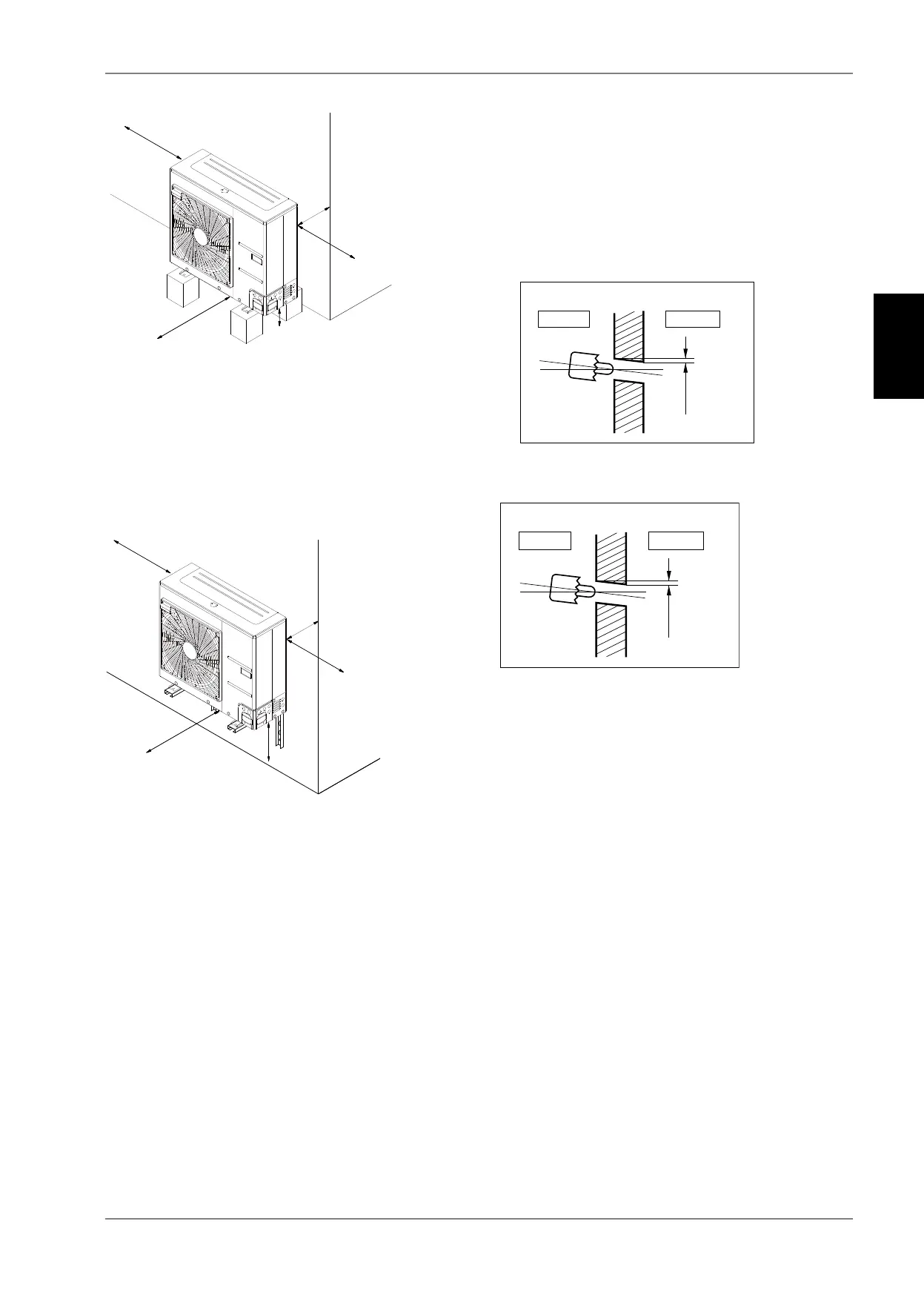

Fig. 5.4
Installation on wall brackets is not advisable, as this frequently
leads to noise problems.
If this type of installation is used, observe the following instruc-
tions:
 Fit rubber buffers
 Take the weight of the outdoor unit into account
 Ensure that the wall bracket is no higher than 1 m above the
ground
 Ensure that minimum clearances are adhered to
Fig. 5.5
5.2.1 Wall opening for split lines and
electric wires
 Please proceed as follows when laying split lines and elec-
tric wires:
 Drill a 70 mm opening for the pipework using a core drill
 The opening for the pipework should be slightly inclined to-
wards the outdoor unit, so that no rainwater can penetrate
the building.
5.2.2 Wall opening for condensate drain
PP
P
P
PP

 P

 P
PP
PP
PP

 P

 P
:DOO
aPP
,QGRRUXQLW 2XWGRRUXQLW
aPP
:DOO
,QGRRUXQLW
2XWGRRUXQLW
