Page #9 background imageLoading...
Page #9 background image
‘C’
150
mm
(min)
150mm
(min)
150mm
(min)
‘D’
To mount the heater to the wall:
1. Remove wall mounting bracket from the back of the heater by depressing the spring
latch at the side of each bracket - see Fig.2.
2. Fix the wall bracket securely to the wall through the four screw holes. Ensure only
screw fi ttings suitable for the particular wall type are used.
3. Present the heater to the wall bracket and engage bottom slots in the back with
bracket hooks.
4. Press the top of the heater into locked position and ensure the clips on the top are
engaged.

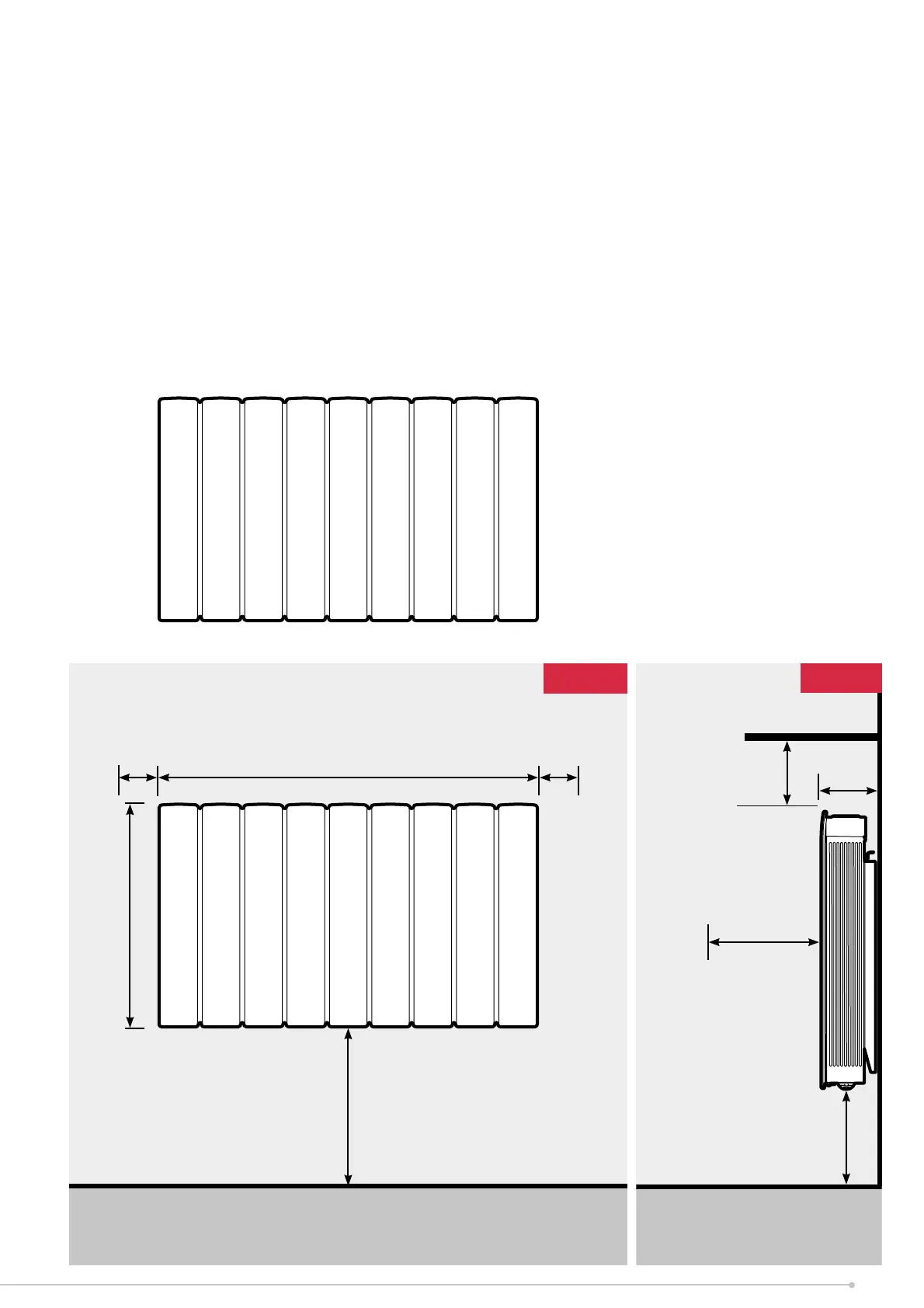

Minimum mounting clearance
300mm
300mm
(min)
‘E’
Shelf / Obstruction
Minimum front
clearance
*Please note correct product
orientation is with controller
facing top right side only
150mm
(min)
Fig. 3
Fig. 4
9
