WARNING:
This product is heavy and care
should be taken in installation
Please read the instructions closely before fi rst using the product, there is also a quick-
start guide on page 8 if you need a reminder of how to use the basic functions in the
future. The heater is designed for wall mounting using the wall bracket supplied. It
should only be operated when in the upright position as shown - see Fig.3 and Fig.4.
All models are splash proof to IP24. Before connecting the heater check that the supply
voltage is the same as that stated on the heater.
MODEL A B C D E
MFP050E
390mm 150mm 503mm 536mm 104mm
MFP075E
390mm 150mm 503mm 536mm 104mm
MFP100E
560mm 150mm 671mm 536mm 104mm
MFP150E
630mm 150mm 741mm 536mm 104mm
MFP200E
800mm 150mm 911mm 536mm 104mm
255mm
‘B’
Minimum
mounting
clearance
Minimum mounting clearance
300mm
‘A’
General Information

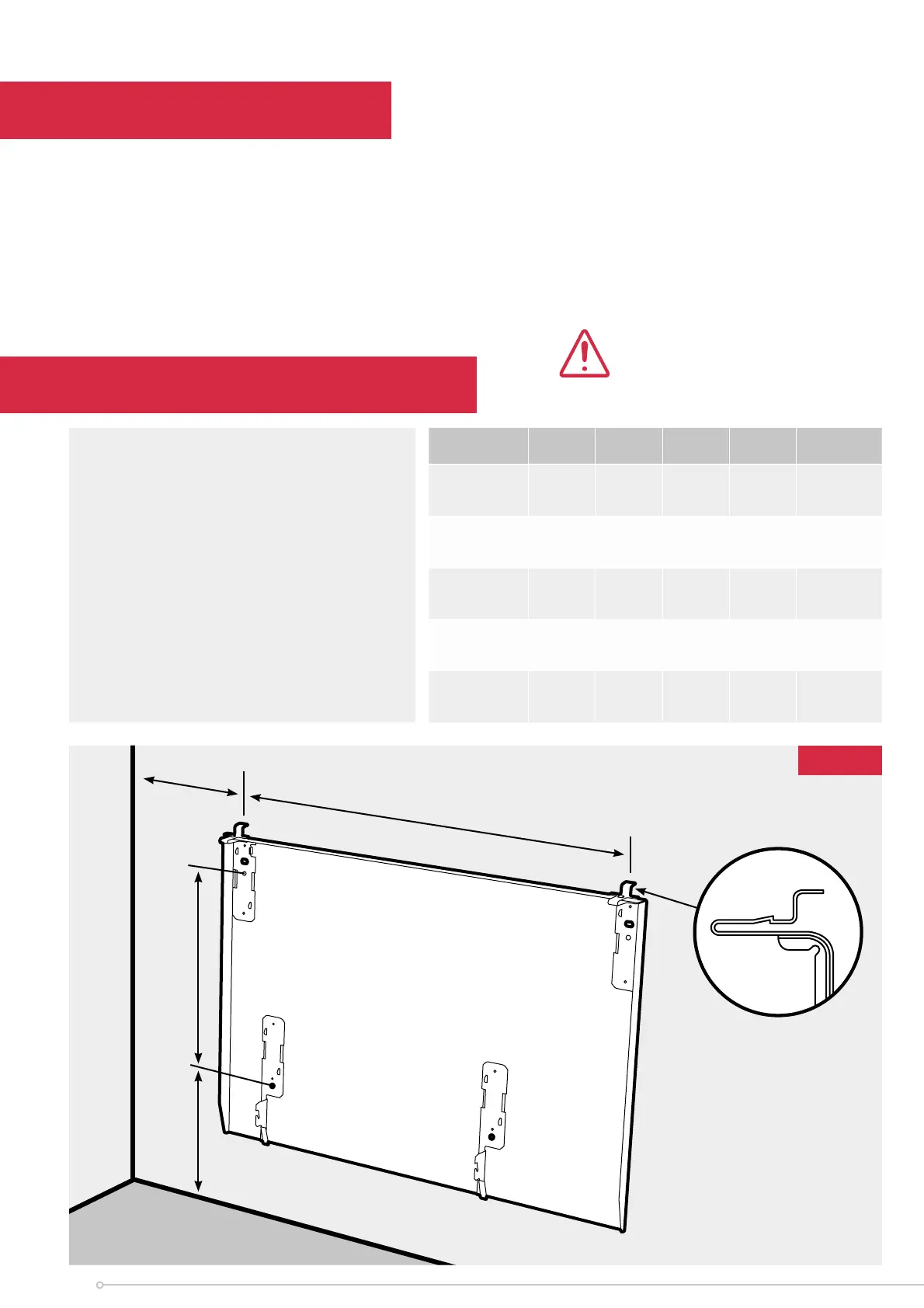

Wall Mounting Instructions
Fig. 2
IMPORTANT - The wall bracket
supplied with the heater must
be used and the heater must
be installed in the correct
orientation. The fi xings should
be used to secure the bracket to
the particular wall on which the
heater will be installed. The heater
should be positioned observing
the minimum clearances stated
around the heater - see Fig. 2,
Fig. 3 and Fig. 4.
8
