- 13 -

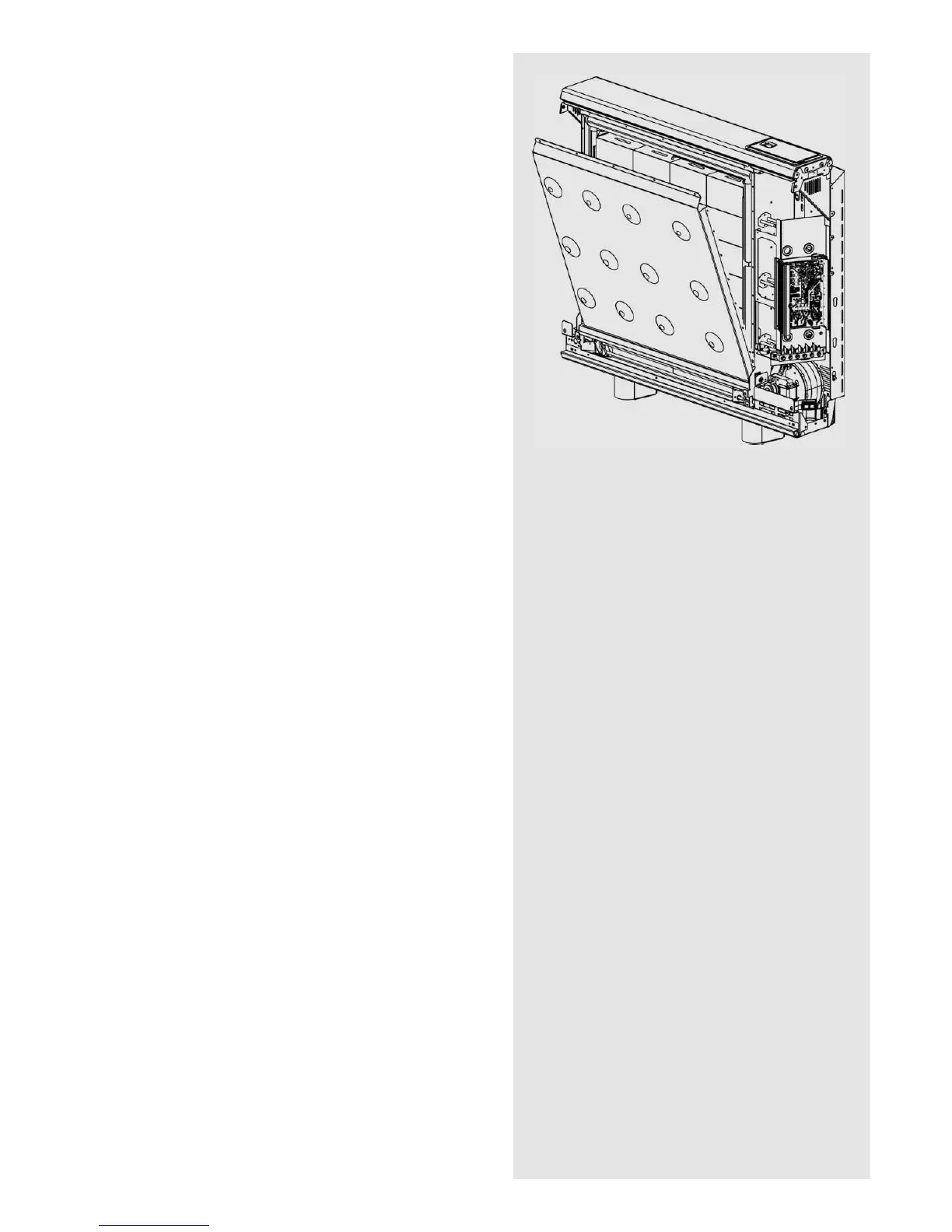

Fig. 17
17. Close the core by refi tting the inner front panel
complete with insulation.
Ensure the bottom edge is located inside the
chassis and that the screws are tightly secured
down each edge.
IMPORTANT
Double check all mains connections are secure and
excess cable is restrained and not in contact with
any of the heater casing.
ON NO ACCOUNT SHOULD ANY SURPLUS
CABLE BE PUSHED INSIDE OR BEHIND THE
HEATER.
Once installed DO NOT attempt to reposition the
heater without fi rst unloading the bricks.
Reassembly
To replace all the panels of the outer casing reverse
steps 3 - 5 of these instructions under the section
headed Preparation.
Ensure all fi xings are secure.
