Preparation

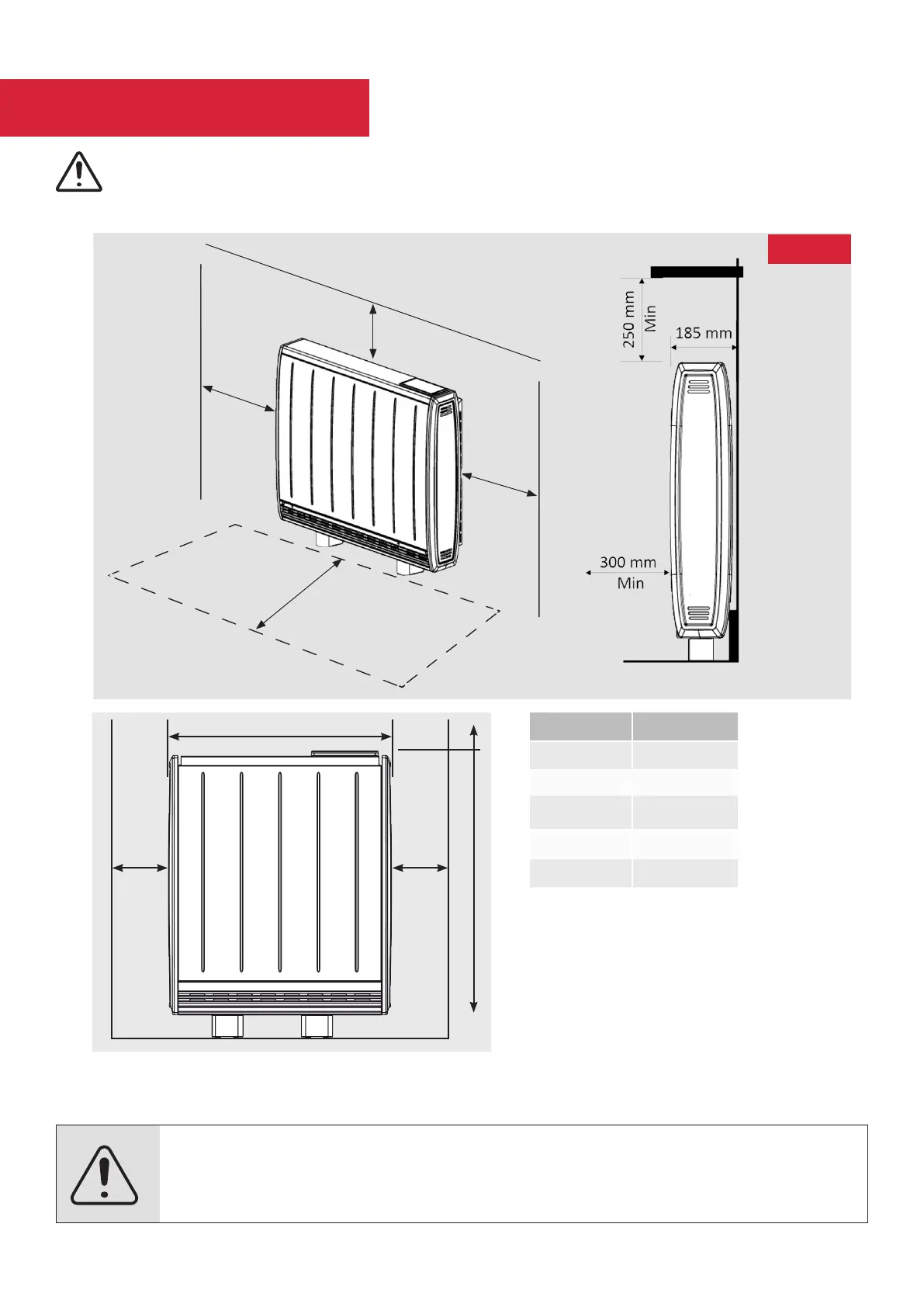

Do not place objects within 300mm of the front of the heater
and 150mm either side.
150
mm
150
mm
250 mm
300 mm
150mm 150mm
‘W’
730mm
Fig. 1
The appliance is very heavy (up to 50kg) and care should be taken when
handling during installation to reduce risk of muscular or skeletal injuries.
CAUTION
QM125RF W (mm)
QM050RF 580
QM070RF 703
QM100RF 865
QM125RF 1069
QM150RF 1069
