Dimplex QM150 Installation Instructions

- 8 -

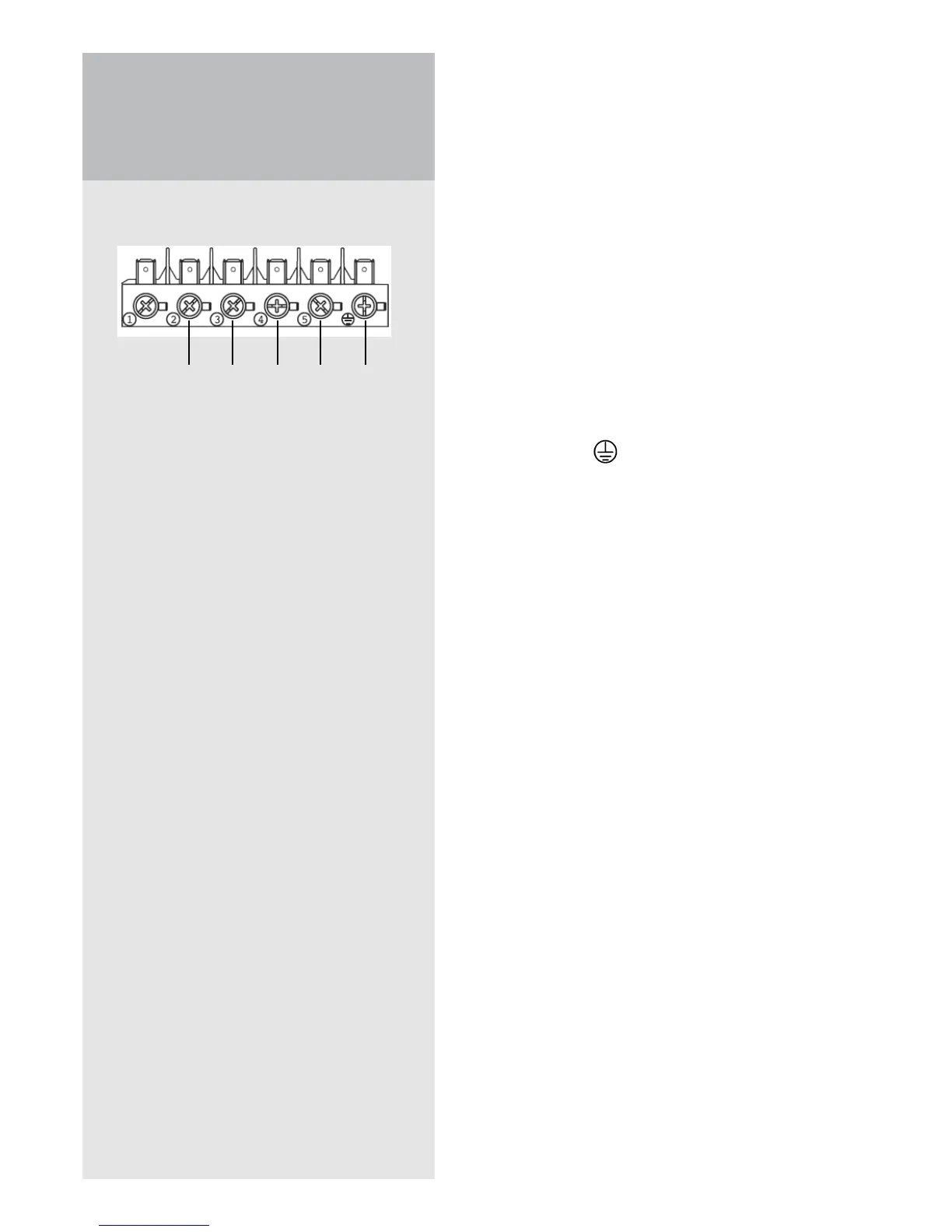

Electrical Connections
8. The heater leaves the factory con• gured
to operate with two mains supplies, a 24 hour
supply and an off peak switched supply.
Storage / Fan circuit
Ensure the brown wire is connected to the terminal
marked L.
Ensure the blue wire is connected to the terminal
marked N.
The earth wire should be connected to the terminal
block marked E or .
L
N
L
N
OFF PEAK PEAK 24
HOURS
EARTH
(BOTH
SUPPLIES)
Two Mains Supplies
Fig. 8
Warning: Before obtaining access
to terminals, all supply circuits
must be disconnected.

Dimplex QM150 Specifications

General

Color	White
Control	Manual
Heat Output	1.5 kW
Installation	Freestanding
Heating Technology	Quartz
Adjustable Thermostat	Yes
Overheat Protection	Yes
Tip-Over Switch	Yes
Type	Quartz Heater
Power Input	1.5kW
Weight	4.5kg
Voltage	230 V
