Installation
The Revillusion™ Log Set Model RLG20 offers an alternative to wood or gas
fireplaces. It can give your existing fireplace new life or transform a cabinet or
media center of your own into a stunning focal point.
Specifications
Electrical
Volts: 120 V, 60 Hz
Amps: 12.5 A
Watts: 1500 W
Wiring: Plug-In
Bulb Type: LED
Approvals
Dimensions
Width: 23.7" (603 mm)
Height: 19.0" (482 mm)
Depth: 12.5" (317 mm)
Weight: 11 lbs (5.0 kg)
Operating Temperature Range:
-4
o
to 104
o
F (-20
o
to 40
o
C)
NOTE: A 15 Amp, 120 Volt circuit is
required. A dedicated circuit is preferred,
but not essential in all cases. A dedicated
circuit will be required if, after installation,
the circuit breaker trips or the fuse blows
on a regular basis when the heater is
operating. Additional appliances on the
same circuit may exceed the current rating
of the circuit breaker.
WARNING: Electrical outlet wiring
must comply with local building codes and
other applicable regulations to reduce
the risk of re, electric shock, or injury to
persons.
!
Placement

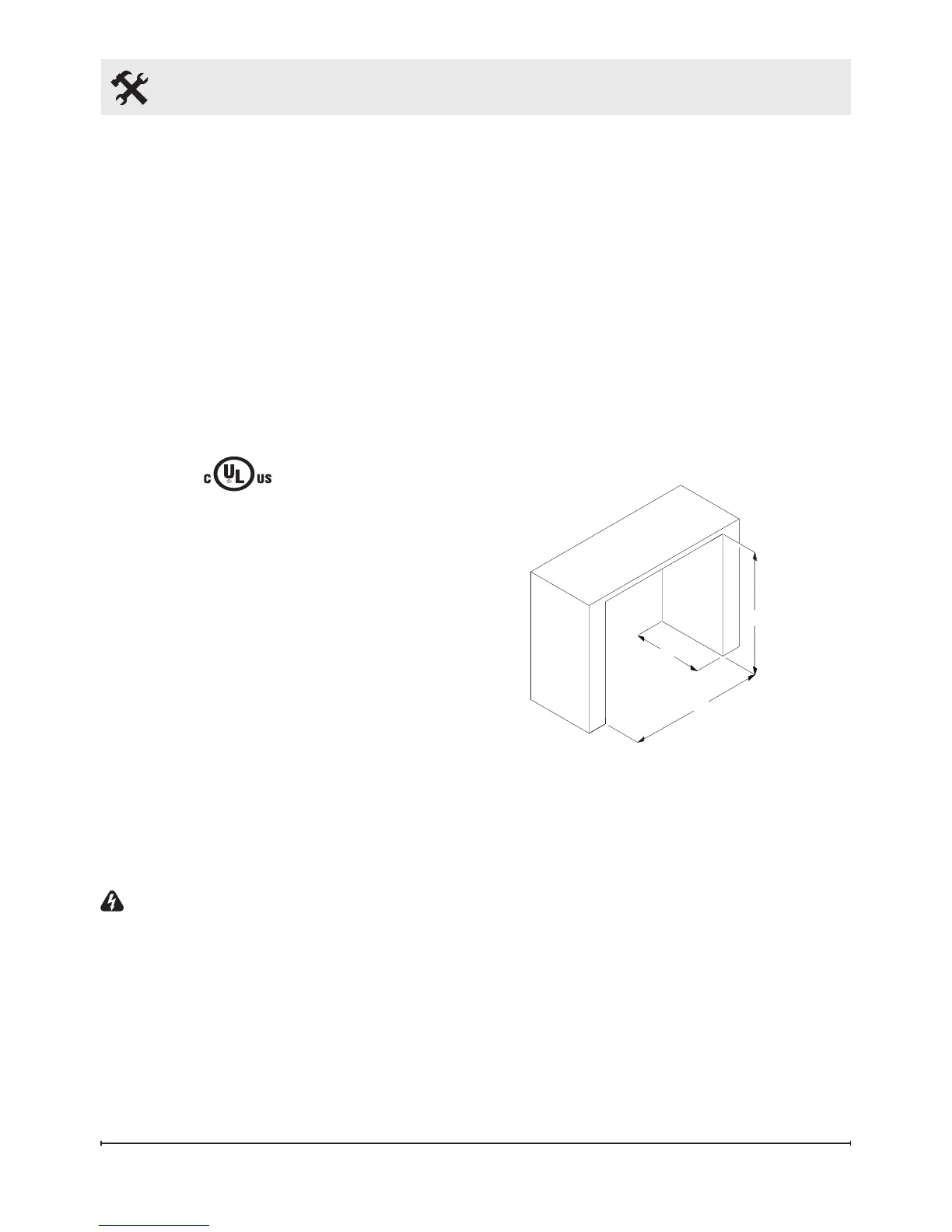

1. The Revillusion log set does not
require any special venting. Install
the unit in an opening with the
minimum dimensions:
A. 24" (610 mm) wide,
B. 22" (559 mm) high
C. 14" (356 mm) deep.
2. Make sure there is clearance for air
circulation beneath the unit.
3. If installing in an existing fireplace
opening, seal all drafts and vents
with a non-fibrous insulation
material to prevent any chimney
debris from falling onto the unit. Do
not install into an existing fireplace
opening that is prone to dampness.
A
B
C
