Installation

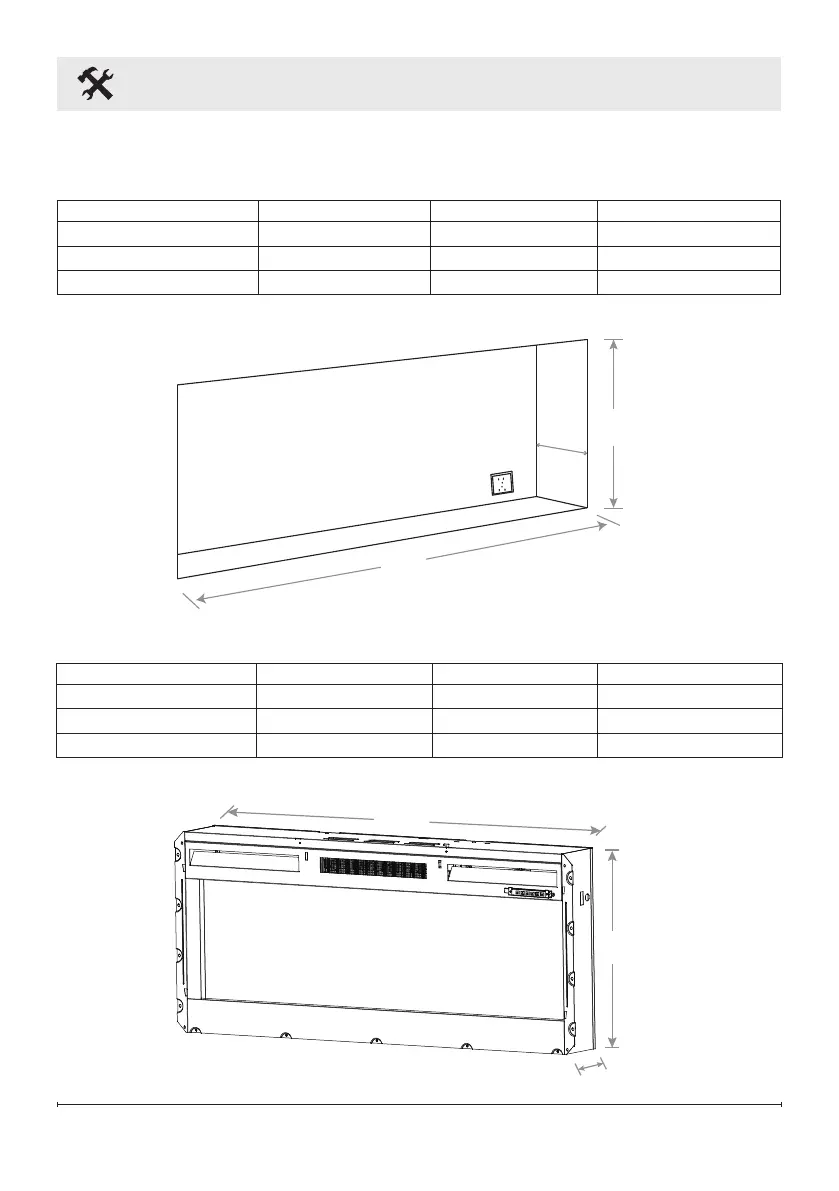

IN-WALL INSTALLATION
Model A B C
Sierra 48 - SIL48 41.6 / 105.7 6.5 / 16.5 18.5 / 47.0
Sierra 60 - SIL60 52.4 / 133.1 6.5 / 16.5 18.5 / 47.0
Sierra 72 - SIL72 64.4 / 163.6 6.5 / 16.5 18.5 / 47.0
Cabinet - in / cm
A
C
B
D
F
E
A
C
B
D
F
E
Model D E F
Sierra 48 - SIL48 41.2 /1 04.6 4.7 / 11.9 18.1 / 46.0
Sierra 60 - SIL60 51.9 / 131.8 4.7 / 11.9 18.1 / 46.0
Sierra 72 - SIL72 64.0 / 162.6 4.7 / 11.9 18.1 / 46.0
Firebox - in / cm
