Installation

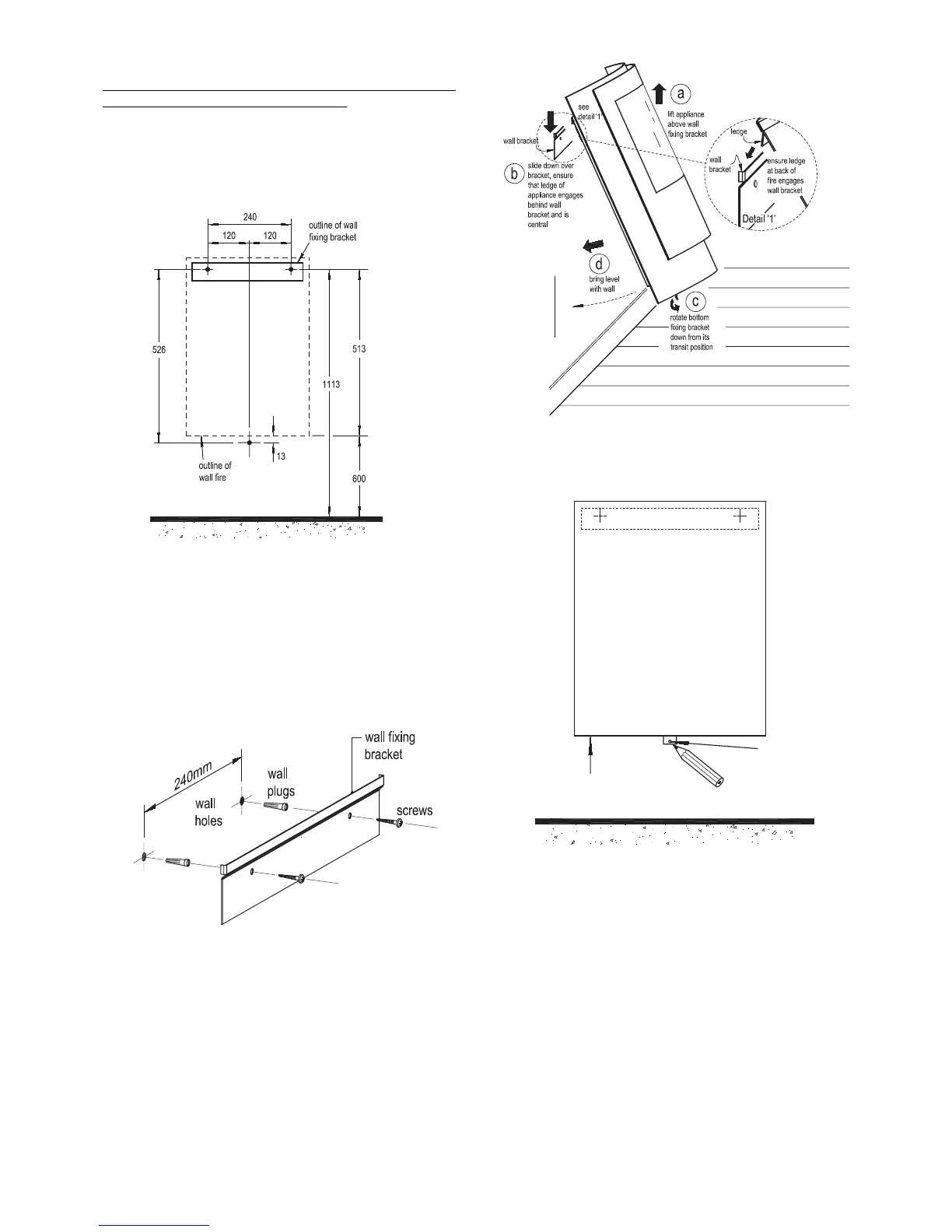

Recommended Fixing Dimensions - Fig. 2
Fig. 3
Fig. 4
Fig. 5
Mark the bottom hole position (see Fig. 5), remove the heater
ensuring that the bottom fixing bracket is rotated up.
Drill and fit wall plug.
Refit the heater to the wall fixing bracket (i.e. follow steps as
in Fig. 4 a,b,c and d above) and rotate the bottom fixing
bracket down again and use the screw provided to
permanently fix the heater in place.
The heater should not be connected until the instruction leaflet
is read fully.
Do not connect appliance until properly fixed to the wall
and the Instruction leaflet is read fully.
This model is designed to be permanently fixed to a wall at a
minimum height of 300mm.
The wall bracket must be fitted horizontally and the cable
routed to the bottom right of the heater as in Fig 1.
A height of 600mm from bottom of heater to floor is
recommended for optimum viewing of fuel bed (see Fig. 2
for recommended fixing dimensions).
For optimum viewing mark the top two screw fixing positions
on wall in accordance with the recommended fixing
dimensions - see Fig. 2.
Fix the wall bracket using the two plugs and screws provided
- see Fig 3.
Carefully lift the heater up ensuring that the top rear ledge of
heater engages the wall bracket and is sitting centrally
positioned. - see Fig 4 (b).
Rotate the bottom fixing bracket down. - see Fig 4 (c).
Gently bring the heater level with the wall. - see Fig 4 (d).
mark hole
centre with
pencil
outline of
wall fire
