The front window assembly will need to be removed in order
to change lamps.
Warning! The front window assembly is heavy and easily
damaged !.
The front window assembly is fixed with two screws on top
and is supported underneath by the chassis.
Care is needed to avoid the assembly falling forward while
removing the screws see Fig. 9.
To gain access to lamps please apply the following
procedure :
Remove the two screws which hold the front window
assembly in place.
While holding the assembly by its sides with both hands,
carefully tilt forwards and then lift up and out - see Fig. 9.
Place the front window assembly flat on a protective surface
such as a matt with the glass facing away from the floor.
Remove two screws securing fuel effect. Holding the logs
carefully lift up (1) and out (2) - see Fig. 10.
Carefully slide the flexible rotisserie to one side ensuring that
the rubber grommet is not lost – see Fig. 11.
WARNING – ALWAYS DISCONNECT FROM THE POWER
SUPPLY BEFORE REMOVING LAMPS.
Lamp Replacement

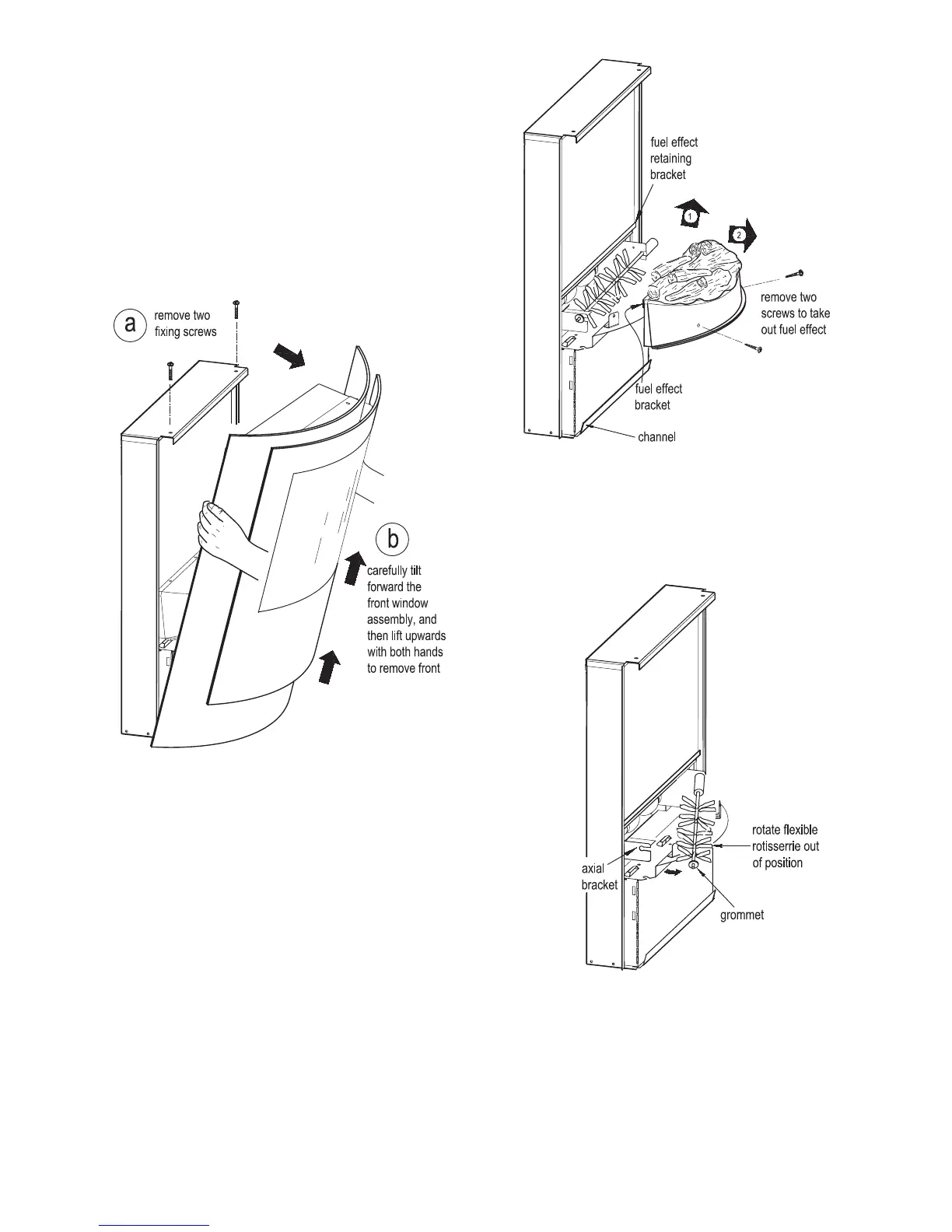

Fig. 9
Fig. 10
Fig. 11
