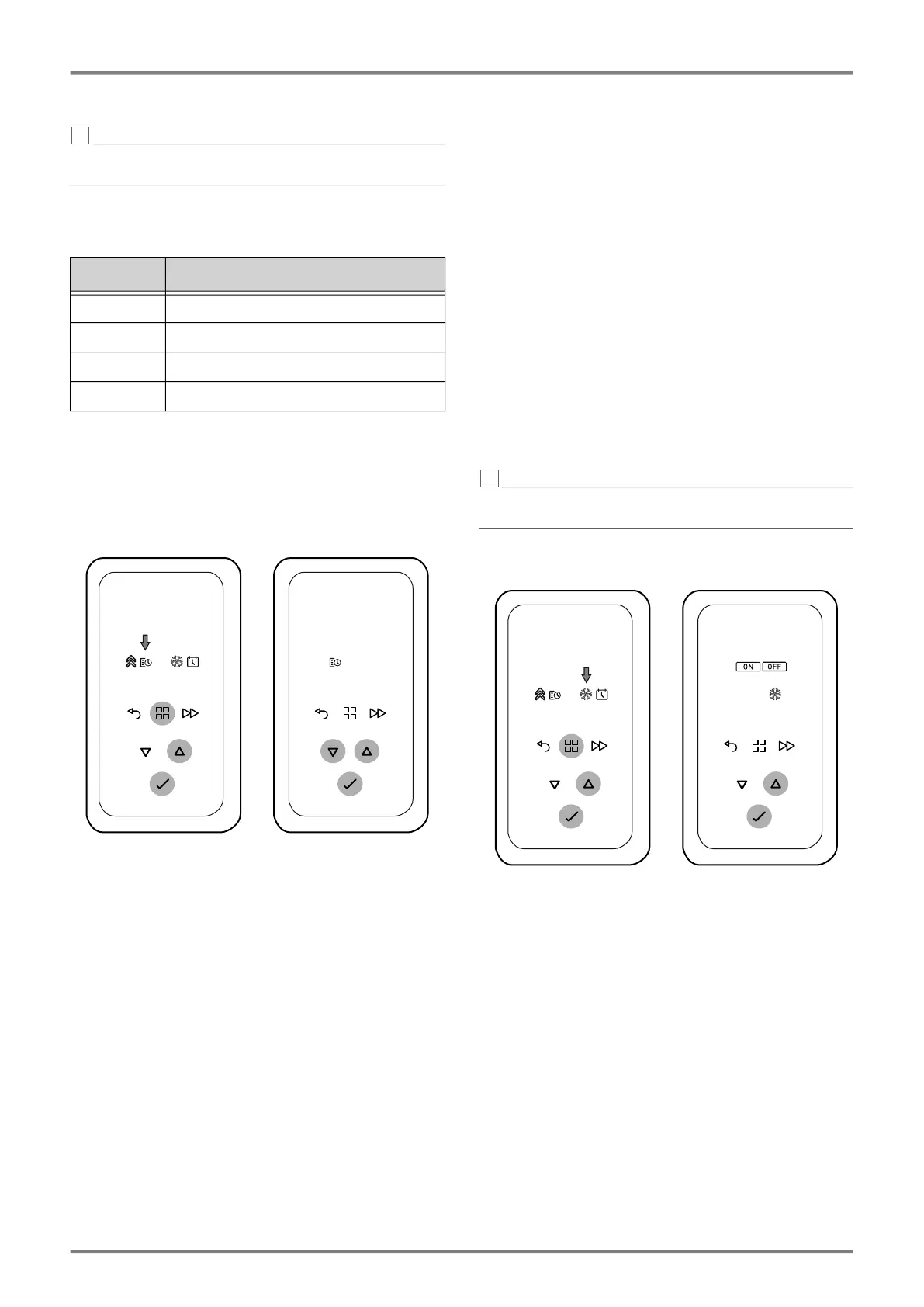

Timer week program
NOTE
i
The function set out below does not apply for wall-
mounted room thermostats.
The timer is pre-programmed at the factory.
See table for factory settings.
The ON time (comfort mode) is displayed with the set
comfort temperature.
The OFF time (energy saving mode) is displayed with
“- -”.
Four time blocks are available per day.
These can be adapted individually for each weekday.
To change these time blocks, carry out the following
steps:
 Press and hold the MENU key for approx. three
seconds.
The display switches to the main menu.
 Press the MENU key. The SUPPLEMENTARY
HEATING symbol flashes.
 Select the TIMER symbol with the  key. The
TIMER symbol flashes. Press the ENTER key.
 Select a weekday.
1 = Monday 5 = Friday
2 = Tuesday 6 = Saturday
3 = Wednesday 7 = Sunday
4 = Thursday
 Select a day with the   keys.
Press the ENTER key. P1 (Program 1) flashes.
 Press the ENTER key. Switch-on time flashes.
 Use the   keys to set the hours.
Press the ENTER key. Minutes display flashes.
 Use the   keys to set the minutes.
Press the ENTER key. Room temperature flashes.
 Use the   keys to set the temperature.
Press the ENTER key. Switch-off time flashes.
 Use the   keys to set the hours.
Press the ENTER key. Minutes display flashes.
 Use the   keys to set the minutes.
Press the ENTER key. P2 (Program 2) flashes.
 The programs P2, P3 and P4 can be set in the
same way.
Copying programs P1 - P4
After program P4 is set, the current weekday flashes
again.
 Press the  keys to set other weekdays. The
programs P1 - P4 that have just been set are cop-
ied to the selected weekdays (1 - 7).
Frost protection function/summer operation, fan
NOTE
i
The function set out below does not apply for wall-
mounted room thermostats.
Specification of fan operation: only at room tempera-
tures below 8° C.
Frost protection function/summer operation ON
 Press and hold the MENU key for approx. three
seconds.
The display switches to the main menu.
 Press the MENU key.
The SUPPLEMENTARY HEATING symbol flashes.
 Use the   keys to select the FROST symbol.
The FROST symbol flashes.
 Press the ENTER key. OFF flashes.
 Press the  key. ON flashes.
 Press the ENTER key. Setting is complete.
Frost protection function/summer operation OFF
 Press and hold the MENU key for approx. three
seconds.
The display switches to the main menu.
Program ON time for comfort temperature
P 1 from 06:00 to 22:00; 22°C
P 2 from 06:00 to 22:00; 22°C
P 3 from 06:00 to 22:00; 22°C
P 4 from 06:00 to 22:00; 22°C
1 2 3 4 5 6 7

Dimplex VFE 20 Specifications

General

Brand	Dimplex
Model	VFE 20
Category	Heater
Language	English
