OPERATING INSTRUCTIONS
COMMISSIONING
CONTROL FUNCTIONS
Initially set the input to 4. If the heater does not maintain a satisfactory room
temperature the following day this setting should be increased. Conversely
if the room temperature is too high this setting should be reduced.
The input control should only require seasonal adjustments.
THE OUTPUT CONTROL
THE INPUT CONTROL
Most of the stored heat is radiated from the casing during the discharge
period. However, some of the heat is emitted through the grille at the top
of the heater and this additional heat (or boost) is regulated by the Output
Control.
With this set to 6 the boost begins in the early afternoon. Turning the control
towards 1 will progressively delay the commencement of the boost. At 3
the boost will start in the evening. Once set, the boost will repeat itself
automatically day after day.
If no boost is required e.g. when the room will be unoccupied for a long
period, set the Output Control to 1. With the control in this position, the
heater will take in less energy during the next charging up period.

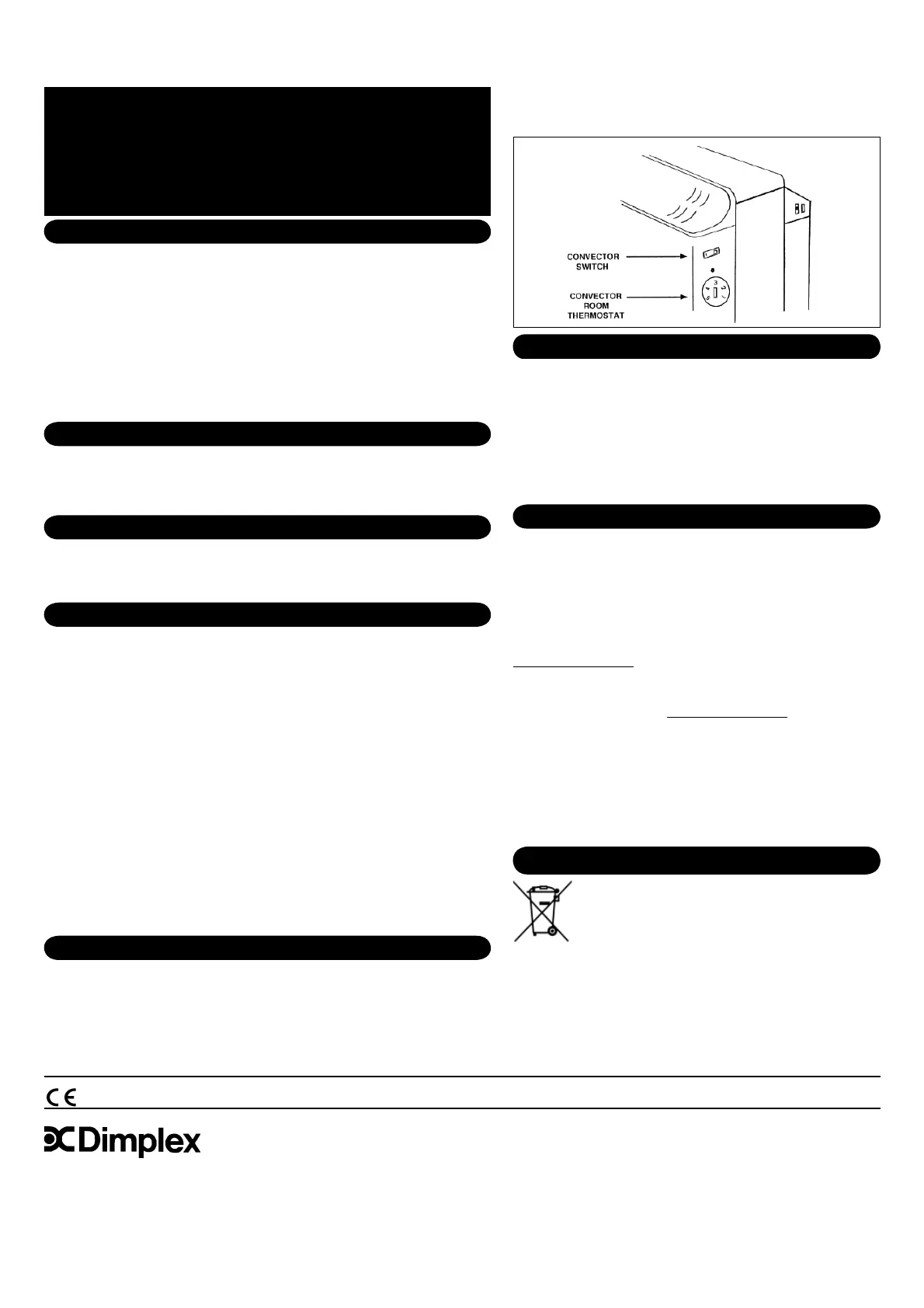

CONVECTOR HEATER CONTROLS
The convector is selected by an on/off rocker switch which illuminates when
switched on ‘1’. With the switch on, the convector element shall be cycled
on and off by the room thermostat. With the switch off “0” the convector
will not run. The room thermostat knob is marked 1 to 5. The higher the
level at which the room temperature will be controlled.
To maintain the appearance of the heater wipe occasionally
with a dry cloth when the heater is cool.
Do not use abrasive powders of furniture polish.
Discoloration of wall finished can sometimes occur
immediately above storage heater due to the properties of
some paints and decorating materials or in the presence of
environmental impurities in the air (such as soot or incense
generated from the burning of candles, etc.)
AFTER SALES SERVICE
This appliance complies with the European Standards EN60335-2-30, EN 60 335-1, EN 60 335-2-61, EN 61000-3-2, EN 61000-3-3, EN 55014 and EN55104 for Safety &
Electromagnetic Compatibility. These standards cover the requirements of the EMC Directives 89/336 & 73/23.
85150 Issue 8 : February 2009
Dimplex UK Limited
Millbrook House
Grange Drive
Hedge End
Southampton
Hamsphire
SO30 2DF
© Dimplex UK Limited
All rights reserved. Material contained in this publication may not be
reproduced in whole or part, without prior permission in writing from
Dimplex UK Limited.
OPERATION
Your XMC(N) heater combines the economy of a storage heater
with the convenience of a convector heater.
The storage heater takes in energy, when electricity tariffs are
low and dissipates it when tariffs are normal.
The convector heater provides an instant boost on demand
from normal tariff electricity.
1. Ventilate rooms well during commissioning.
2. Do not move the heater in any way once installed without the services
of a competent electrician.
3. Do not cover the heater with clothing etc. at any time or position furniture
close to or against the heater.
4. Ensure a clearance of at least 150mm between heaters and
curtains.
5. Should your heater fail to operate either employ the services of a
competent electrician or Telephone 0845 600 5111.
ALSO REFER TO COVER PAGE
Set both the Input Control and the Output Control to 6 and leave
the heater for 48 hours. Following the commissioning period
adjust the controls as stated below.
The controls are located under the hinged fl ap at the top right hand corner
of the heater. To adjust the controls on the heater, use a coin and engage
it in the slots provided on the top surface of the knob.
Customer Help Line 0845 600 5111
Mon–Thurs 08.30-17.00 and Fri 08.30-16.00 (Sept-April)
Mon–Thurs 08.30-17.00 and Fri 08.30-15.00 (May to August)
Fax 01489 773 050
Web-site www.dimplex.co.uk
e-mail technical.services@dimplex.co.uk
Republic of Ireland 01 842 4833
For electrical products sold within the European
Community. At the end of the electrical products
useful life it should not be disposed of with
household waste. Please recycle where facilities
exist. Check with your Local Authority or retailer for recycling
advice in your country.
Your product is guaranteed for two years from date of
purchase. Within this period, we undertake to repair or
exchange free of charge provided it has been installed
and operated in accordance with these instructions. Your
rights under this guarantee are additional to your statutory
rights, which in turn are not affected by this guarantee.
Should you require after sales information please go to
www.dimplex.co.uk where you will fi nd our self help guide
by clicking on ‘After Sales’ or ring our help desk on 0845
600 5111 (UK) or 01842 4833 (ROI). Spare parts are also
available on the website www.dimplex.co.uk.
Please do not initially return faulty appliance, or part of an
appliance, to us as this may result in transit damage and/or
a delay in providing service.
Let us know your diffi culty quoting the model number and
serial number (located along the wall bracket). We will then
take the appropriate action. Please retain your receipt as
proof of purchase.
RECYCLING
SETTING THE CONTROLS
CONVECTOR HEATER
CLEANING
SAFETY INSTRUCTIONS
Your comfort level can be easily established by gradually
adjusting the thermostat until the required room temperature
is maintained.
