Convection Heated Plate and Base Dispenser | 11

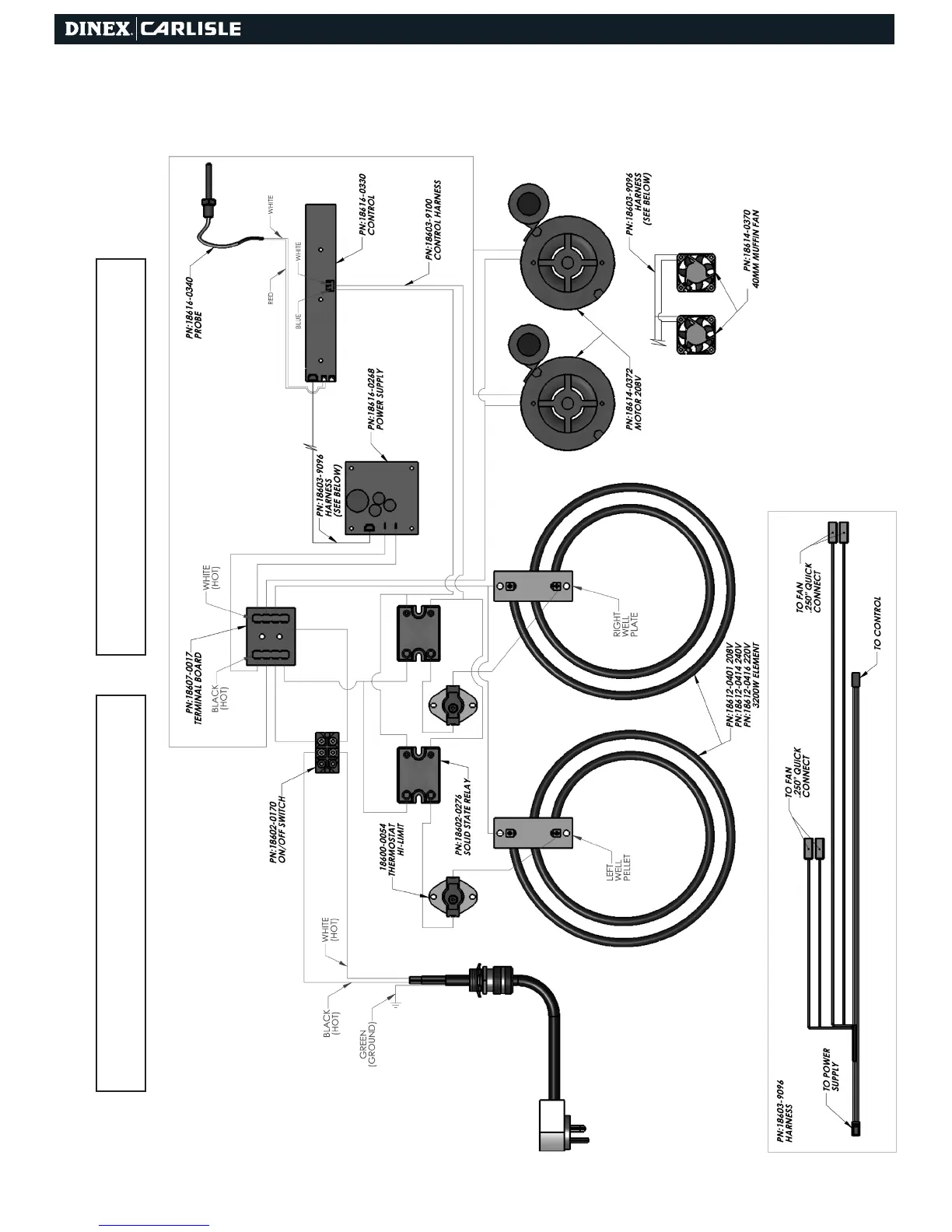

Wiring Diagram (Models DXIDPC30180 & DXIDWB30900)
!
CAUTION: Disconnect power before servicing or resetting high-limit
thermostats.
!
NOTE: All wires to be 10 Awg high temperature silicone insulated
unless otherwise specied.
