Dinex DXIDPC20120 - Installation; Installation Setup

Convection Heated Plate and Base Dispenser | 2
SET UP
!
INFO: Installation of this Equipment should be performed by
persons qualied or licensed to install electrical equipment only.
It is the responsibility of the installer to comply with all local codes.
!
NOTE: The installation instructions are similar for all models of
base/plate heaters.
1. Remove all external packing materials and inspect for
damage. Keep packing materials if damage is discovered.
2. Remove all tape and protective coverings from unit and
all parts.
3. IMPORTANT: Lift the self-leveling dispenser units and
corrugated packing materials out of the cabinet.
4. Wipe all surfaces of the cabinet and self-leveling dispensers
with a clean damp cloth, then dry thoroughly.
5. All models are equipped with self-leveling mechanisms that are
removable through the top of the unit so that adjustments can be
made to the extension springs. By adding or removing springs,
proper dispensing can be obtained.
Congratulations! You have just purchased one of the finest
pieces of equipment on the market today. Before installing or
operating your new Dinex equipment you should read through
this material. This manual should be retained for further
reference as it contains installation instructions, service tips,
part list and warranty information. Should you have any
questions concerning the Equipment, please call the Dinex
Hotline at 1-888-673-4639 (Monday through Friday from
7am to 6pm, Central Standard Time).
!
IMPORTANT: For your safety, read and follow all cautions,
information, and warnings.
FREIGHT DAMAGE CLAIMS
Your Plate or Base Heater was carefully inspected and packed
before leaving our factory. The transportation
company assumes full responsibility for safe delivery of this
equipment. Dinex cannot assume responsibility for damage
or loss incurred in transit. Visible damage or loss should be
noted on freight bill and signed by person making delivery.
A freight claim should be filed immediately with the
transportation company. If damage is unnoticed or concealed
until equipment is unpacked, notify the transportation company
immediately and tell them you want to file a concealed damage
claim. This must be done within fifteen (15) days after delivery
was made. Be sure to retain all packing material and cartons.
!
ATTENTION: Installation of this equipment should be performed
only by persons qualied or licensed to install electrical equipment.
• Adjustments and service work should be performed only by
qualied service technicians.
• This equipment is intended for commercial use only. Not for
household use.
• Use of other than genuine Dinex replacement parts or service
work performed by those other than authorized Dinex service
agents will void the warranty.
• Do not use corrosive cleaners on the equipment. Use
only mild detergents.
INFORMATION ON THIS SECTION: When contacting customer
service please provide the following information located on the product
identication plate:
• Model number
• Serial number of the equipment (identication plate)
• Description of the part
• See Manual for item number

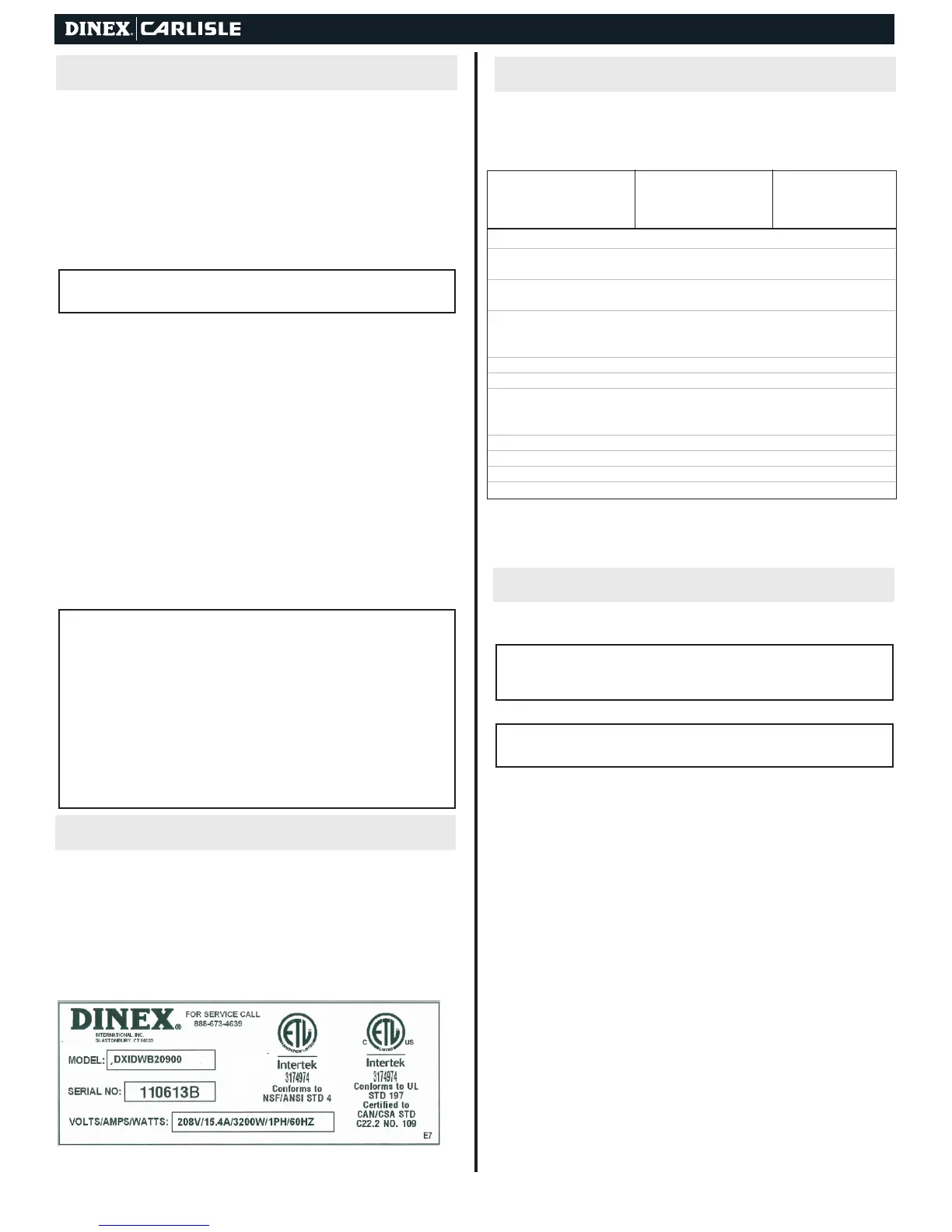

IDENTIFICATION PLATE
Different serial numbers for each unit. Check the compatibility of
machine voltage and amperage with electrical connections.
The Dinex Plate or Base Heater is designed specifically for use
with a wide variety of 9" stainless steel bases and plates.
INTRODUCTION
GENERAL INFORMATION
INSTALLATION
INFORMATION
Number of Stacks 2 3
Capacity Per Stacks
60-75 60-75
(Bases-Plates)
Total Capacity
120-150 180-225
(Bases-Plates)
OVERALL DIMENSIONS
Length 35.36" (89.8 cm) 45.00" (114.3 cm)
Depth 23.68" (60.1 cm) 23.68" (60.1 cm)
Height 42.96" (109.2 cm) 42.96" (109.2 cm)
ELECTRICAL REQUIREMENTS
Voltage/Phase 208V/220V/240V/1P 208V/220V/240V/1P
Amperage (at 208V) 15.4, 14.5, 13.3 30.8, 29.0, 26.7
Cycle 60 60
NEMA Plug Configuration 6-20P 6-50P
Shipping Weight 260 lb (117.9 kg) 320 lb (145 kg)
DXIDPC20120 DXIDPC30180
DXIDWB20900 DXIDWB30900
MODEL
DXIDPWB20900
