Dini Argeo 3590EXT series User Manual

3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_13.01_EN_U
7

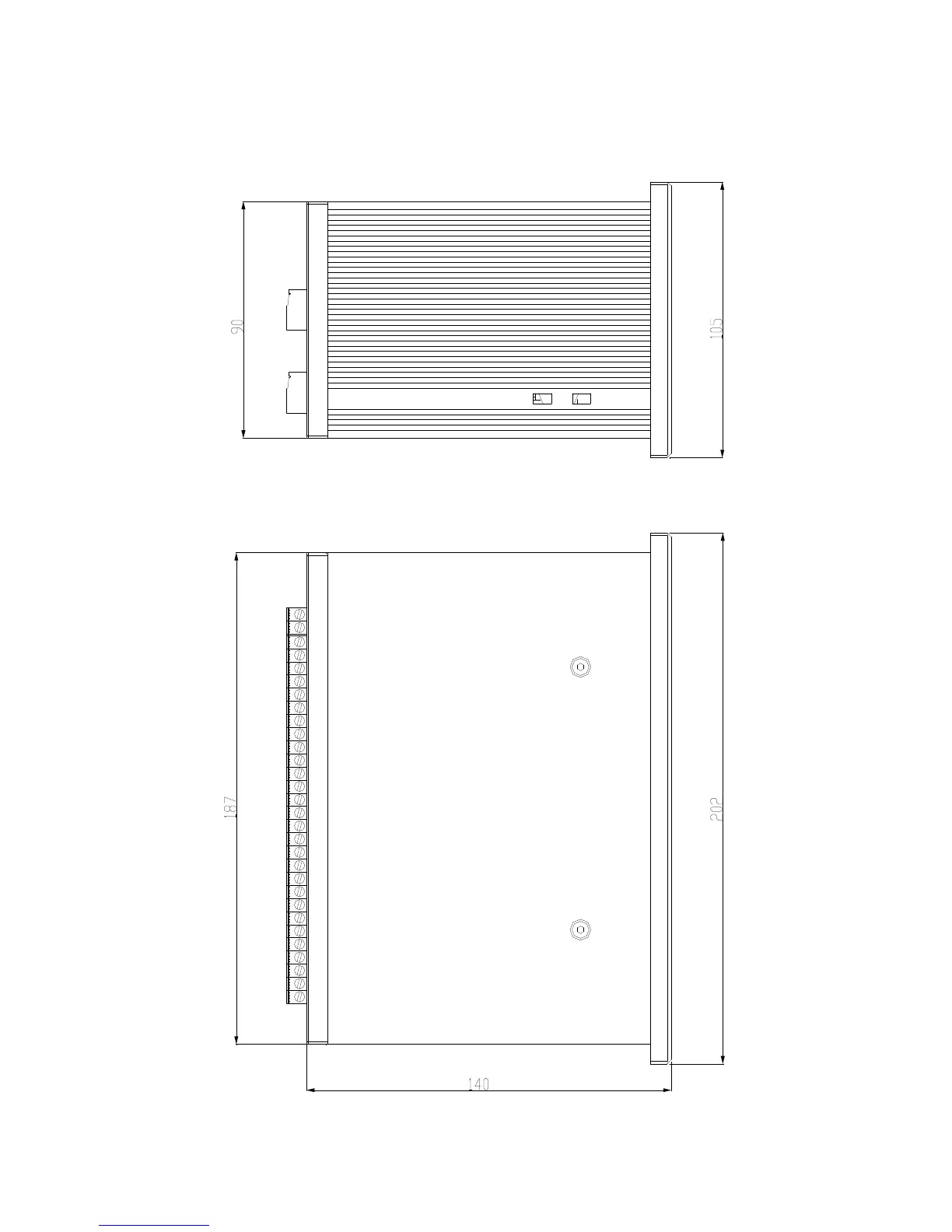

Figure 1
3. INSTALLATION
3.1 CPWE DRILLING TEMPLATE, CASE AND DIMENSIONS
The weight indicator has an anodized aluminium case, whose external dimensions are shown in the figure 1.
It should be mounted on a panel board respecting the safety norms.
DRILLING TEMPLATE DIMENSION: 187,5mm x 91,5mm
