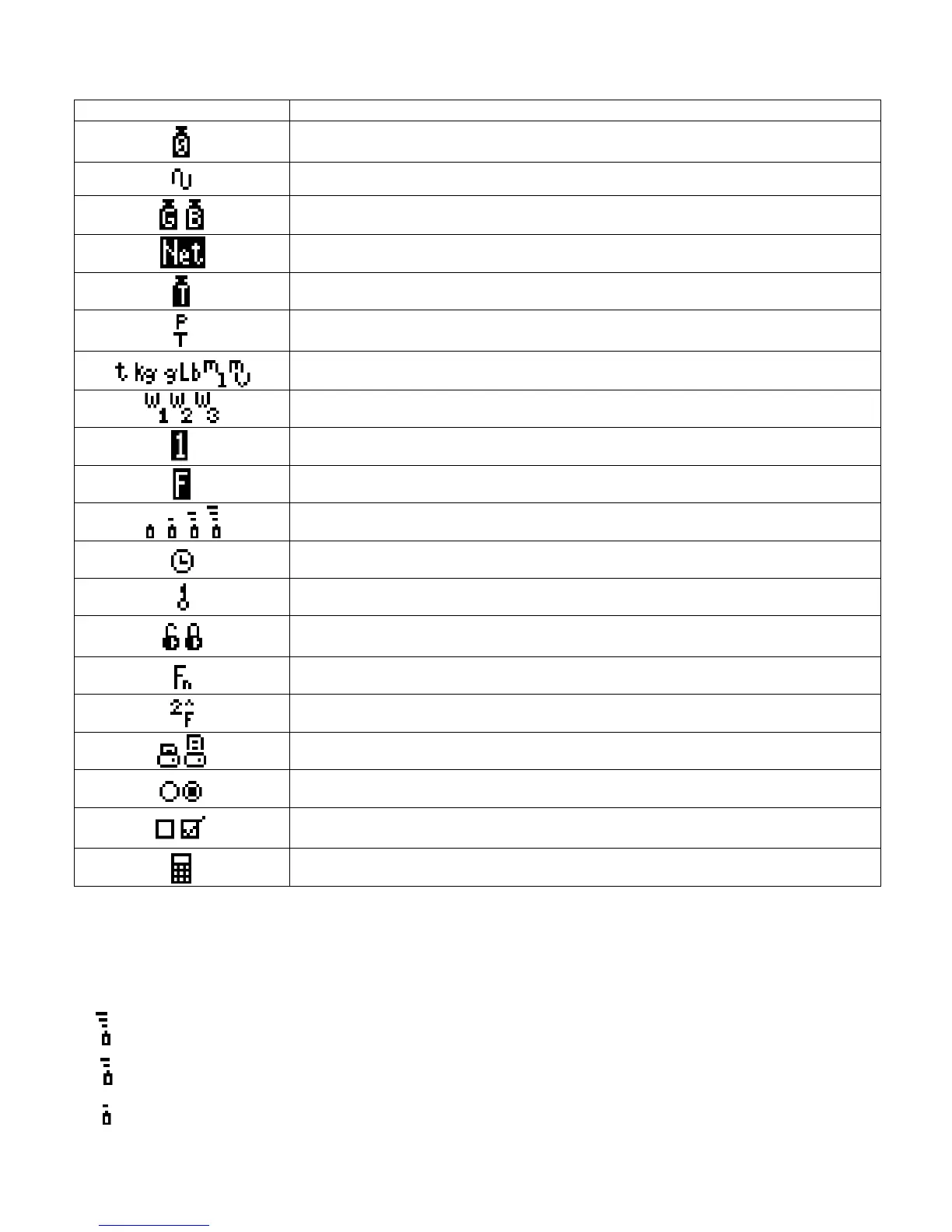

SYMBOLS FUNCTIONS ON THE LCD DISPLAY
5.3 BATTERY LEVEL INDICATION
The indicator is able to recognise whether it is powered by mains or by battery, and to indicate its charge level; to enable the
battery level indication, one should configure the << bt.LEVEL >> step.
The charge level is shown during weighing by the battery symbol.
-
:
charged battery.
-
: partially charged battery.
- : discharged battery: connect the indicator to the mains for recharging the battery (if provided by that model) or replacing
the battery.
The weight detected by the weighing system is near the zero, included within the interval
of –1/4 and +1/4 of the scale division.
The weight is unstable.
The displayed weight is a GROSS WEIGHT (depending on the software language).
The displayed weight is a NET WEIGHT.
A tare value has been acquired.
A manual tare value has been entered.
Unit of measure in use: ton, kilogram, gram, pounds, millilitres, or millivolts.
Active weighing range, see section 8.
Active scale (always 1).
Indicates that an axle totalization cycle is in execution.
Battery charge level: see section 5.3.
Active during the configuration of the date and time.
Locked keyboard, see section 4.4
In the HELP menu these respectively indicate whether a key is unlocked or locked in the
SETUP level (<< En.KEYS >> step, see section 4.5)
The Fn key has been pressed.
The 2nd F key has been pressed.
Transmission of the data to the printer serial port under way.
Inside the step, these respectively indicate an unselected or selected parameter.
if an element of the database is
Active calculator function, see section 15.3 CALCULATOR.
