3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_13.01_EN_U
22

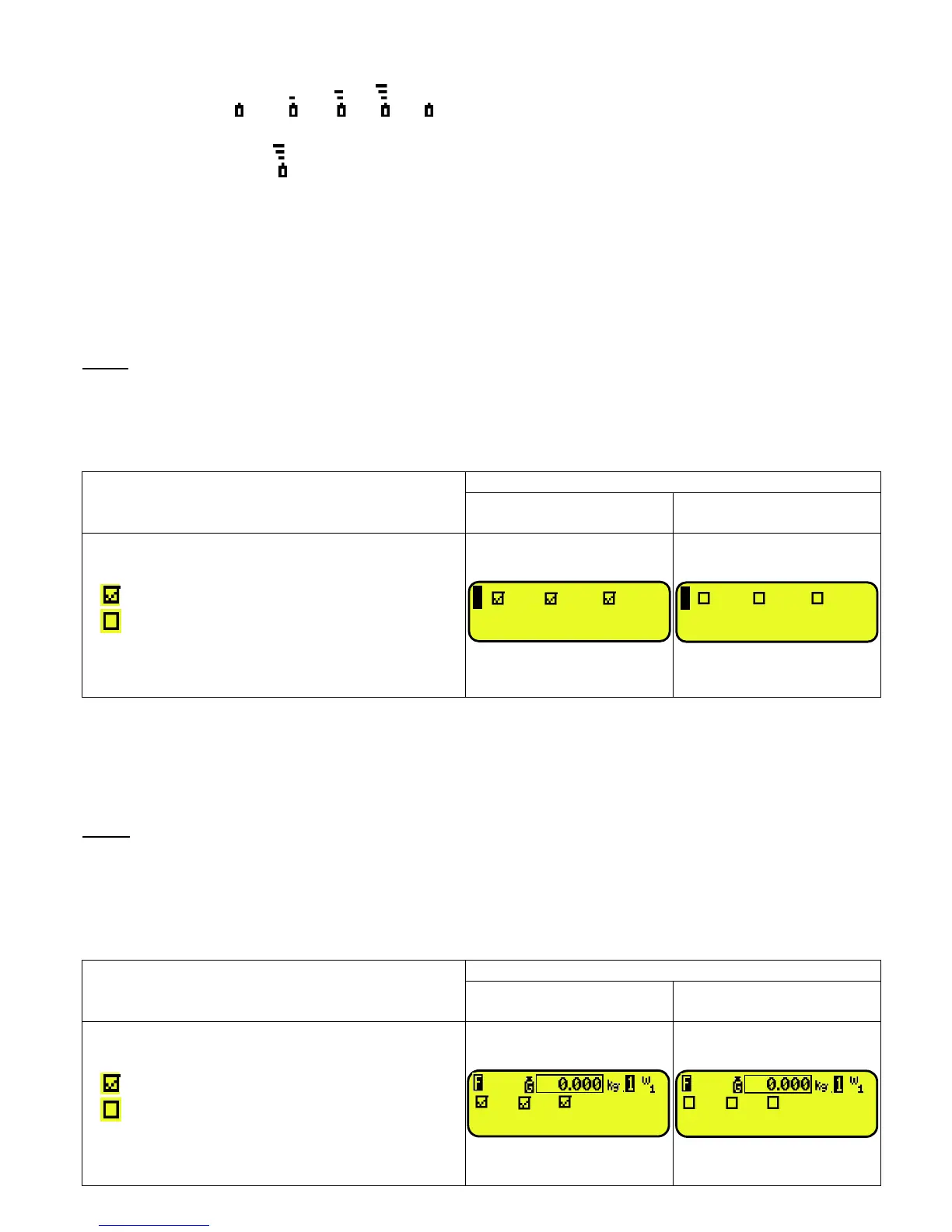

The indicator shows also when the battery is being recharged (if provided for the model):
RECHARGE PHASE: …
COMPLETED RECHARGE:
NOTES:
- During the recharge the instrument can be normally used.
- The instrument automatically turns off when the voltage goes below the minimum level.
5.4 DISPLAYED DATA
3590E:
The data is displayed on two lines and depends on the status of the instrument:
- When not in the axle totalization cycle, the visualization will be as follow:
Indication of the selected elements (CUS:customer /
MAT:material / VEH:vehicle):
Element selected
Element not selected
- PT is Preset tare (if set) to be subtracted from the total
accumulated weight (see section 13.3.6).
- During the axle totalization cycle the display will guide the operator to execute the weighing procedure depending on the
selected functioning mode. Refer to section 13 for details.
CPWE:
VISUALISATION WITH NON ACTIVE WEIGHT ZOOM
The data is shown on two lines under the “weight” section depending on the status of the instrument:
- When not in the axle totalization cycle, the visualization will be as follows:
Indication of the selected elements (CUS:customer /
MAT:material / VEH:vehicle):
Element selected
Element not selected
- PT is Preset tare (if set) to be subtracted from the total
accumulated weight (see section 13.3.6).
