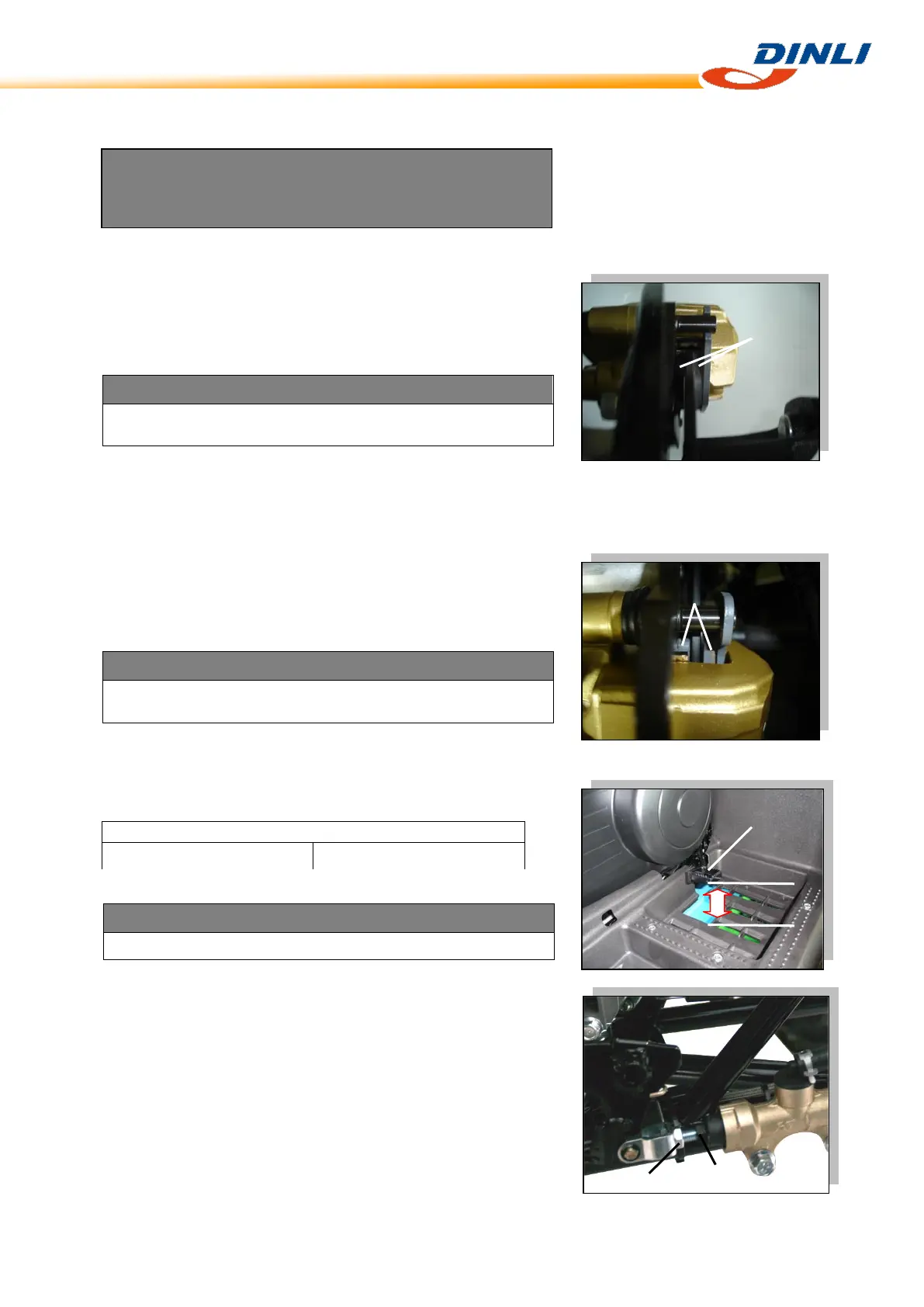

Brakes
Front Brake Pad
● Remove the front wheels.
● The extent of front brake pad wear can be checked by observing
the limit line [1] on the side of brake pads. When the wear reaches
the limit line, replace the pads with new ones.
Tightening Torque: 18 N-m (1.8 kgf-m, 13.0 lb-ft)
Rear Brake Pad
● Remove the rear wheels.
● The extent of rear brake pad wear can be checked by observing
the limit line [1] on the side of brake pads. When the wear reaches
the limit line, replace the pads with new ones.
Foot Brake Pedal
● Check that the brake pedal [A] is in the correct position as shown.
★ If it is incorrect, adjust the brake pedal position.
● Loosen the nut [A], and turn the bracket [B] until pedal is
correctly positioned.
● Tighten the nut [A].
● Make sure to tighten the nut [A] securely.
Inspect initially at 200 km (10 hours, 1 month) and every
200 km (10 hours, 1 month) thereafter.
