Dino-Power X24 User Manual

Parts List
No.
Series No.
Description
Qty
No.
Series No.
Description
Qty
1
X24501
Transducer
1
10
X24510
Plastic Cover
1
2
X24502
Fuse
1
11
X24511
Circuit for Digital Pressure Display
1
3
X24503
Fuse Holder
1
12
X24512
Screw
4
4
X24504
Switch
1
13
X24613
Screw
2
5
X24505
Washer
1
14
X24614
Screw Pin
2
6
X24506
Screw
1
15
X24515
Base
1
7
X24507
Bridge
1
16
X24516
Circuit Board
1
8
X24508
Pressure Regulator
1
17
X24517
Screw
6
9
X24509
Pressure Regulator Cover
1
18
X24518
Screens
1

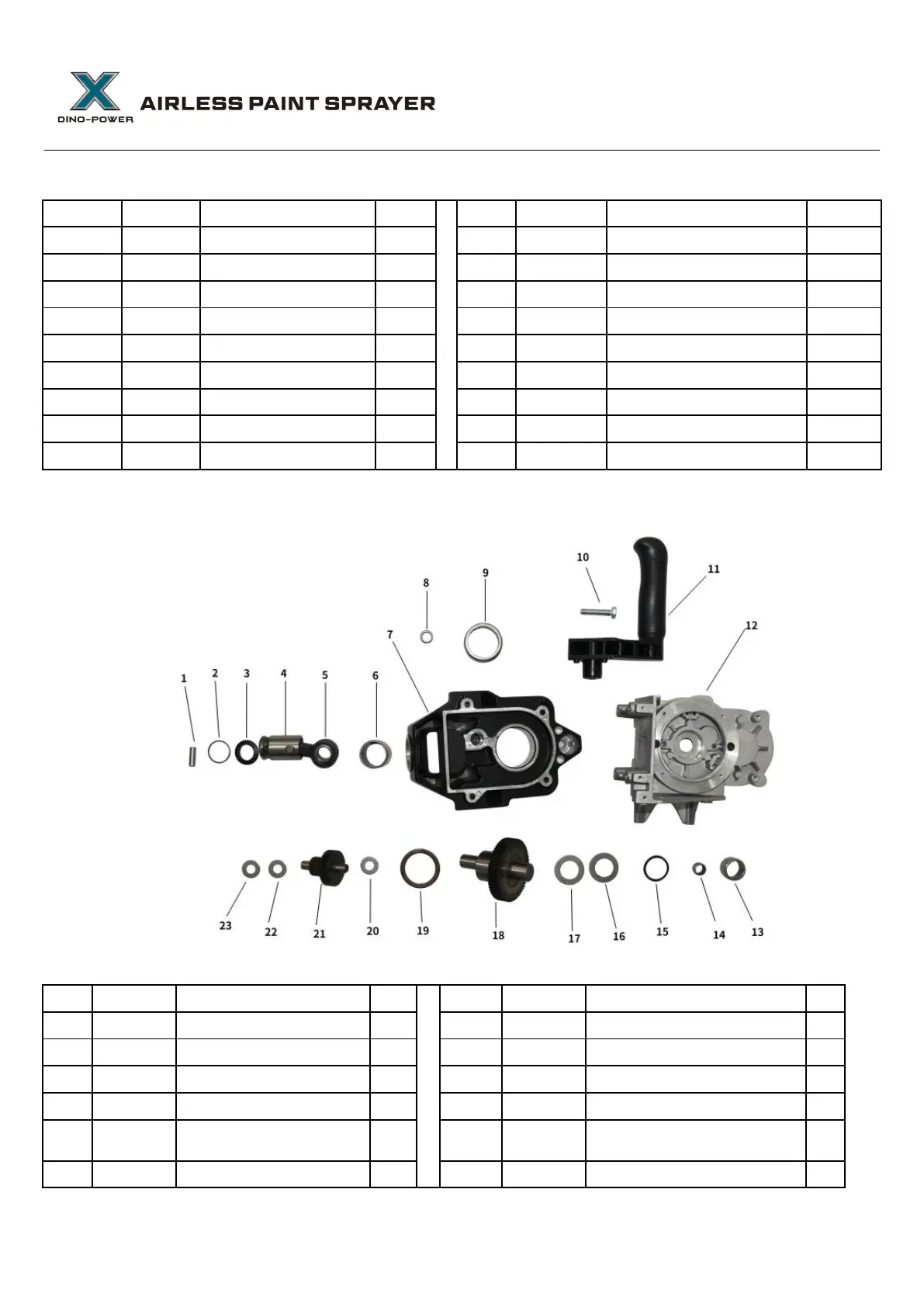

X24 Gear Box
No.
Series No.
Description
Qty
No.
Series No.
Description
Qty
1
x24201
Pin
1
13
x24213
Bearing
1
2
x24202
Washer
1
14
x24214
Bearing
1
3
x24203
Washer, rubber
1
15
x24215
O-ring
1
4
x24204
Connecting rod
1
16
x24216
Washer
1
5
x24205
Needle bearing, connecting rod
1
17
x24217
Washer
1
6
x24206
Bearing
1
18
x24218
Gear, crankshaft
1

Dino-Power X24 Specifications

General

Brand	Dino-Power
Model	X24
Category	Paint Sprayer
Language	English
