Parts List
7
x24207
Drive housing
1
19
x24219
Washer
1
8
x24208
Bearing
1
20
x24220
Washer
1
9
x24209
Bearing
1
21
x24221
Gear, reducer
1
10
x24210
Screw
1
22
x24222
Washer
1
11
x24211
Handle
1
23
x24223
Washer
1
12
x24212
Cover, drive housing
1

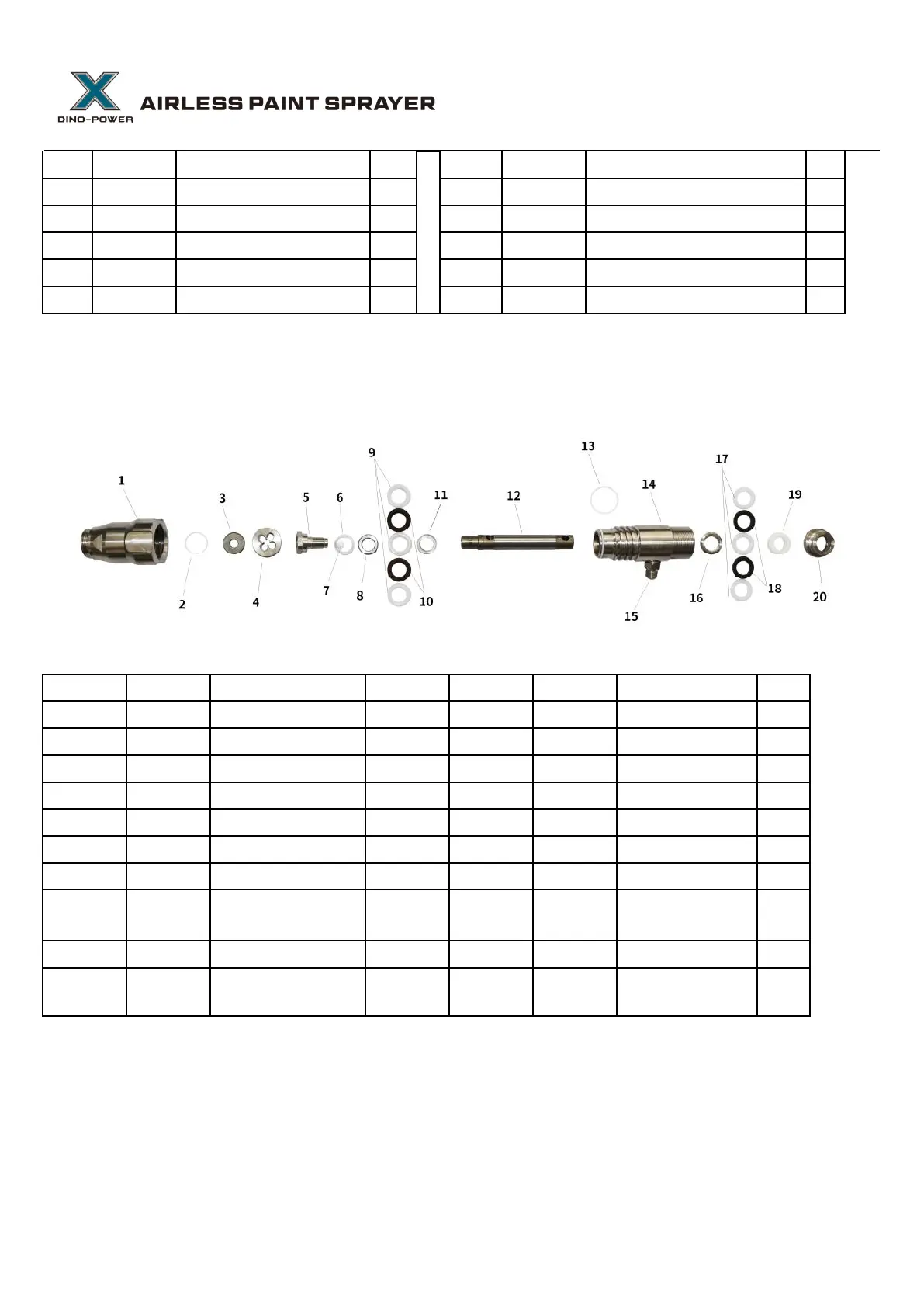

X24 Fluid pump
No.
Series No.
Description
Qty
No.
Series No.
Description
Qty
1
x24101
Lower housing
1
11
x24111
Gland, piston
1
2
x24102
O-ring
1
12
x24112
Piston rod
1
3
x24103
Carbide seat
1
13
x24113
O-ring
1
4
x24104
Ball guide
1
14
x24114
Cylinder
1
5
x24105
Piston valve
1
15
x24115
Outlet connector
1
6
x24106
Spacer
1
16
x24116
Gland, piston
1
7
x24107
Ball
1
17
x24117
V-packing, throat
3
8
x24108
Gland, piston
1
18
x24118
V-packing, leather,
throat
2
9
x24109
V-packing, piston
3
19
x24119
Gland, throat
1
10
x24110
V-packing, leather, piston
2
20
x24220
Nut, packing
1
