Dino-Power X24 User Manual

Parts List

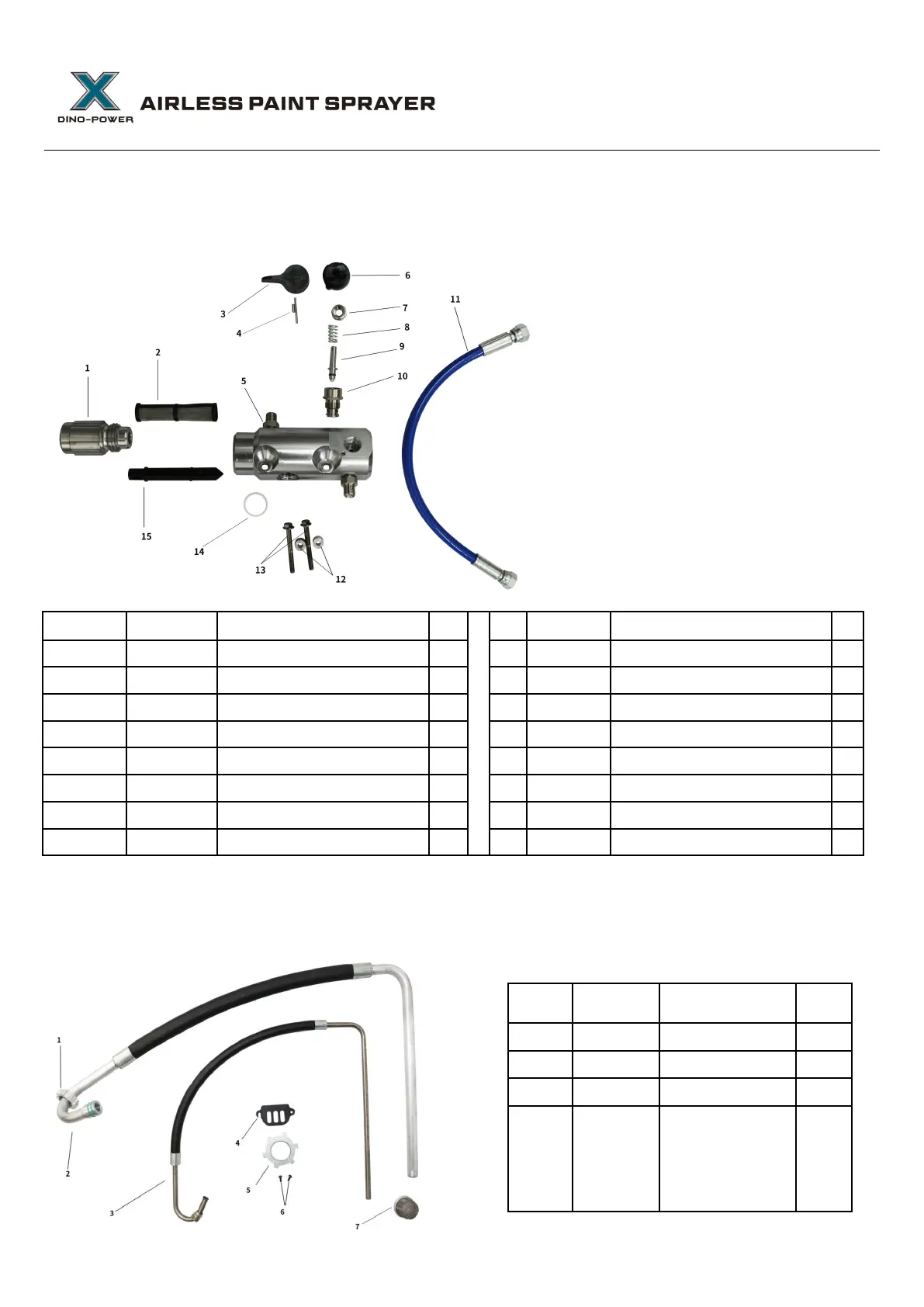

X24 Filter Housing
NO.
Series NO.
Description
Qty
NO.
Series NO.
Description
Qty
1
x24401
Manifold cap
1
9
x24409
Prime/spray valve stem
1
2
x24402
Pump filter
1
10
x24410
Prime/spray valve housing
1
3
x24403
Prime/spray valve handle
1
11
x24411
Hose
1
4
x24404
Prime/spray valve groove pin
1
12
x24412
Gasket
2
5
x24405
Manifold
1
13
x24413
Screw
2
6
x24406
Prime/spray valve base
1
14
x24414
O-ring
1
7
x24407
Prime/spray valve Gasket
1
15
x24415
Filter insert
1
8
x24408
Prime/spray valve Spring
1
X24 Suction hose Assembly
NO.
Series NO.
Description
Qty
1
x24801
Retainer
1
2
x24802
Suction hose
1
3
x24803
Drain hose
1
4
x24804
Pump rod cover
1
5
x24805
Retainer
1
6
x24806
Screw
1
7
x24807
Suction filter
1
