Dino-Power X24 User Manual

Parts List

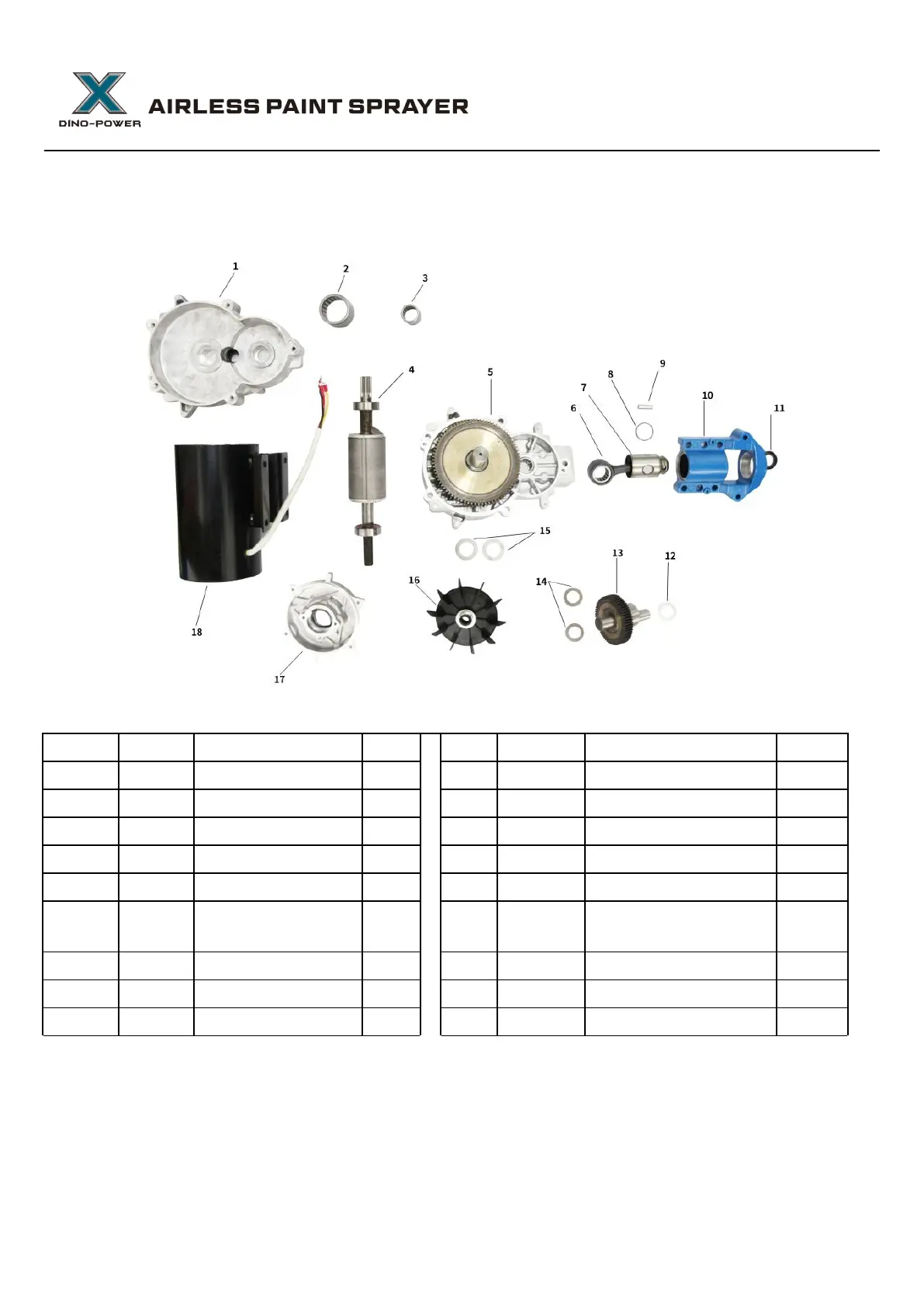

X45 Motor&Gear Box Assembly
No.
Series No.
Description
Qty
No.
Series No.
Description
Qty
1
x45201
Cover, gear box
1
10
x45210
Bearing housing
1
2
x45202
Bearing
1
11
x45211
Washer
1
3
x45203
Bearing
1
12
x45212
Washer
1
4
x45204
Rotor
1
13
x45213
Gear, crankshaft
1
5
x45205
Gear box
1
14
x45214
Washer
1
6
x45206
Needle bearing, connecting
rod
1
15
x45215
Washer
1
7
x45207
Connecting rod
1
16
x45216
Fan, motor
1
8
x45208
O-ring
1
17
x45217
Back cover, motor
1
9
x45209
Pin
1
18
x45218
Magnetic cylinder
1
