Dino-Power X24 User Manual

Parts List

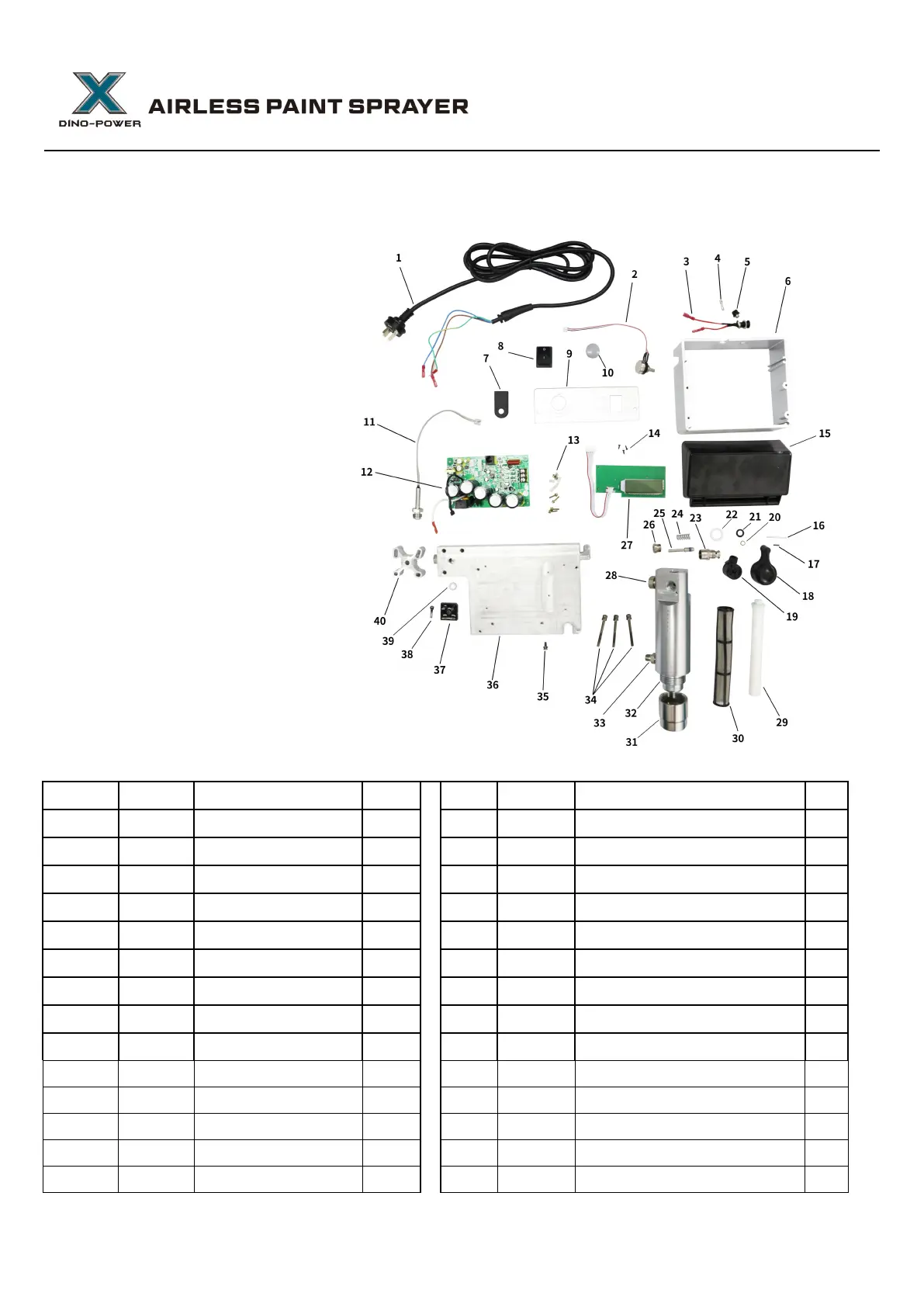

X45 Electric Pressure Control Board&Filter housing assembly
No.
Series No.
Description
Qty
No.
Series No.
Description
Qty
1
X45501
Power Cord
1
21
X45521
Washer
1
2
X45502
Pressure Regulator
1
22
X45522
O-ring
1
3
X45503
Fuse Holder
1
23
X45523
Prime/Spray Valve Housing
1
4
X45504
Fuse
1
24
X45524
Spring
1
5
X45505
Fuse Cap
1
25
X45525
Prime/Spray Valve Stem
1
6
X45506
Frame
1
26
X45526
Prime/Spray Valve Base
1
7
X45507
Screens
1
27
X45527
Circuit for Digital Pressure Display
1
8
X45508
Switch
1
28
X45528
Block Fitting
1
9
X45509
Transparent Screen
1
29
X45529
Manifold Filter Insert
1
10
X45510
Pressure Regulator Cover
1
30
X45530
Manifold Filter
1
11
X45511
Transducer
1
31
X45531
Manifold Filter Base
1
12
X45512
Circuit Board
1
32
X45532
Manifold Filter Housing
1
13
X45513
Screw/Pin
10
33
X45533
Outlet Fitting
1
14
X45514
Screw
3
34
X45534
Long Screw
3

Dino-Power X24 Specifications

General

Brand	Dino-Power
Model	X24
Category	Paint Sprayer
Language	English
