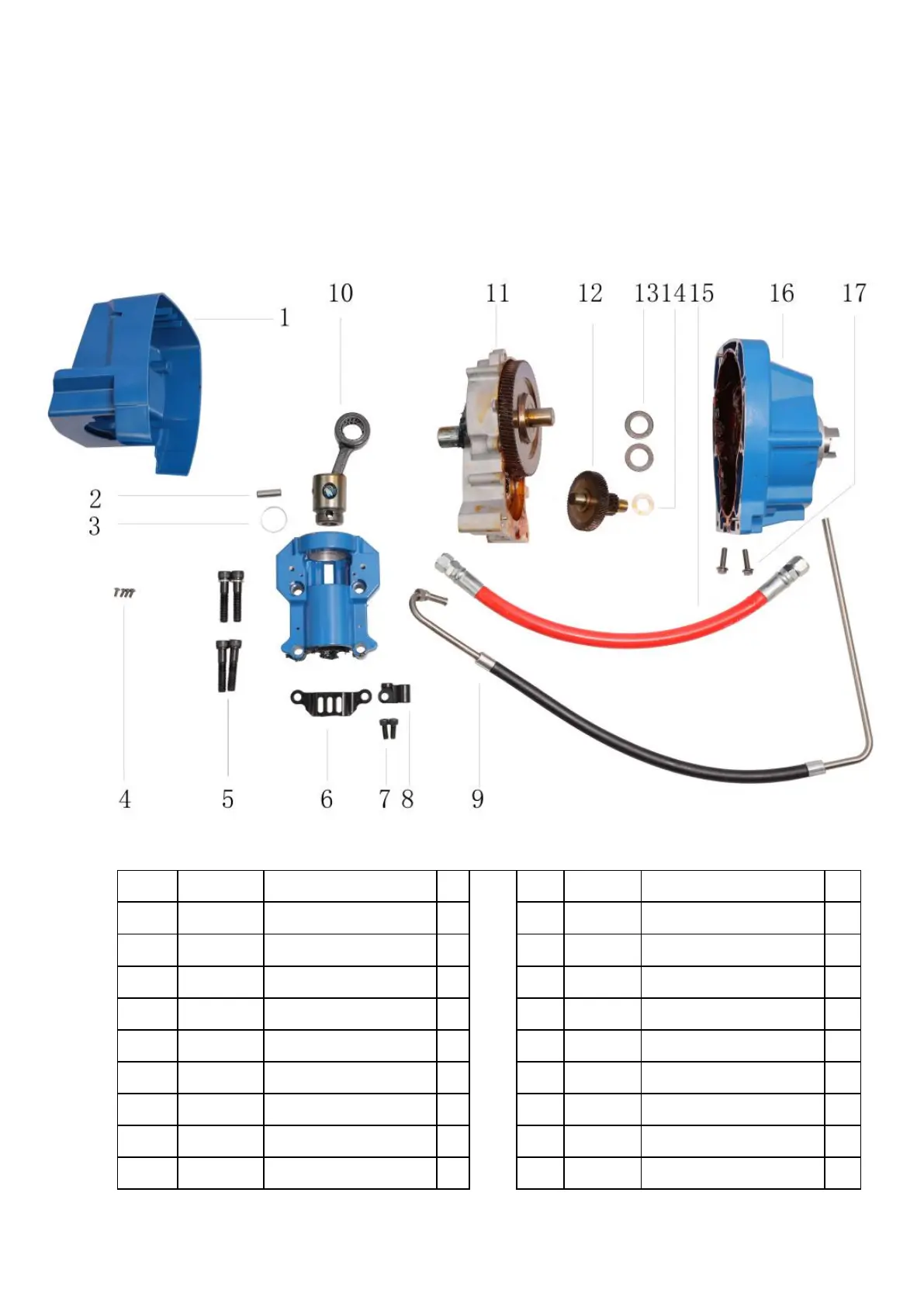

X80L Gear Box Assembly
No.
Serial No.
Description
Qty
No.
Serial No.
Description
Qty
1
X80201
Pinion housing
1
10
X80210
ROD, connecting
1
2
X80202
Pin
1
11
X80211
Pinion assembly
1
3
X80203
O-ring
1
12
X80212
GEAR, combination
1
4
X80204
Screw
4
13
X80213
Washer
2
5
X80205
Screw
4
14
X80214
Washer, thrust
1
6
X80206
Cover, piston rod
1
15
X80215
Hose, cpld
1
7
X80207
Screw
2
16
X80216
Drive housing
1
8
X80208
Clip, drain line
1
17
X80217
Screw
2
9
X80209
Hose, drain
1
18
X80218
Bracket, pump
1
