dipo INDUCTION TCK60-E - Installation

22
INSTALLATION
Installation
Installing Electricity

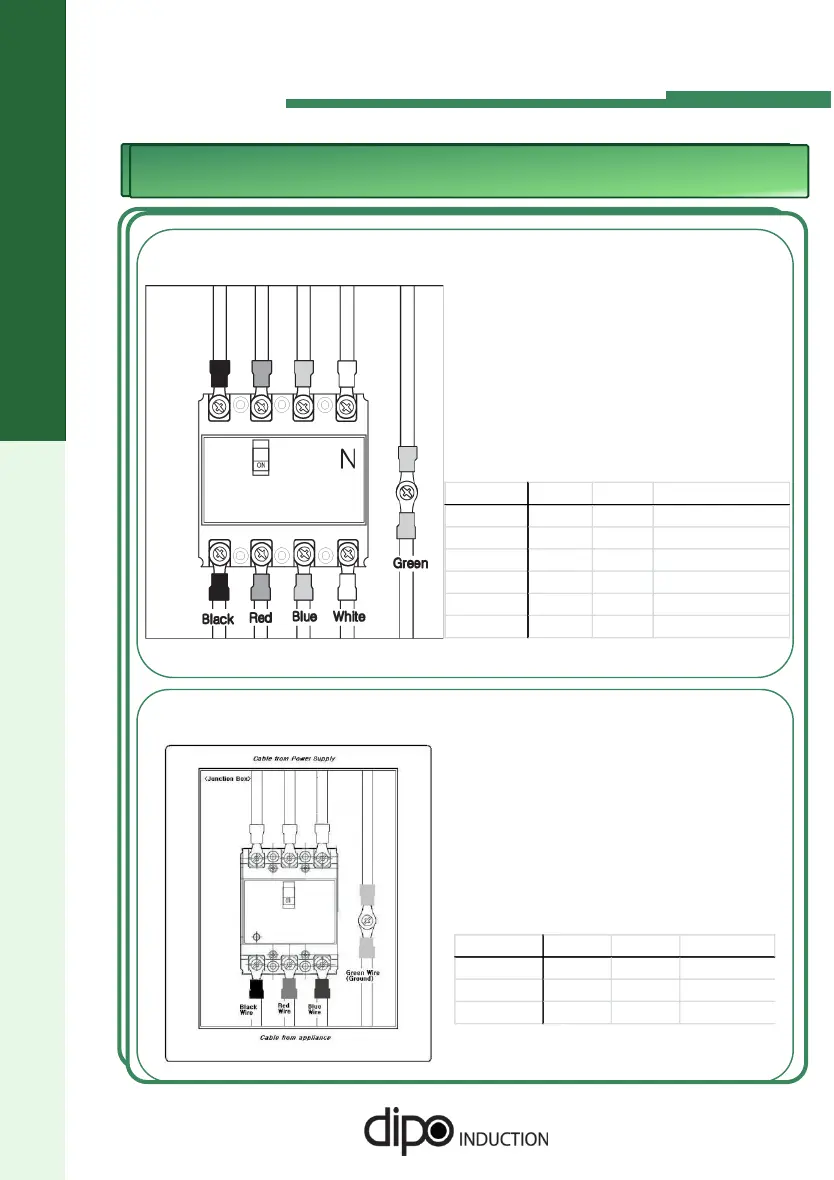

1. 380V 3 Phase circuit breaker
• Electrical specification
- 340~420V 3PH+N (Plus GND)
- Use circuit breaker with proper
ratings
- cable : Above 600V, 5 Wires
: Below 7kw(Wire Diameter : Above 4￠)
: Below 11kw(Wire Diameter : Above 6￠)
2. 220V 3 Phase circuit breaker
• Electrical specs according
to Models
Model Output Ampere Voltage
TCK070-E 7kw 11.5A 340~420V 3PH+N
TCK113-E 11kw 16A 340~420V 3PH+N
DIH070-E 7kw 11.5A 340~420V 3PH+N
DIH113-E 11kw 16A 340~420V 3PH+N
BK60(S)-E 5.5kw 8.5A 340~420V 3PH+N
BK70(S)-E 7kw 11.5A 340~420V 3PH+N
• Electrical specification
- 220~240V 3PH (Plus GND)
- Use circuit breaker with proper
ratings
- cable : Above 400V , 4 Wires
Model Output Ampere Voltage
TCK60-E 6kw 15A
220~240V 3PH
DIH602-E 6kw 16A
220~240V 3PH
BK602(S)-E 6kw 15A
220~240V 3PH
• Electrical specs according to
Models
