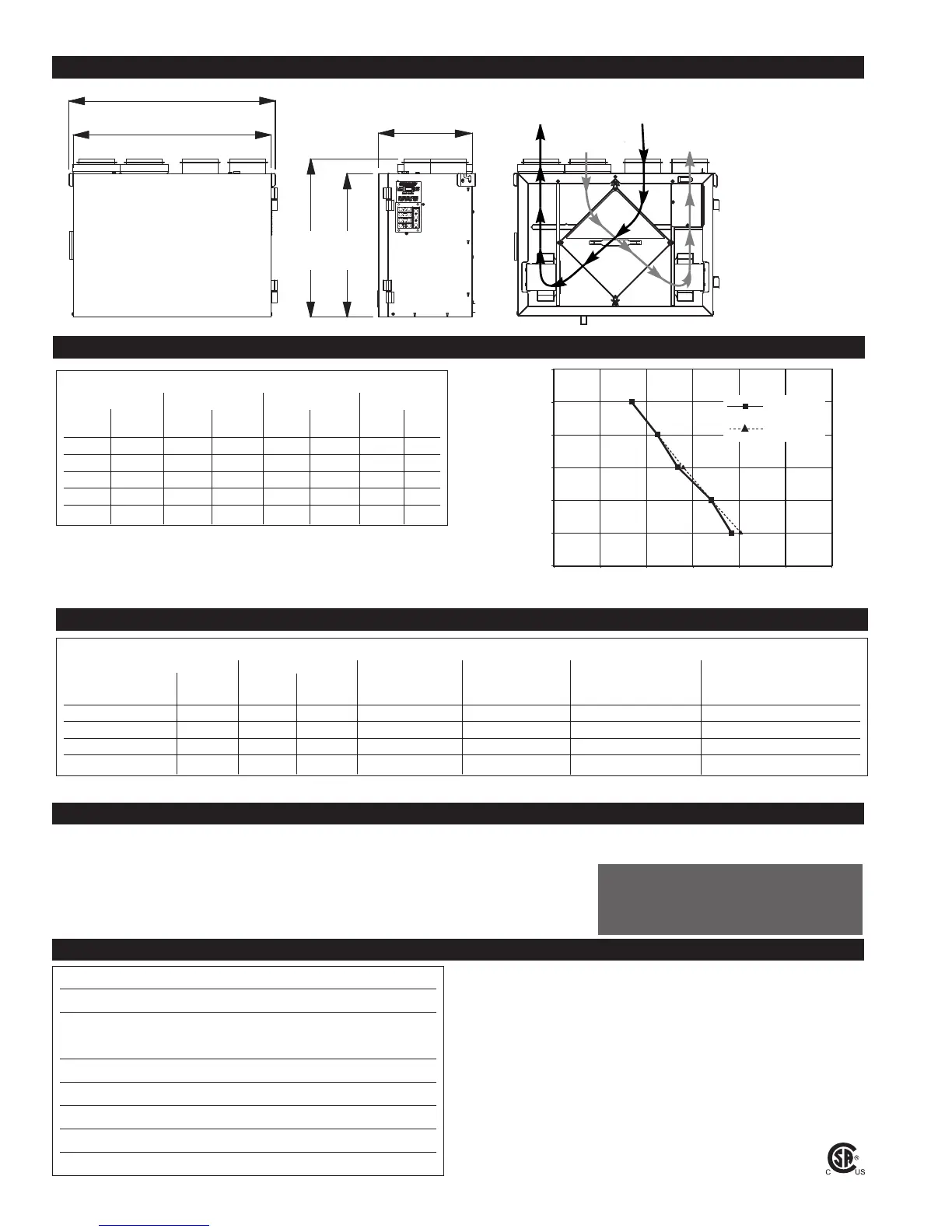

Direct Air PHRV - Page 4

4
Dimensions & Airflow
-
All units feature three foot plug-in power cord with 3-prong plug.
Submitted by: Date:
Qty: Model #:
Comments:
Project #:
Location:
Architect:
Engineer:
Contractor:
Specifications and Ratings
• Model: PHRV96
• Total assembled weight: 26 lbs (12kg)
• Cabinet: 24 ga. steel w/powder coat finish
• Motors: ebm motors w/backward curved blades
• Filters: 2 washable electrostatic filters
8.5" (216mm) x 8" (205mm) x 0.125" (3mm)
• Insulated with 1" (25 mm) aluminum foil-face
high density polystyrene foam to prevent
condensation and meet the requirements of
the UL 94HF.
• Core: Aluminum
8.5˝ (216mm) x 8.5˝ (216mm) x 8˝ (205mm)
• Supply & exhaust ducts: 4˝ (100mm)
• Mounting: Wall bracket included
• Electrical requirements:
Volts Frequency Amps Watts
115V
60Hz
0.36A 40W
3' plug-in power cor
d w/ 3-prong plug
• Continuous ventilation
mode of supply and
exhaust airstreams
•
10˝ (254mm) of clear-
ance is recommended
for removal of core
Pa in wg L/s cfm L/s cfm L/s cfm
25 0.1 45 96 47 99 49 104
50 0.2 40 85 41 88 41 88
75 0.3 32 67 33 69 34 72
100 0.4 26 56 27 58 28 58
125 0.5 20 42 20 43 20 43
EXT. STATIC
PRESSURE
NET SUPPLY
AIR FLOW
GROSS AIR FLOW
SUPPLY EXHAUST
˚C ˚F L/s cfm
Heating 0 32 26 55 36 57 67 –
0 32 32 68 40 55 63 –
0 32 39 83 40 54 60 –
-25 -13 34 72 35 53 66 –
SUPPLY
TEMPERATURE
NET
AIRFLOW
Ventilation Performance
Energy Performance
POWER
CONSUMED
WATTS
SENSIBLE
RECOVERY
EFFICIENCY
APPARENT
SENSIBLE EFFEC-
TIVENESS
LATENT
RECOVERY/MOISTURE
TRANSFER
0
0.1
0.2
0.3
0.4
0.5
0.6
0 25 50 75 100125 150
cfm (l/s = n x 0.47)
in w.g. (Pa = n x 248)
N
et Supply
Net Exhaust
Contacts
22.50"
(572mm)
21.50"
(546mm)
10.20"
(259mm)
17.20"
(436mm)
15.60"
(396mm)
Stale Air
To Outside
Stale Air
From Inside
Fresh Air
From Outside
Fresh Air
To Outside
