INSTALLATION EXAMPLES

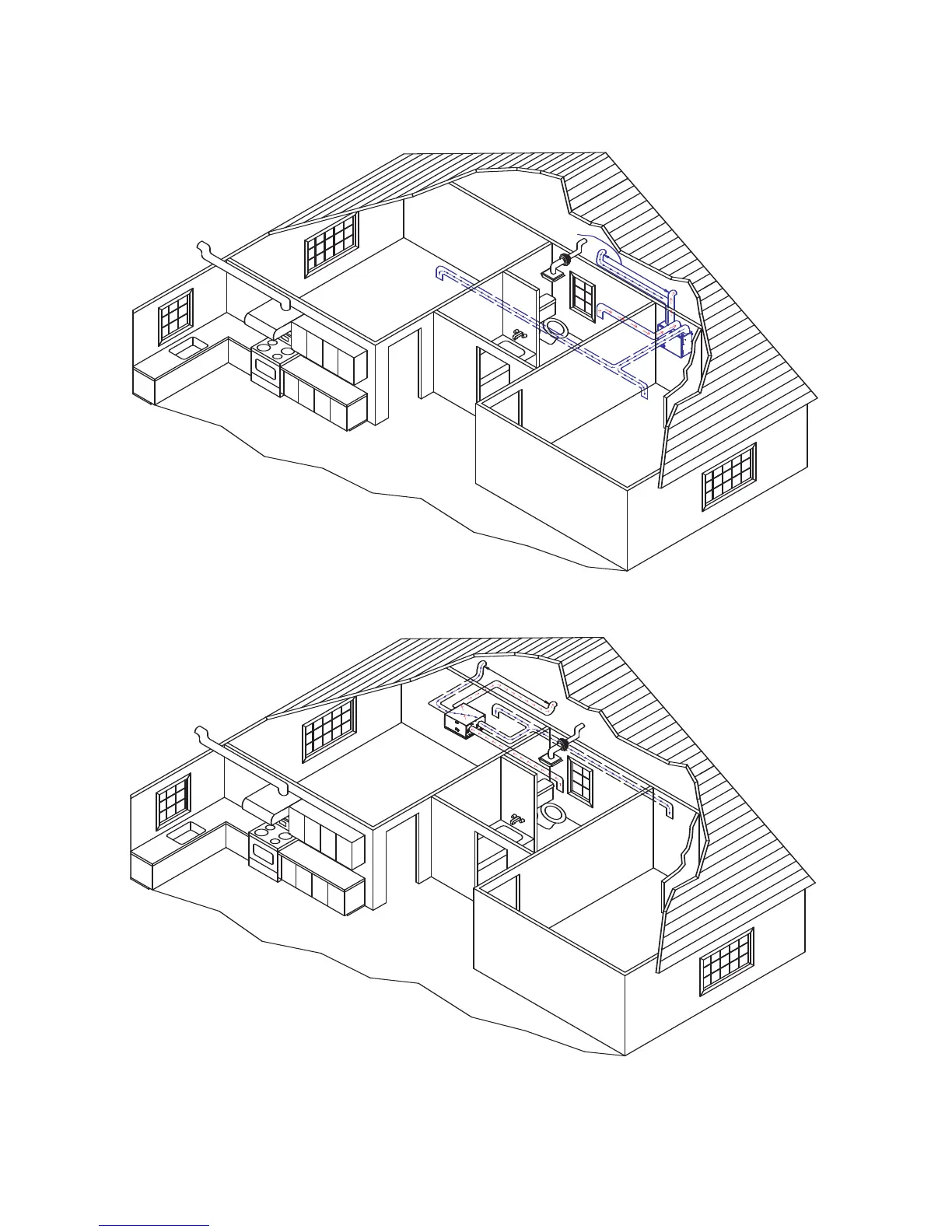

Example diagram only-duct configuration may change depending on model
Fully Dedicated System (suggested for new construction)
Stale air drawn from key areas of home (bathroom, kitchen, laundry)
Fresh air supplied to main living areas
NOTE* PHRV96 should be
mounted with its duct connec-
tions on top or similar.
To Next Page
