Dirna MiniCool COMPACT 3.0 N&D - Elektrischer Schaltplan

Default Icon
44 pages
Go to English
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
21
GE
Na
ºC
ºF
TEMP
ON/OFF

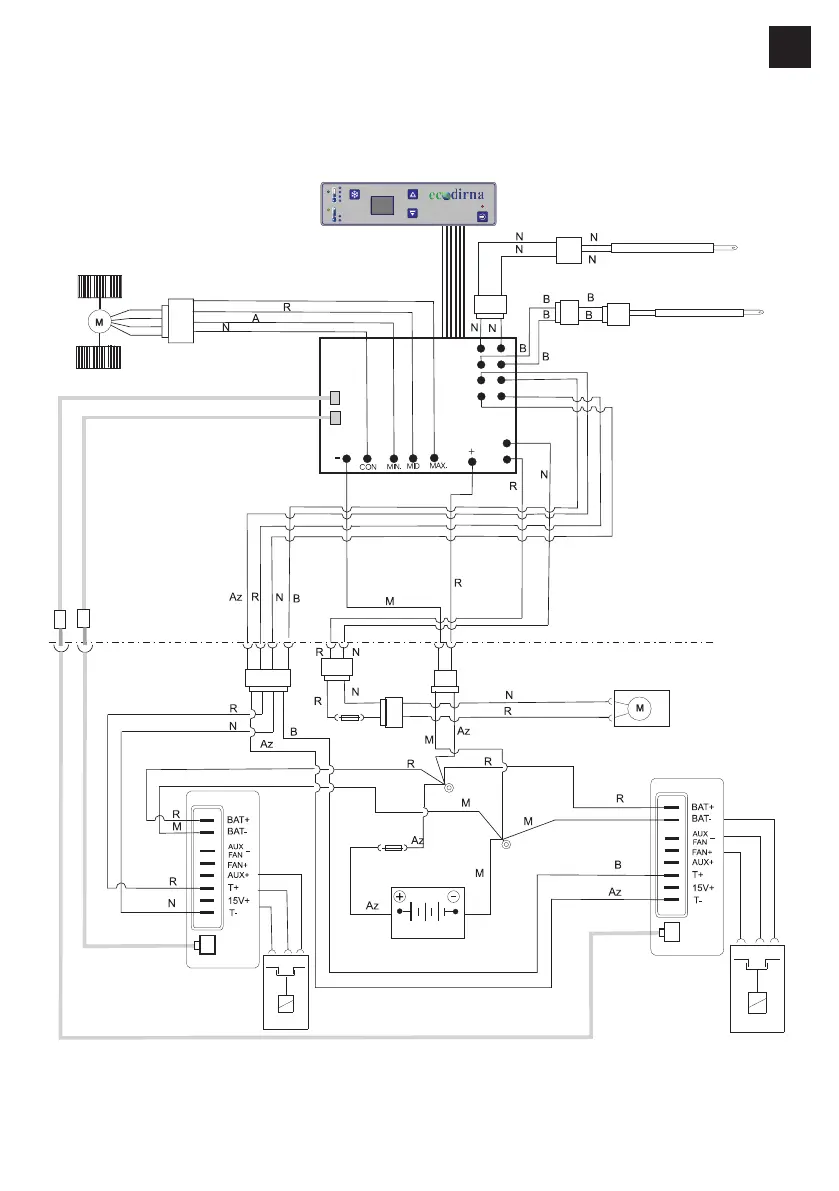

Elektrischer Schaltplan
Gebläse Innenraum
Elektroniksteuerung
Kommunikationskabel
elektronisches
Modul Kom-
pressor
Kompressor
Batterie (Fahrzeug)
Kompressor
Sicherung
50 A.
Sicherung
10 A.
Lüfter (Kondensator)
Flachbandleitung
Temperaturfühler (seitlich)
Frostschutzsonde (Verdampfer)
