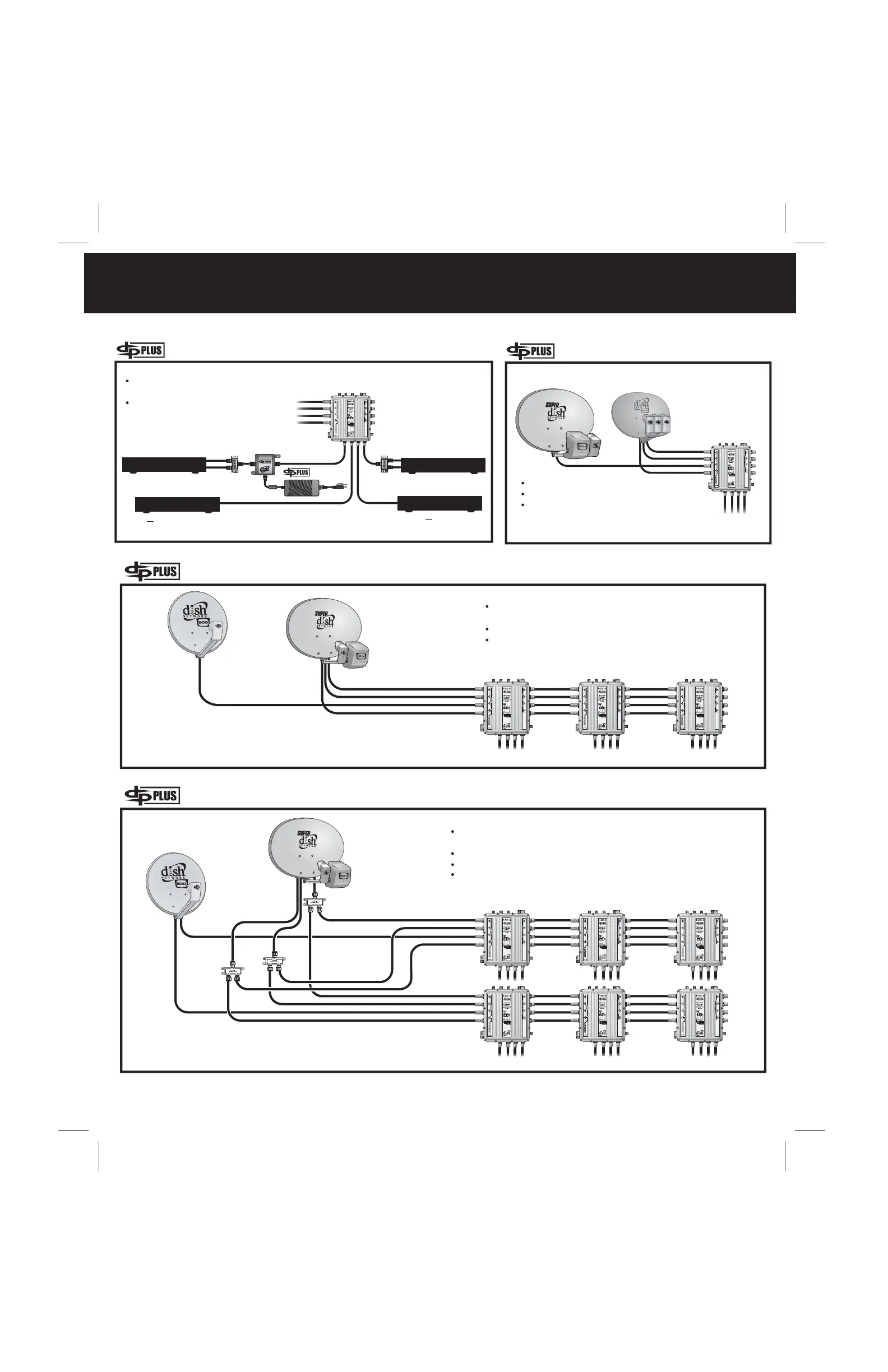

FOUR ORBITAL LOCATIONS
Four Orbital Locations, up to 48 Tuners
To Receiver Tuner Inputs
To Receiver
Tuner Inputs
DP Plus 44 DP Plus 44 DP Plus 44
(1) SuperDISH (110°, 119°, 105° or 110°, 119°, 121°) or
(1) DISH 1000 (110°, 119°, 129°)
(1) DP Dual on DISH 500 with I-Bracket (61.5° or 148°)
(2) DP-approved Splitters for any single port SuperDISH LNBs
Up to (6) DP Plus 44 Switches
SuperDISH
or DISH 1000
DISH 500
105°, 121° or 129° to Port 4
105°, 121° or 129° to Port 4
110° or 119°
110° or 119°
129°
105° or 121°
110° or 119°
110° or 119°
(1) DP Plus 44 Switch with
Power Inserter
DP Plus Separator(s) as
needed for single cable/
dual tuner installations
61.5° or 148°
61.5° or 148°
61.5° or 148°
Four Orbital Locations, up to 24 Tuners
To Receiver Tuner Inputs
DP Plus 44 DP Plus 44 DP Plus 44
SuperDISH
or DISH 1000
(1) SuperDISH (110°, 119°, 105° or 110°, 119°, 121°) or
(1) DISH 1000 (110°, 119°, 129°)
(1) DP Dual on DISH 500 with I-Bracket (61.5° or 148°)
Up to (3) DP Plus 44 Switches
(1) DISH 1000 (110°, 119°, 129°)
(1) SuperDISH (105° or 121°)
Up to (3) DP Plus 44 Switches
DISH 500
Each DP Plus 44 Switch requires a Power Inserter on port 1
Each DP Plus 44 Switch requires a Power Inserter on port 1
105°, 121° or
129° to Port 4
Grounding according to the National Electric Code (NEC) and all local electrical codes is required.
DP Plus 44 Switch Receiver Connectivity
Power
Inserter
DP PLUS DUAL TUNER
DP SINGLE TUNER
DP SINGLE TUNER
Or Legacy Receiver
Or Legacy Receiver
DP PLUS DUAL TUNER
DP Plus 44
To
Dish
Antennas
Each DP Plus 44 Switch requires a Power Inserter on port 1
See DP Plus 44 User's Guide for dish to switch
connecting requirementswhen used with Legacy receivers
Four Orbital Locations,
DISH 1000 and SuperDISH Antennas
DP Plus 44
DISH 1000
SuperDISH
To Receiver
Tuner Inputs
Each DP Plus 44 Switch requires
a Power Inserter on port 1
