1030/1230 - LUBRICATION AND MAINTENANCE 57
MAINTENANCE SCHEDULE
1030/1230 - LUBRICATION AND MAINTENANCE 57
MAINTENANCE SCHEDULE

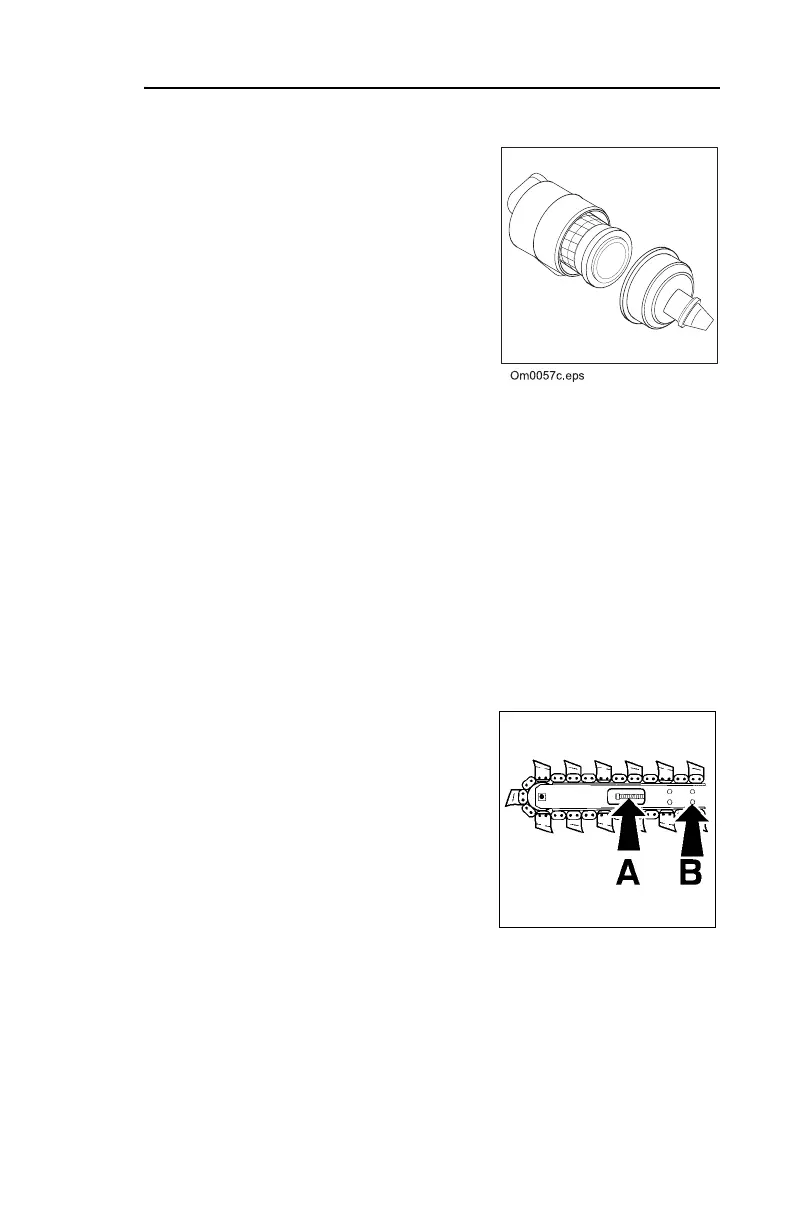

Remote Air Cleaner
Change optional air cleaner paper
element as needed.
• Remove air cleaner cover.
• Remove paper element and
replace.
NOTICE: Use of this option does
not eliminate the need for proper
maintenance of standard air filter.
Digging Chain Tension
Check digging chain regularly and adjust as needed.
Adjustment Screw
Digging chain is properly tensioned when chain can be moved
.5” (13 mm) up or down. To adjust digging chain tension:
• Loosen four clamp bolts (B) so
that boom slides freely.
• Lossen jam nut on adjustment
screw (A).
• Turn adjustment screw
clockwise to tighten digging
chain or counterclockwise to
loosen digging chain.
• When proper tension is
reached, tighten jam nut and
torque clamp bolts to 75 ft•lb
(102 N•m).
om1565
Remote Air Cleaner
Change optional air cleaner paper
element as needed.
• Remove air cleaner cover.
• Remove paper element and
replace.
NOTICE: Use of this option does
not eliminate the need for proper
maintenance of standard air filter.
Digging Chain Tension
Check digging chain regularly and adjust as needed.
Adjustment Screw
Digging chain is properly tensioned when chain can be moved
.5” (13 mm) up or down. To adjust digging chain tension:
• Loosen four clamp bolts (B) so
that boom slides freely.
• Lossen jam nut on adjustment
screw (A).
• Turn adjustment screw
clockwise to tighten digging
chain or counterclockwise to
loosen digging chain.
• When proper tension is
reached, tighten jam nut and
torque clamp bolts to 75 ft•lb
(102 N•m).
om1565

Ditch Witch 1030 Specifications

General

Fuel	Diesel
Transmission	Hydrostatic
Digging Depth	48 in (121.9 cm)
Trenching Width	6 inches
Drive System	4WD
