58 1030/1230 - LUBRICATION AND MAINTENANCE
MAINTENANCE SCHEDULE
58 1030/1230 - LUBRICATION AND MAINTENANCE
MAINTENANCE SCHEDULE

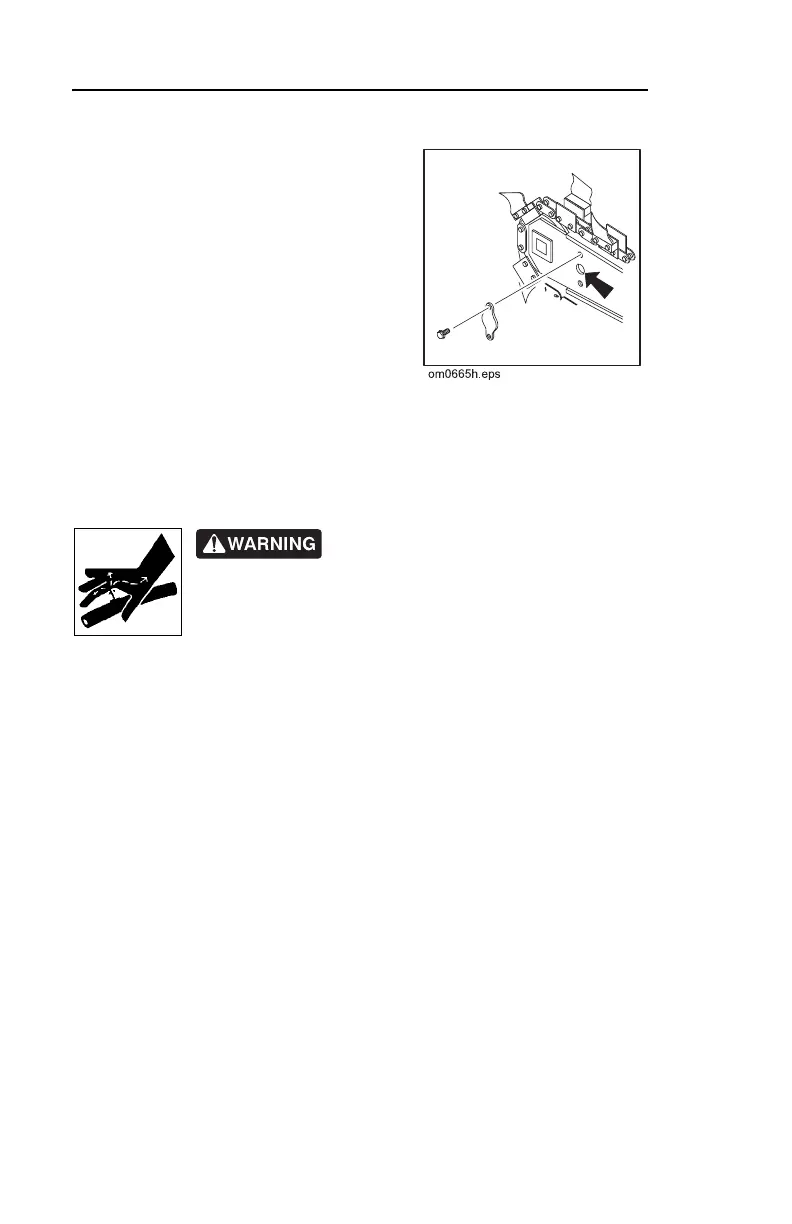

Grease Cylinder:
To tighten digging chain, pump
MPG into cylinder at check valve
zerk.
To loosen digging chain, stand on opposite side of boom and
unscrew check valve zerk to release grease.
NOTICE: Do not overtighten
chain. Overtightening will cause
chain stretch, loss of machine
performance, and possible
premature chain failure.
Fluid pressure could pierce skin
and cause injury or death. Stay away.
NOTICE: Service digging boom grease cylinder only while
standing on opposite side of boom. Wear gloves and safety
glasses and cover fitting with cloth when relieving pressure in
cylinder.
Grease Cylinder:
To tighten digging chain, pump
MPG into cylinder at check valve
zerk.
To loosen digging chain, stand on opposite side of boom and
unscrew check valve zerk to release grease.
NOTICE: Do not overtighten
chain. Overtightening will cause
chain stretch, loss of machine
performance, and possible
premature chain failure.
Fluid pressure could pierce skin
and cause injury or death. Stay away.
NOTICE: Service digging boom grease cylinder only while
standing on opposite side of boom. Wear gloves and safety
glasses and cover fitting with cloth when relieving pressure in
cylinder.

Ditch Witch 1030 Specifications

General

Fuel	Diesel
Transmission	Hydrostatic
Digging Depth	48 in (121.9 cm)
Trenching Width	6 inches
Drive System	4WD
