The JT920L directional drilling unit is a self-contained unit that
can be connected to a fluid unit with only one electric line and one
fluid hose.
The JT920L features rubber tracks, genuine Ditch Witch pipe, a
pipe loader and pipe box, onboard anchoring system, onboard
fluid system, cold start kit, and simple, precise controls. Optional
equipment includes a Subsite 750 Display that can be mounted
beside the control console.
The JT920L directional drilling unit can be used with Ditch Witch
drilling fluid units and Subsite locating equipment.

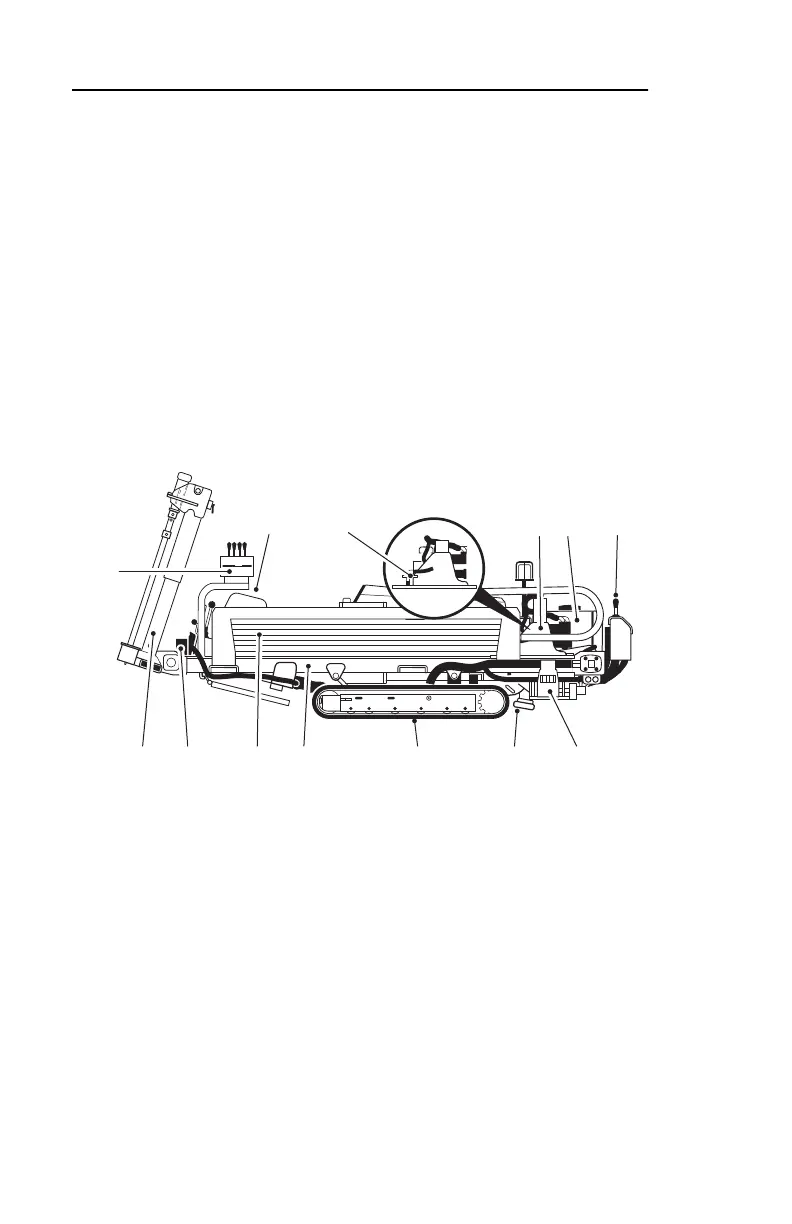

1. Operator station 8. Tracks
2. Spindle 9. Frame
3. Carriage 10. Drill pipe box
4. Water tank 11. Front wrench
5. Set-up/drive controls 12. Anchoring system
6. Drilling fluid pump 13. Anchoring controls
7. Rear stabilizer
1
3
4
5
6789101112
13
2
om0109c.eps
The JT920L directional drilling unit is a self-contained unit that
can be connected to a fluid unit with only one electric line and one
fluid hose.
The JT920L features rubber tracks, genuine Ditch Witch pipe, a
pipe loader and pipe box, onboard anchoring system, onboard
fluid system, cold start kit, and simple, precise controls. Optional
equipment includes a Subsite 750 Display that can be mounted
beside the control console.
The JT920L directional drilling unit can be used with Ditch Witch
drilling fluid units and Subsite locating equipment.
1. Operator station 8. Tracks
2. Spindle 9. Frame
3. Carriage 10. Drill pipe box
4. Water tank 11. Front wrench
5. Set-up/drive controls 12. Anchoring system
6. Drilling fluid pump 13. Anchoring controls
7. Rear stabilizer
1
3
4
5
6789101112
13
2
om0109c.eps
