Service - 152
RT80Q Operator’s Manual
10 Hour

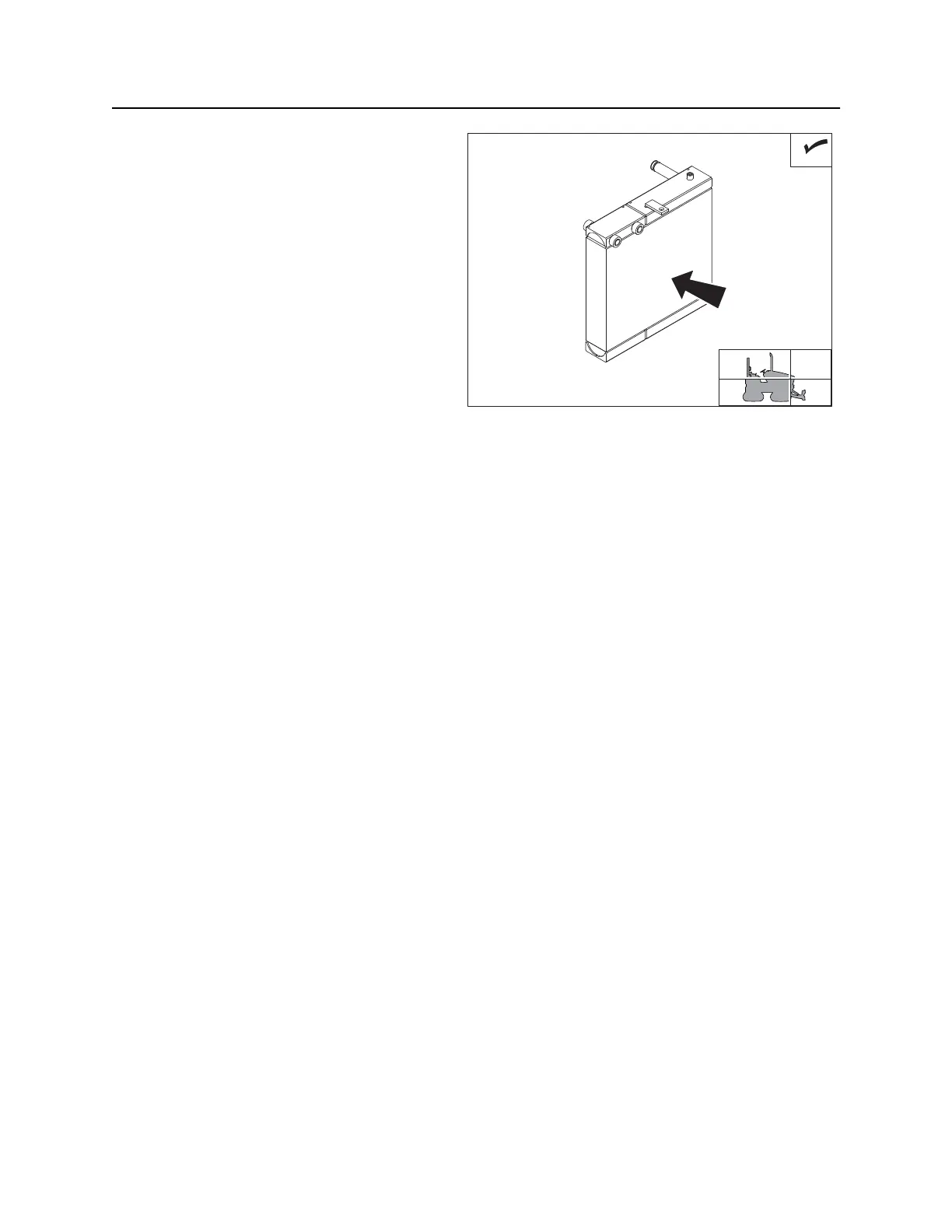

Check Radiator/Oil Cooler
Check radiator/oil cooler for dirt, grass, and other
debris every 10 hours. Clean with compressed
air or spray wash as needed. Be careful not to
damage fins with high pressure air or water.
Check more often if operating in dusty or grassy
conditions.
t33om033w
.eps
152
154
Table of Contents
Overview
2
Table of Contents
2
Serial Number Location
3
Equipment Modification
4
Intended Use
4
Unit Components
5
About this Manual
6
Bulleted Lists
6
Numbered Lists
6
Operator Orientation
6
Foreword
8
Table of Contents
10
Safety
12
Guidelines
13
Safety Alert Classifications
14
Safety Alerts
15
Emergency Procedures
18
Electric Strike Description
18
If an Electric Line Is Damaged
19
If a Gas Line Is Damaged
20
If a Fiber Optic Cable Is Damaged
21
If Machine Catches on Fire
21
Controls
22
Center Console
23
Graphic Display
27
Interlock Screen
30
Menu Screen
32
Gauge Screens
41
Right Console
45
Seat Console
48
Seat Deck
50
Trencher Controls
52
Plow Controls
54
Combo Controls
56
Saw Controls
59
Backhoe Console
61
Drill Controls
65
Battery Disconnect
66
Operation Overview
68
Prepare
72
Gather Information
73
Arrange for Traffic Control
73
Notify One-Call Services
73
Plan for Emergency Services
73
Review Job Plan
73
Inspect Site
74
Identify Hazards
74
Classify Jobsite
75
Inspect Jobsite
75
Select a Classification
75
Apply Precautions
76
Check Supplies and Prepare Equipment
77
Supplies
77
Fluid Levels
77
Condition and Function
77
Accessories
77
Drive
78
Start Unit
79
Drive
81
Safe Slope Operation
82
Shut down
83
Transport
84
Lift
85
Tie down
88
Haul
91
Tow
94
Trench
96
Plow
102
Reel Carrier
110
Saw
114
Setup
115
Before First Use
115
Normal Use
116
Operation
117
Backhoe
118
Drill
124
Prepare Jobsite and Equipment
126
Approach Trench (1)
126
Target Trench (2)
126
Drill Pipe and Equipment
127
Drill
128
Using Drill String Guide
128
Backream
129
Add Rod
129
Disassemble Joints
130
Systems and Equipment
132
Cruise Control
133
Operate Cruise Control
133
Chain, Teeth, and Sprockets
135
Chain and Tooth Maintenance
135
Chain Types
135
Chain Selection
136
Diagnostic Trouble Codes
137
Optional Equipment
138
RT80Q Tractor
138
H810/H813 Trencher
138
H832 Plow
138
H853 Combo
139
RC80 Reel Carrier
139
HD630 Saw
139
Counterweighting
139
Complete the Job
140
Service
142
Service Precautions
143
Lubrication Overview
144
Recommended Lubricants/Service Key
145
Approved Fuel
146
Approved Coolant
146
Engine Oil Temperature Chart
147
10 Hour
148
50 Hour
161
Hour
163
250 Hour
167
500 Hour
169
1000 Hour
174
2000 Hour
176
5000 Hour
177
As Needed
178
Specifications
188
Specifications
189
Capacities
191
Support
206
Service Record
210
Service Record
211
