RT80Q Operator’s Manual
Service - 153
10 Hour
Trencher

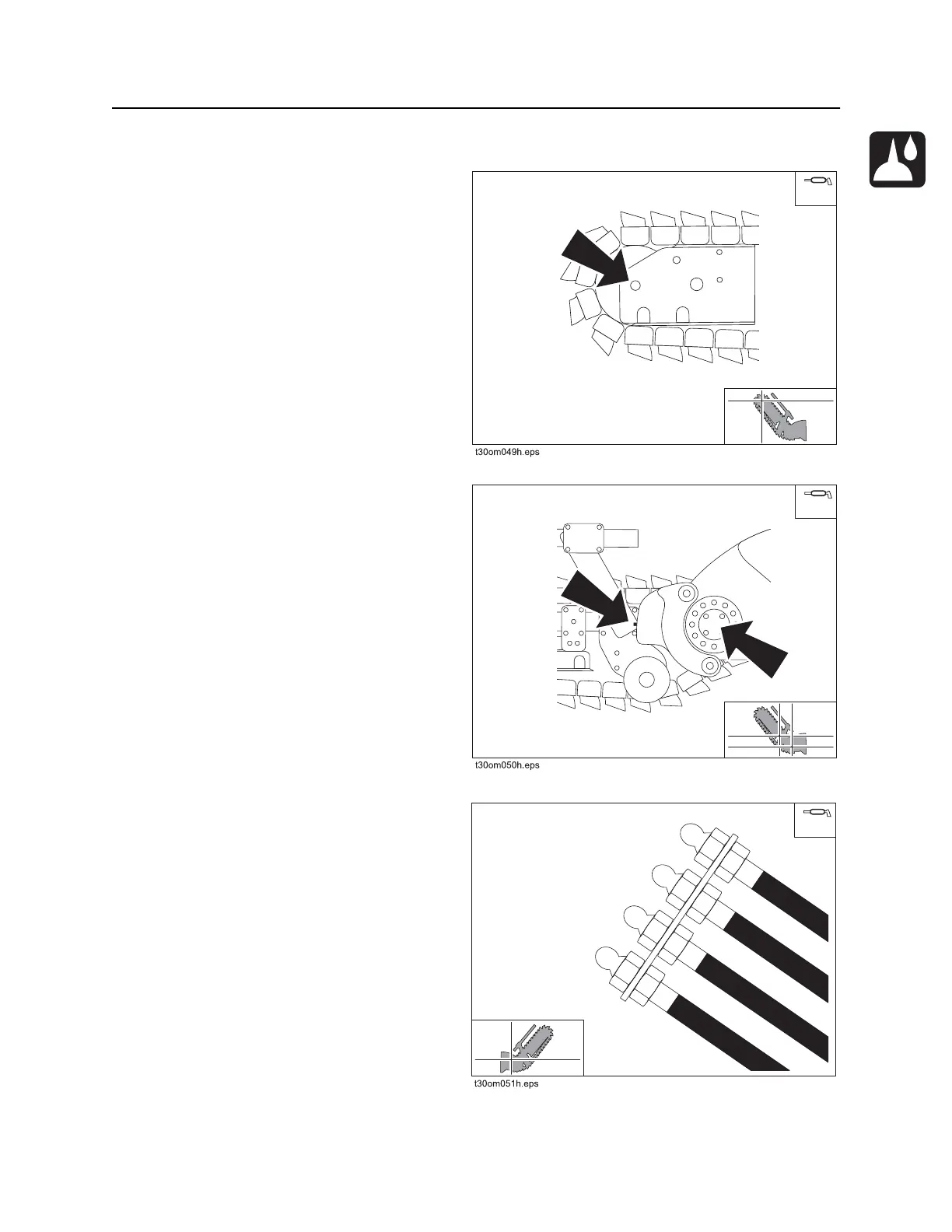

Lube Trencher Tail Roller
Wipe zerks clean and lube every 10 hours with
EPG. Lube roller zerks on both sides of boom.
Lube Trencher Pivot
Wipe five zerks located on right of trencher pivot
clean and lube every 10 hours with EPG.
Wipe four zerks located on left of trencher pivot
clean and lube every 10 hours with EPG.
