Service - 158
RT80Q Operator’s Manual
10 Hour
Plow

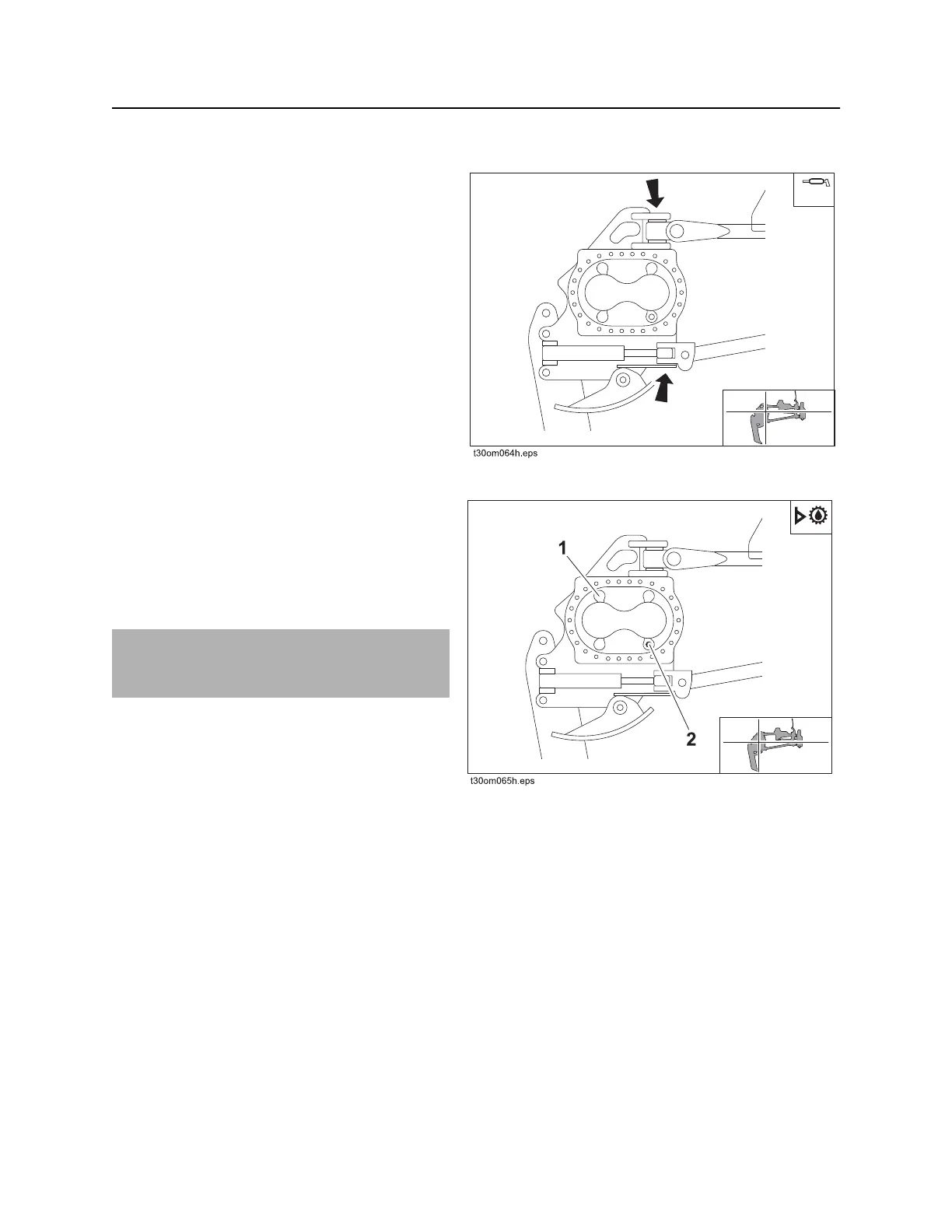

Lube Plow Pivots
Lube pivots every 10 hours with EPG.
Check Plow Vibrator Oil
Check plow vibrator oil on each side of vibrator
every 10 hours. With vibrator horizontal, oil
should be halfway up sight glass (2). Add MPL as
needed at fill (1).
IMPORTANT:
Do not add oil to plow vibrator
when hot. Let plow vibrator cool before
removing fill plug.
158
