RT80Q Operator’s Manual Specifications - 191
H810 Trencher
H810 Trencher

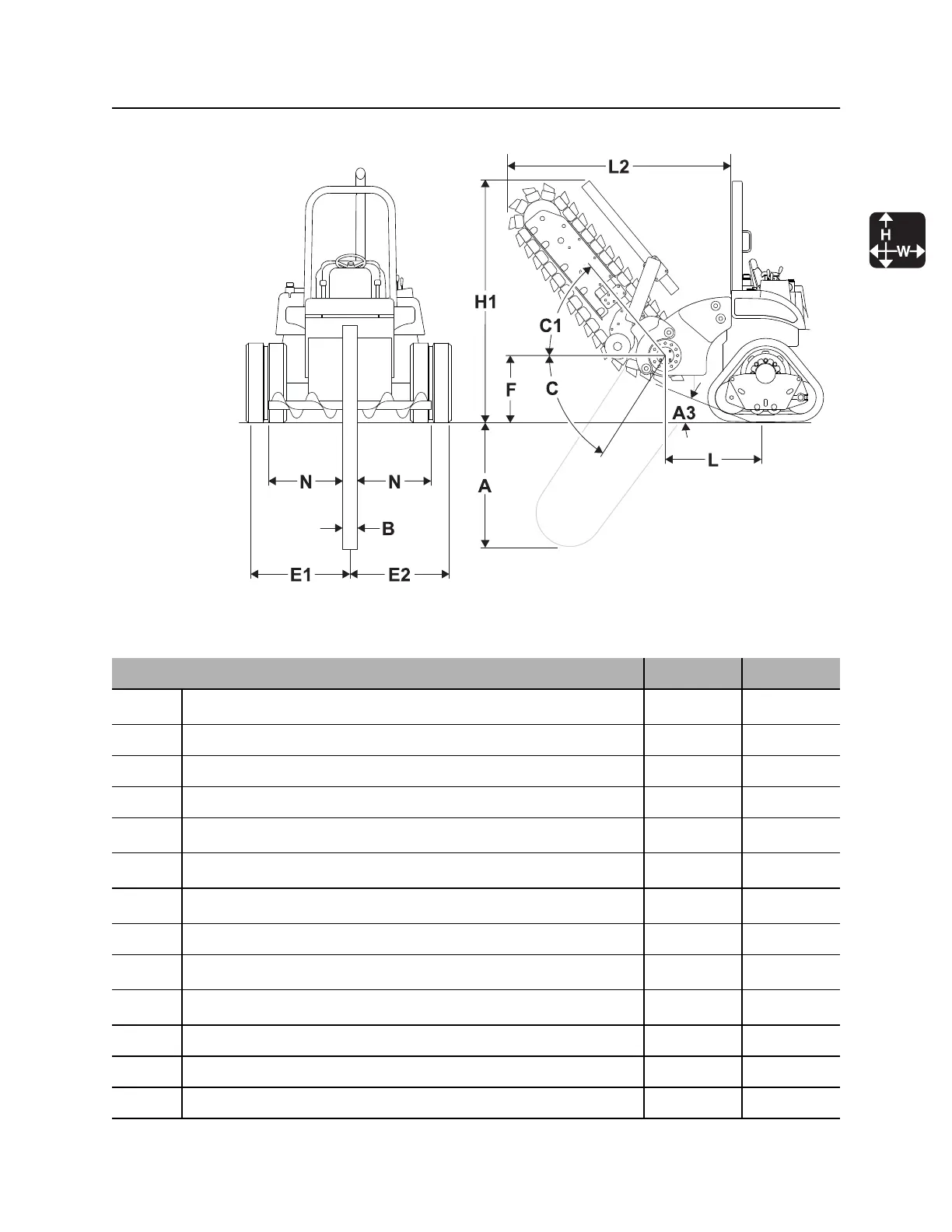

Dimensions U.S. Metric
A
3
Angle of departure 30° 30°
A Trench depth, maximum 93 in 2.36 m
B Trench width, maximum 24 in 610 mm
C Boom travel down 65° 65°
C
1
Boom travel up 50° 50°
E
1
Centerline of trench to outside edge, left 48.1 in 1.2 m
E
2
Centerline of trench to outside edge, right 39.1 in 994 mm
F Headshaft height, digging chain 36 in 914 mm
H
1
Transport height 128 in 3.25 m
L
2
Transport length 120 in 3.05 m
L Headshaft overhang 46 in 1.2 m
N Soil discharge reach 33 in 843 mm
Attachment weight 1750 lb 794 kg
t33om056w.eps
