RT80Q Operator’s Manual Specifications - 193
H813 Trencher
H813 Trencher

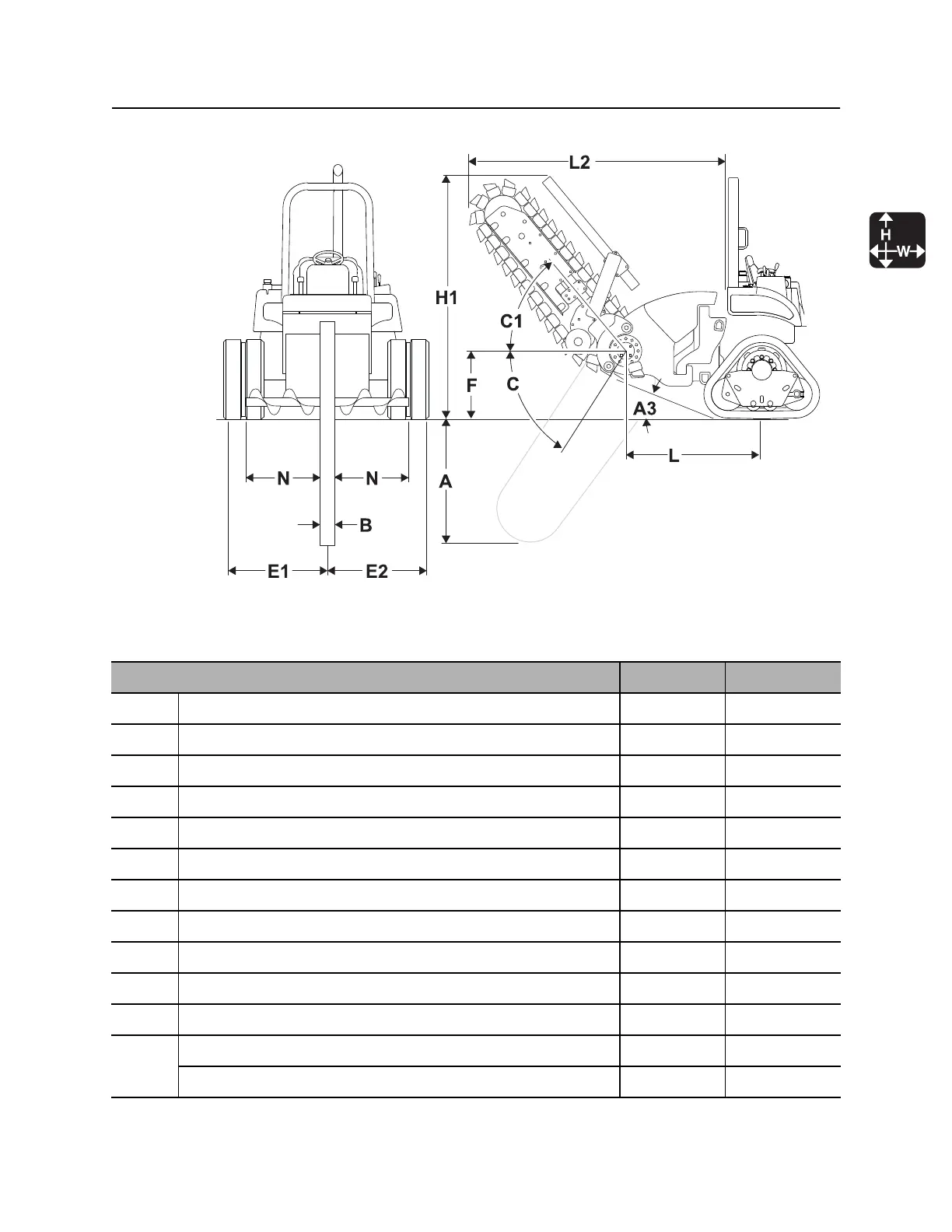

Dimensions U.S. Metric
A3 Angle of departure 26.6° 26.6°
A Trench depth, maximum 58.4 in 1.5 m
B Trench width, maximum 12 in 305 mm
C Boom travel down 55° 55°
C1 Boom travel up 51° 51°
E1 Centerline of trench to outside edge, left 29.1-72.6 in 739-1844 mm
E2 Centerline of trench to outside edge, right 14.6-58.1 in 371-1476 mm
F Headshaft height, digging chain 32.6 in 828 mm
H1 Transport height 125.6 in 3.2 m
L2 Transport length, fully raised 93.5 in 2.4 m
L Headshaft overhang 48 in 1.2 m
N Soil discharge reach, short auger 17 in 430 mm
Soil discharge reach, long auger 30 in 760 mm
