18
FOR FURTHER INSTALLATION ADVICE PLEASE CALL THE TECHNICAL SUPPORT HELPLINE ON 0115 900 5858.
NOTE: To ensure proper function, DO NOT overextend or bend the hose. Make sure that there is no obstacle around the
air outlet of the exhaust hose (in the range of 500mm) in order to the exhaust system works properly. All the illustrations in
this manual are for explanation purpose only. Your air conditioner may be slightly different. The actual shape shall prevail.

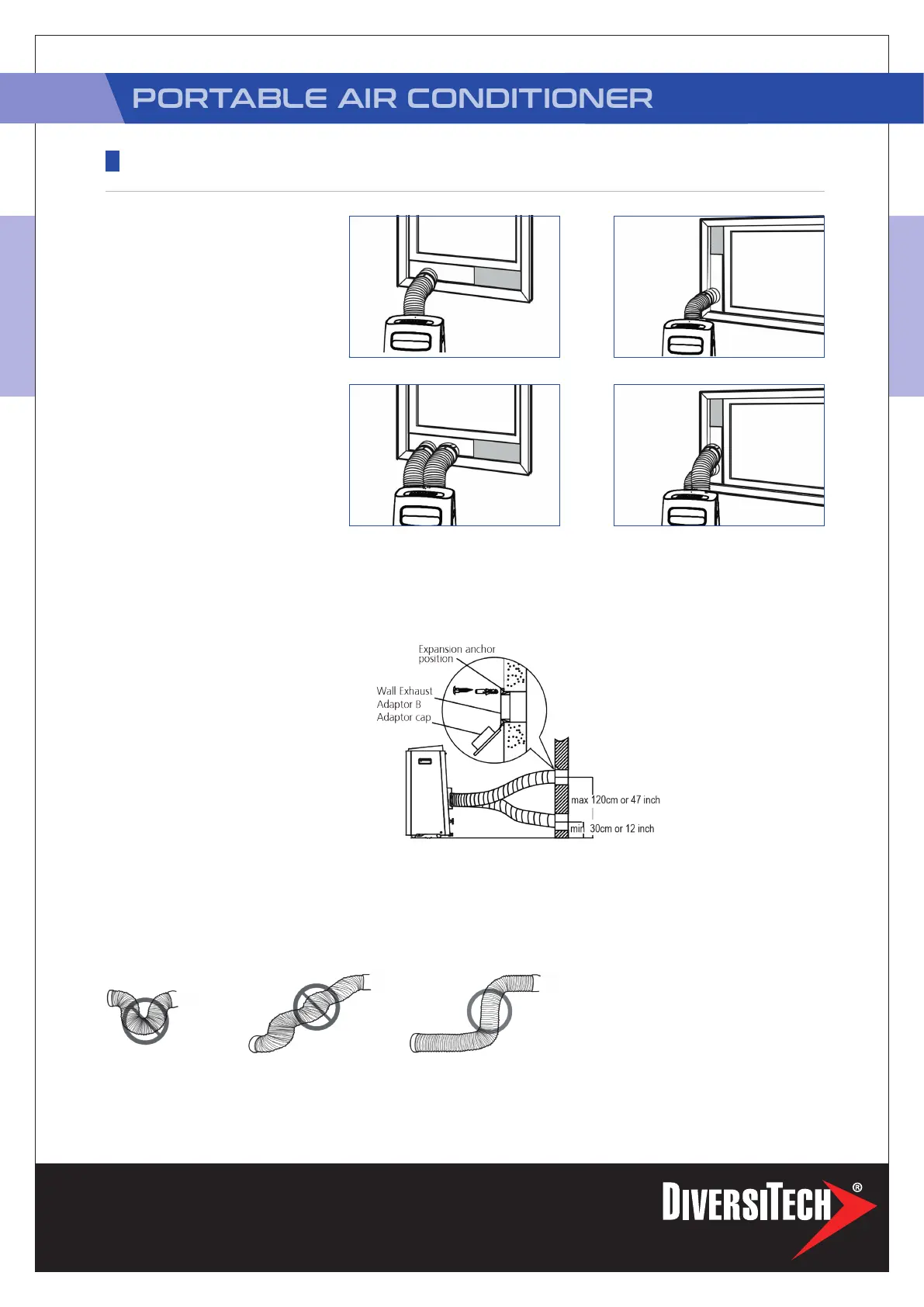

INSTALLATION
OR
OR
5. Insert the window slider adaptor
into the hole of the window slider.
1. Cut a 125mm (4.9inch) hole into
the wall for the Wall Exhaust
Adaptor B.
2. Secure the Wall Exhaust Adaptor
B to the wall using the four
Anchors and Screws provided in
the kit.
3. Connect the Exhaust Hose
Assembly(with Wall Exhaust
Adaptor A) to the Wall Exhaust
Adaptor B.
MODEL A
MODEL A
MODEL B
NOTE: COVER THE HOLE USING THE
ADAPTOR CAP WHEN NOT IN USE.
MODEL B
TYPE 2: WALL INSTALLATION
(FOR SOME MODELS)
PAC-H-12
To Next Page
