DIVERSITECH TYPHOON WX Series - Dimensions with Downdraft Table

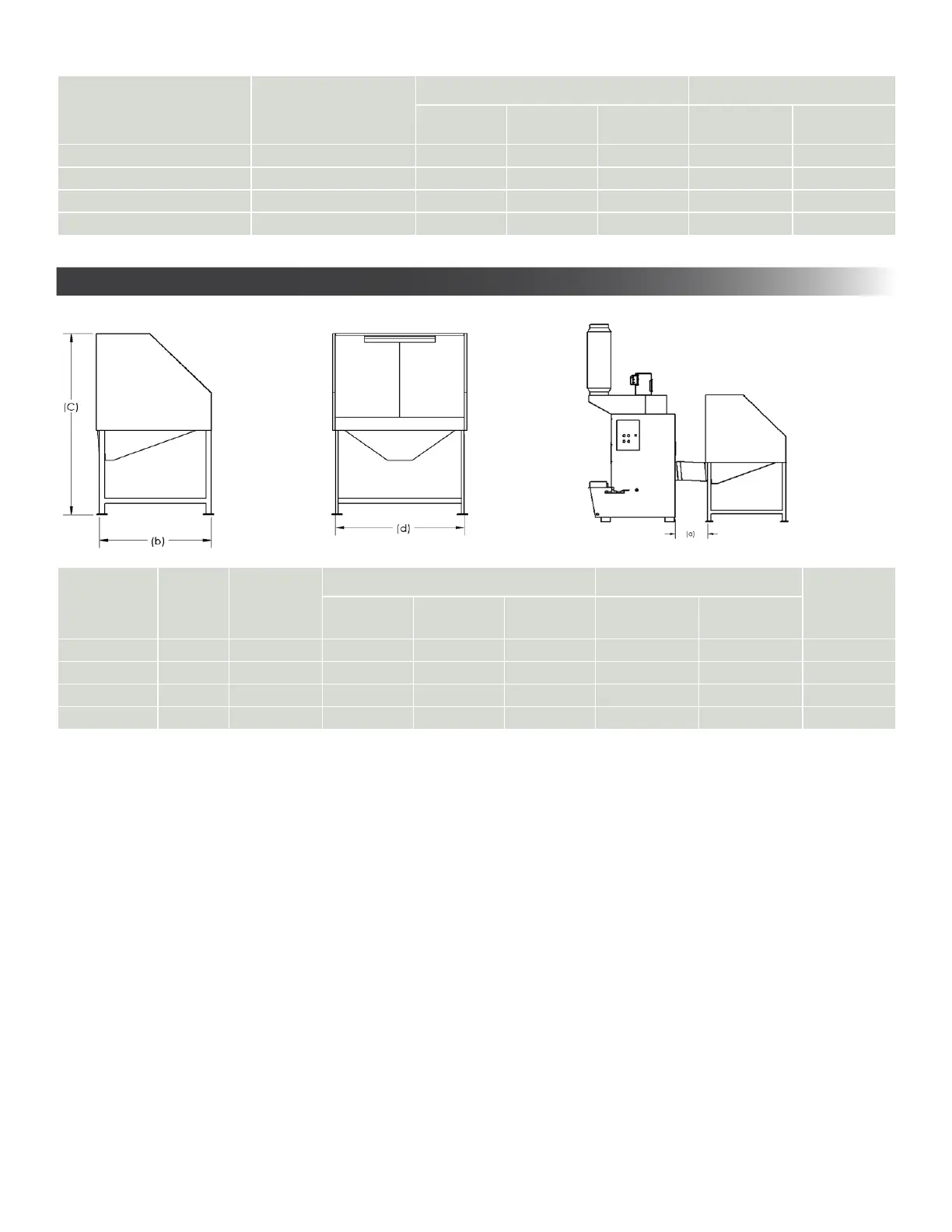

2.4 Dimensions with optional empty Downdraft Table
Model
Inlet Collar
Diameter
(in.)
Footprint Water
Length
[b]
Height
[C]
Width
[d]
Supply
(in.)
Drain
(in.)
WX-1200 6 34” 86” 32” 1/2” NPT 1 ½” NPT
WX-3000 10 47” 109” 44” 1/2” NPT 1 ½” NPT
WX-5000 16 61” 117 ” 57” 1/2” NPT 1 ½” NPT
WX-6500 16 67” 129” 67” 1/2” NPT 1 ½” NPT
1. Water Level is marked on each unit.
Collector
Model
Table
Model
Optimal
Connection
[a]
Footprint Water Water
Level
(in.)
Length
[b]
Height
[C]
Width
[d]
Supply
(in.)
Drain
(in.)
WX-1200 MINI 15” 36” 36” 30” 1/2” NP T 1 ½” NPT ±0.5”
WX-3000 3’x4 15” 48” 36” 42” 1/2” NPT 1 ½” NPT ±0.5”
WX-5000 3’x6 20” 72” 36” 42” 1/2” NPT 1 ½” NPT ±0.5”
WX-6500 3’x8 20” 96” 36” 42” 1/2” NPT 1 ½” NPT ±0.5”
