1592020110 XR01-02CX GB r1.2 24.07.2015 XR01-02CX 3/3

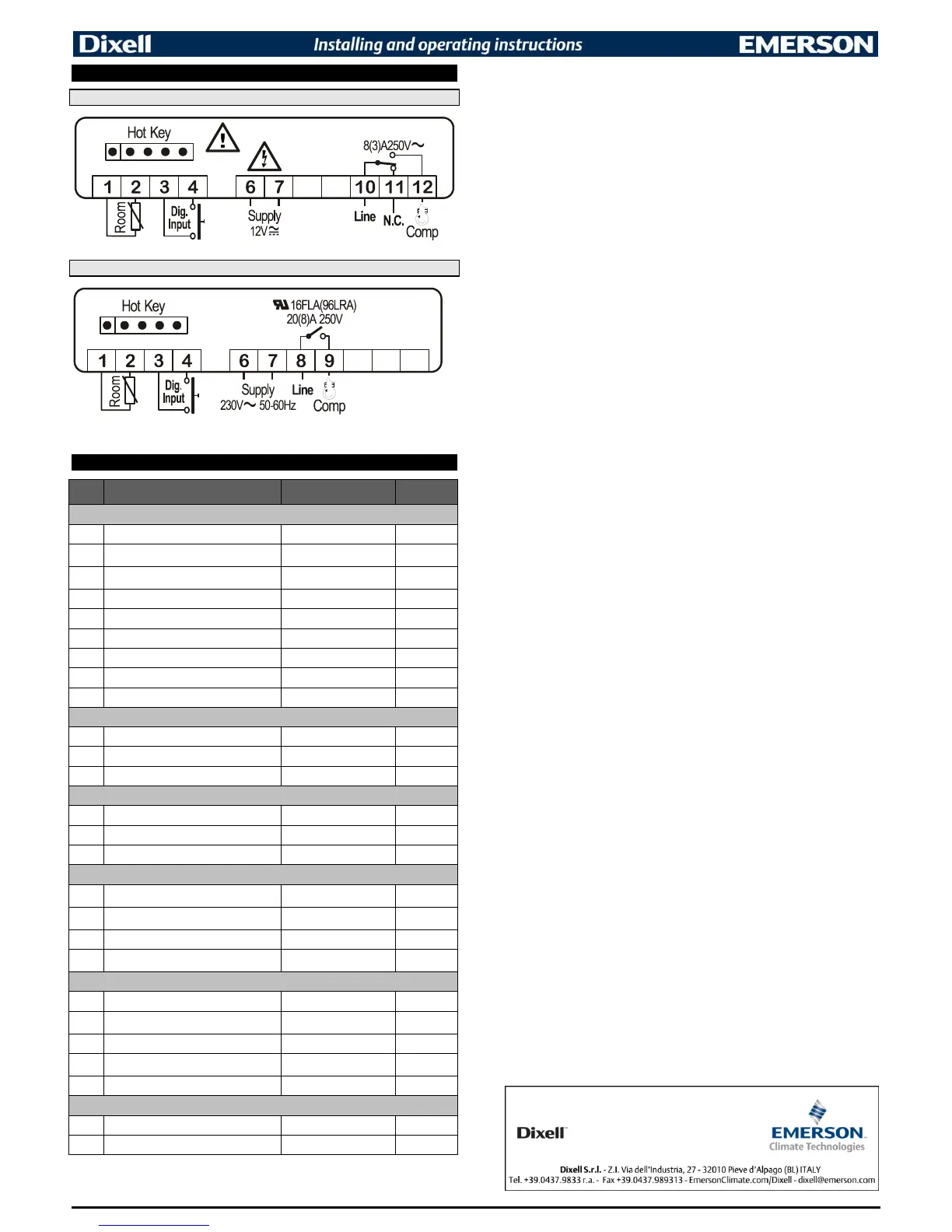

14. CONNECTIONS
14.1 XR01-02CX – 1 X 8A – 12VAC/DC
14.2 XR01-02CX – 20A OR 8A -- 110VAC OR 230VAC
NOTE: The compressor relay is 20(8)A or 8(3)A depending on the model.
NOTE: 120Vac connect to 6-7.
15. DEFAULT SETTING VALUES
LAB
EL
DESCRIPTION
RANGE
DEFAULT
REGULATION
Hy
Differential
0.1 ÷ 25°C/1 ÷ 45°F
2.0°C / 4 °F
LS
Minimum Set Point
-55°C÷SET/-67°F÷SET
-55 °C /-
55°F
US
Maximum Set Point
SET÷99°C/ SET÷99°F
99 °C /
99°F
ot
First probe calibration
-9.9÷9.9°C/-17÷17°F
0.0
od
Outputs activation delay at start up
0 ÷ 99 min
0
AC
Anti-short cycle delay
0 ÷ 50 min
1
Cy
Compressor ON time faulty probe
0 ÷ 99 min
15
Cn
Compressor OFF time faulty probe
0 ÷ 99 min
30
CH
Kind of action
cL ÷ Ht
cL
DISPLAY
CF
Measurement units
°C - °F
°C / °F
rE
Resolution (only for °C)
dE – in
dE
dy
Display delay
0 ÷ 15 min
0
DEFROST (Only XR02CX)
id
Interval between defrost cycles
0 ÷ 99 hours
6
Md
Maximum length for defrost
0 ÷ 99 min.
30
dF
Display during defrost
rt – in – SP – dF
it
ALARMS
AU
Maximum temperature alarm
ALL÷99°C / ALL÷99°F
99 °C / 99
°F
AL
Minimum temperature alarm
-55°C÷ALU/-67°F÷ALU
-55 °C / -55
°F
Ad
Temperature alarm delay
0 ÷ 99 min
15
dA
Exclusion of temperature alarm at
startup
0 ÷ 99 min
90
DIGITAL INPUT
iP
Digital input polarity
cL – oP
cL
iF
Digital input configuration
EA – bA – do – dF – Au
– Hc
EA
di
Digital input delay
0 ÷ 99 min
5
dC
Compressor and fan status when open
door
no /Fn / cP / Fc
no
rd
Regulation with door open
n – Y
y
OTHER
Pt
Parameter code table
Read Only
- - -
rL
Firmware release
Read Only
- - -
