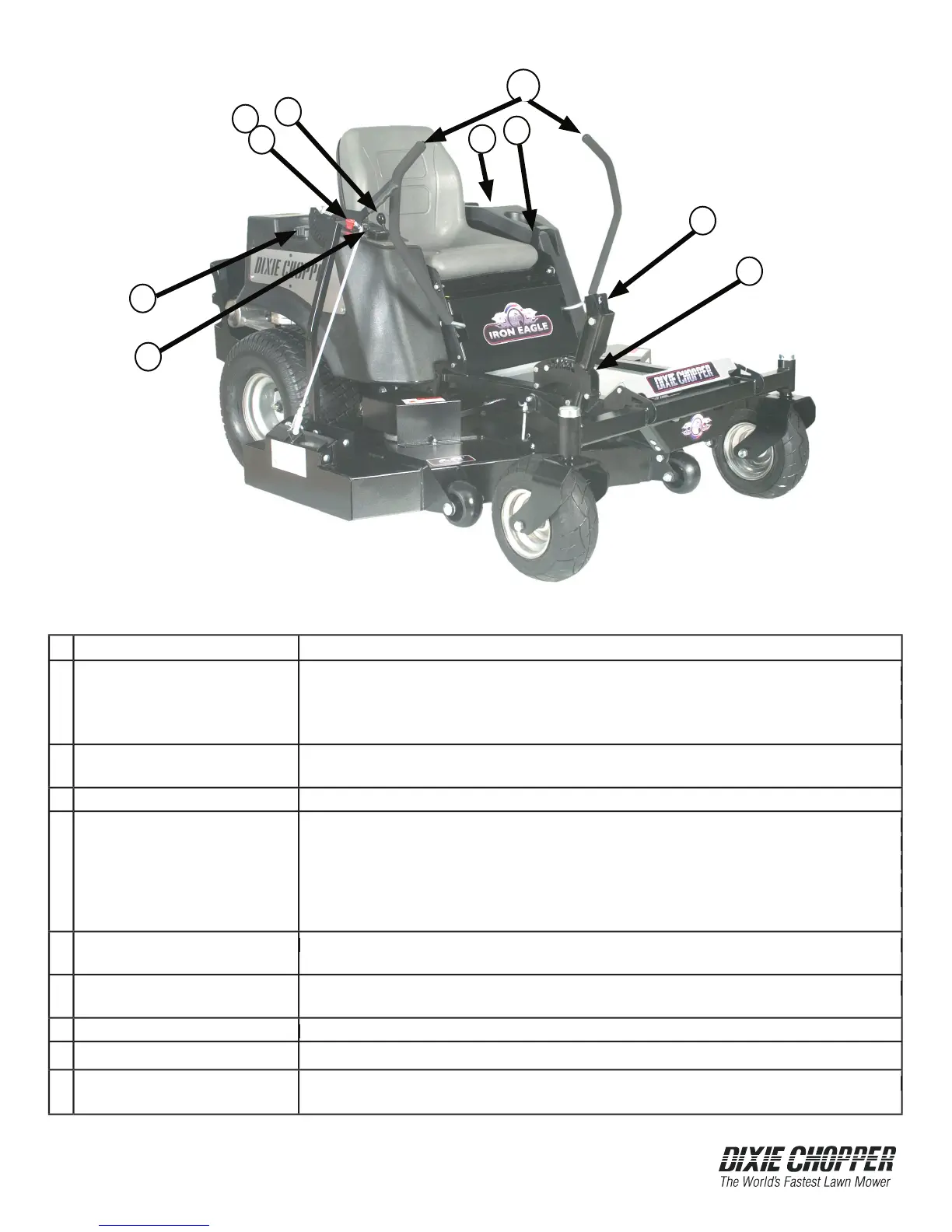

Control and Indicators
Control/Indicator Name
Control/Indicator Description
1.
IGNITION SWITCH
Controls electrical power to the mower. Switch has three positions: OFF--RUN--START.
Controls electrical power to the mower. Switch has three positions: OFF--RUN--START.
In OFF position, no power fl ows to the mower electrical components. In RUN position,
In OFF position, no power fl ows to the mower electrical components. In RUN position,
power fl ows to all mower electrical components. In START position, electrical power
power fl ows to all mower electrical components. In START position, electrical power
fl ows to the engine starter.
2.
DECK ENGAGING SWITCH
(PTO)
Controls operation of the mower deck blades. Pull switch up to engage the mower
Controls operation of the mower deck blades. Pull switch up to engage the mower
blades, and push it down to disengage the mower blades.
3.
FUEL CAP
Covers fi ll opening of the right fuel tank.
4.
STEERING SPEED CONTROL
LEVERS
Controls the speed and direction of the mower. Moving both levers forward causes the
Controls the speed and direction of the mower. Moving both levers forward causes the
mower to move forward and moving both levers backward causes the mower to back
mower to move forward and moving both levers backward causes the mower to back
up. Moving one lever forward will cause the mower to turn. The farther the levers are
up. Moving one lever forward will cause the mower to turn. The farther the levers are
moved forward or backward, the faster the mower will move in that direction. The levers
moved forward or backward, the faster the mower will move in that direction. The levers
may be locked in neutral position by pushing both levers outward left and right to their
may be locked in neutral position by pushing both levers outward left and right to their
respective farthest points.
5.
PARKING BRAKE LEVER
Applies the brakes to hold the mower in a stationary position. Pull the lever up to set the
Applies the brakes to hold the mower in a stationary position. Pull the lever up to set the
Applies the brakes to hold the mower in a stationary position. Pull the lever up to set the
brakes and push it down to release the brakes.
6.
CHOKE CONTROL
Causes a rich fuel/air mixture in the carburetor. Used to start a cold engine and to keep
Causes a rich fuel/air mixture in the carburetor. Used to start a cold engine and to keep
the engine running until it warms up.
7.
DECK HEIGHT STOP
A pin used to set the mower deck height.
A pin used to set the mower deck height.
8.
DECK FOOT PEDAL
Raises the mower deck when pushed with your foot.
9.
THROTTLE CONTROL
Controls engine speed. Moving the throttle all the way down sets the engine speed to
Controls engine speed. Moving the throttle all the way down sets the engine speed to
maximum. Moving the throttle all the way up sets the engine speed to idle.
1
2
3
3
4
5
6
7
8
9
