14
Dixie Chopper • 6302 E. County Road 100 N. • Coatesville, IN • 46121 • www.dixiechopper.com

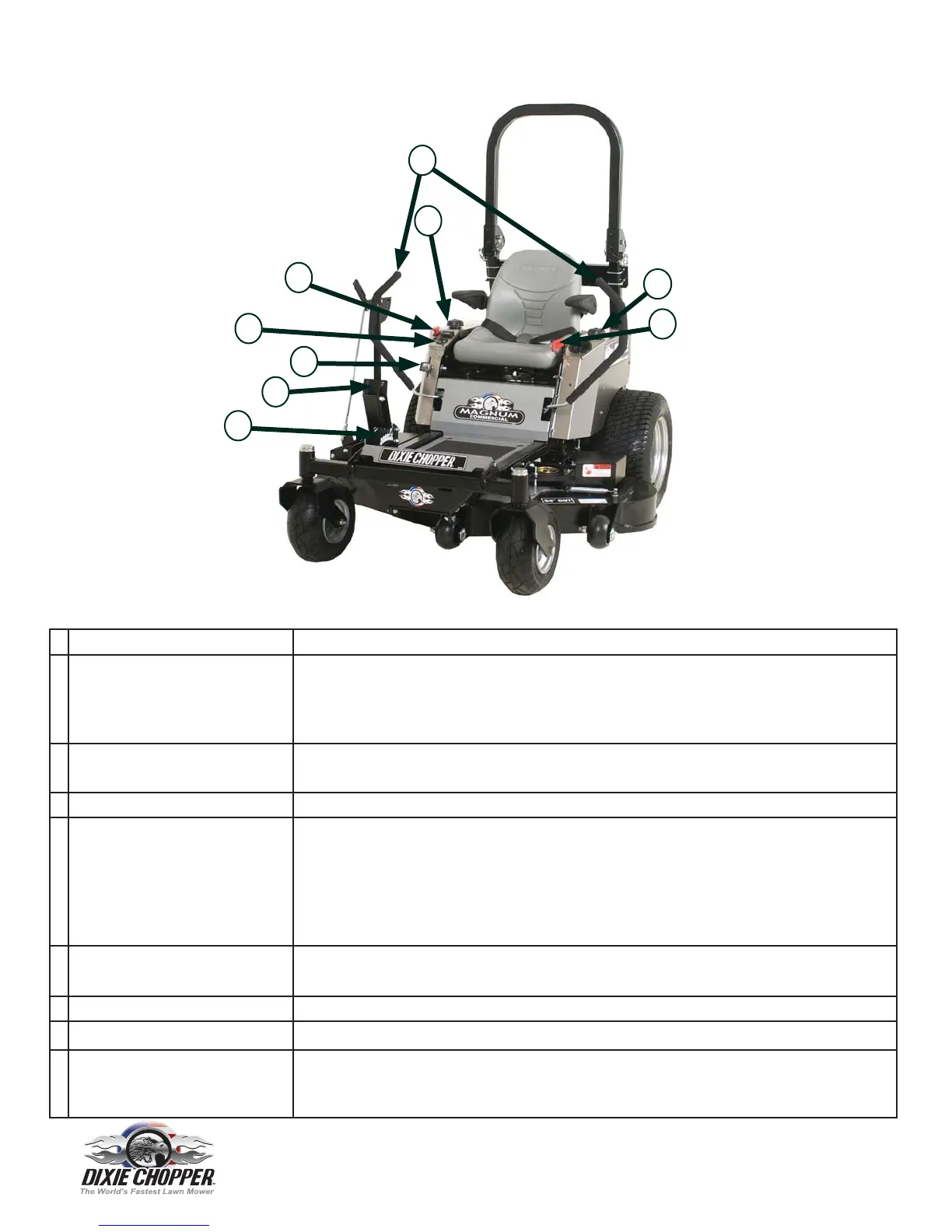

Controls and Indicators
Control/Indicator Name Control/Indicator Description
1.
IGNITION SWITCH Controls electrical power to the mower. Switch has three positions: OFF--RUN-
-START. In OFF position, no power fl ows to the mower electrical components.
In RUN position, power fl ows to all mower electrical components. In START
position, electrical power fl ows to the engine starter.
2.
DECK ENGAGING SWITCH
(PTO)
Controls operation of the mower deck blades. Pull switch up to engage the
mower blades, and push it down to disengage the mower blades.
3.
FUEL CAP Covers fi ll opening of the fuel tanks.
4.
STEERING SPEED
CONTROL LEVERS
Controls the speed and direction of the mower. Moving both levers forward
causes the mower to move forward and moving both levers backward causes
the mower to back up. Moving one lever forward will cause the mower to turn.
The farther the levers are moved forward or backward, the faster the mower will
move in that direction. The levers may be locked in neutral position by pushing
both levers outward left and right to their respective farthest points.
5.
PARKING BRAKE LEVER Applies the brake to hold the mower in a stationary position. Pull the lever up to
set the brake and push it down to release the brake.
6.
DECK HEIGHT STOP A pin used to set the mower deck height.
7.
DECK FOOT PEDAL Raises the mower deck when pushed with your foot.
8.
THROTTLE CONTROL Controls engine speed. Moving the throttle all the way down sets the engine
speed to maximum. Moving the throttle all the way up sets the engine speed to
idle.
1
2
3
3
5
6
7
8
4
