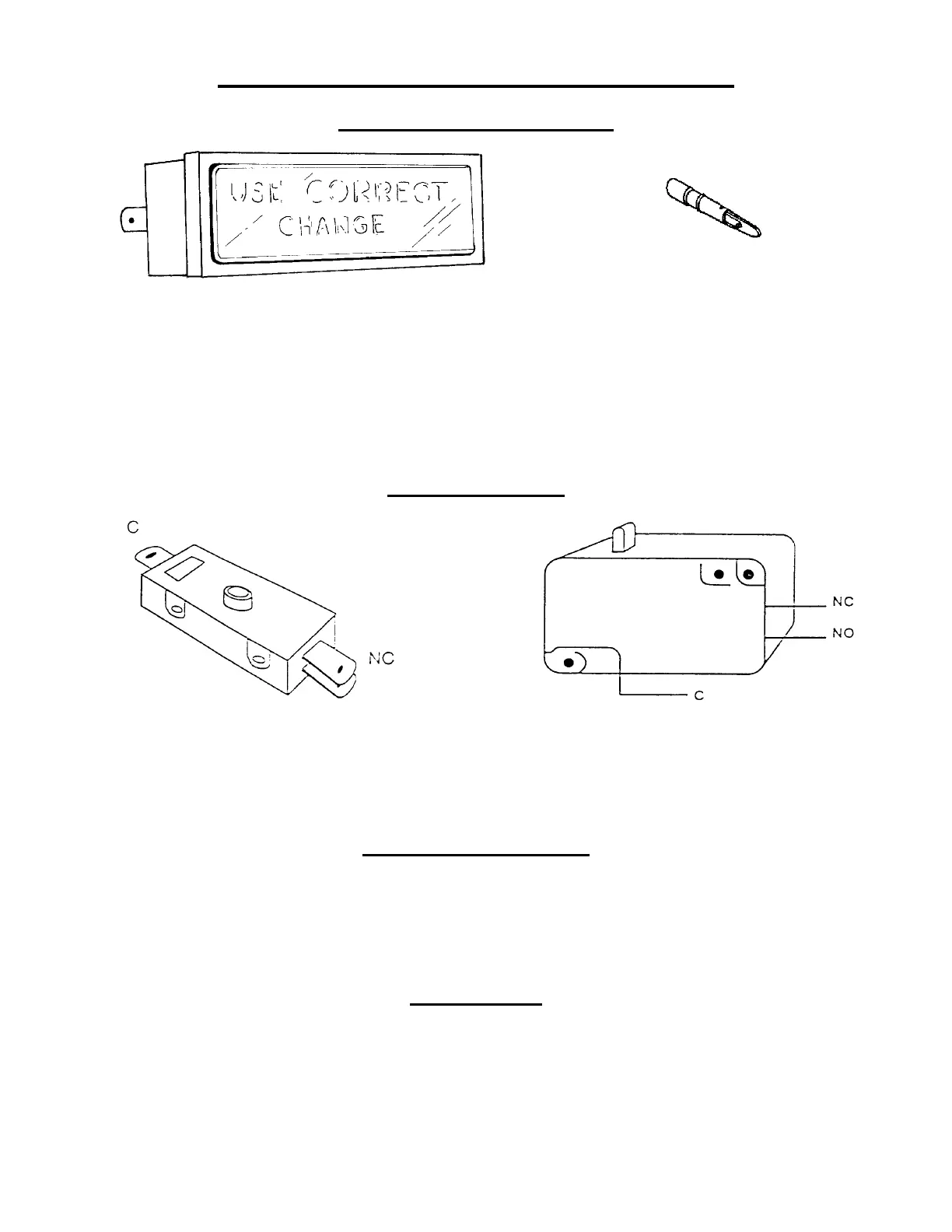

ELECTRICAL PARTS AND FUNCTIONS
CORRECT CHANGE LAMP
The Correct Change Lamp is mounted in the Coin Insert Casting.
The Correct Change Lamp is controlled by the Coin Changer and is "OFF" when coins are in the tubes of the Coin
Changer.
SELECT SWITCH
The Select Switch is located in the Select Panel behind the press button and is secured with two (2) screws.
SINGLE PRICE VENDERS
The normally open contact of the Select Switch is in the Sold-Out Lamp and Vend Motor Coil Circuits. When a
Select Button is pushed, the normally open contact closes and completes the Sold Out Lamp Circuit and the Vend
Motor Coil Circuit.
The normally closed contact of the Select Switch is in the Select Panel Circuit.
SIID VENDERS
The normally closed contact of the Select Switch is in the SIID Control Board and Vend Motor Coil Circuits. This
normally closed contact opens and the SIID Control board Circuit completes the Vend Motor Coil Circuit.
The normally open contact of the select switch has no function.
OR
O
Correct Change Lamp
904,700,18x.x1
Single Price (English)
Correct Change Lamp
804,700,54x.x1
Single Price (125 VAC)
Select Switch
804,100,51x.x1 - Single Price
804,100,76x.x1 - SIID
Select Switch
804,100,71x.x1 - Single Price
804,100,74x.x1 - SIID
